API 5L Grade L360 carbon steel pipes are provided with multiple end connections like non-Upset ends and External Upset Ends.
Types:Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form:Round, Square, Rectangular, Coil, U Tube
Product Introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product Introduction
API 5L Grade L360 Pipes and tubes can be supplied in sizes ranging from 0.405- – 80-.API 5L Pipes furnished to this specification may be as rolled, normalized, normalized and tempered, sub critically stress relieved, or sub critically age hardened or quenched and tempered.API 5L Grade L360 is standard specification for dimensions, material and technical delivery conditions of seamless and welded steel pipe, mainly used for pipelines. This is steel pipe for pipeline transportation systems in the petroleum and natural gas industries. API 5L is suitable for conveying gas, water, and oil. Size range is limited only by manufacturer-s capabilities. This is steel pipe for pipeline transportation systems in the petroleum and natural gas industries. API 5L is suitable for conveying gas, water, and oil. Size range is limited only by manufacturer-s capabilities. Our all pipe surfaces have been 100% visually inspected.


API 5L L360 PIPES SPECIFICATIONS

API 5L L360 Pipes standard technical requirements:

Parameters PSL 2
Trade Name API 5L L360
Steel grades B – X120
Dimensions 114,3 – 2032,0 mm
Pipe ends Plain (unless otherwise agreed)
Welding process All, except laser
Heat treatments (M,N or Q&T) For all grades from B through X120
Chemistry defined C/Si/Mn/P/S/V/Nb/Ti/CE2
Max % C in seamless 0,24% for N pipes, 0,18 for Q pipes, up to X65
Max % C in welded pipes 0,22% for grade BM to X56M, 0,12% for X60M to X80M
Max % P 0,025% for grade B to X80M/Q
Max % S 0,015% for grade B to X80M/Q
Carbon equivalent The maximum established for each grade
Maximum yield strength The maximum established for each grade
Maximum tensile stress The maximum established for each grade
Charpy impact test Required for all grades at a min. of 0°C/32°F
Repair of body Not allowed
Repair of weld Not allowed
Certification Mandatory as per 10.1.3

The above table is extracted from API Specification 5L, 45th Edition.
1 Our stocks are all specified in (the higher) PSL 2 grade, killed and made according to fine grain practice.
2 Carbon mass fraction (of product analysis) equal or less than 0,12%, the carbon equivalent shall be reported as CEpcm.

Note:
Annexes with specific manufacturing or service requirements
– Annex B: Qualified manufacturing procedure for PSL 2 pipes
– Annex H: Sour services PSL 2 pipe
– Annex J: Offshore services PSL 2 pipe

Technical data

WHAT IS API 5L L360 PIPES?

High Yield Seamless Pipes API 5L X52 other name is L360 PSL 2.

High Yield Seamless Pipes

(API 5L X52/ L360 PSL 2, EN 10225 G15, Norsok Y22)





Size

Schedule

Diameter

Wall Thickness

Wall Thickness

Length

Unit/Weight

Weight/Piece

(inch)

(mm)

(mm)

(in)

(mm)

(kg/mtr)

(MT)





STD/ 30

355.6

9.53

0.375

12000

81.35

0.976



XS

355.6

12.70

0.500

12000

107.41

1.289





355.6

15.90

0.626

12000

133.22

1.599

14

80

355.6

19.10

0.752

12000

158.52

1.902



100

355.6

23.83

0.938

12000

195.00

2.340





355.6

25.40

1.000

12000

206.86

2.482





355.6

38.10

1.500

6000

298.36

1.790



STD/ 30

406.4

9.53

0.375

12000

93.29

1.119



XS/ 40

406.4

12.70

0.500

12000

123.32

1.480





406.4

15.90

0.626

12000

153.14

1.838

16

60

406.4

16.66

0.656

12000

160.15

1.922



406.4

19.10

0.752

12000

182.46

2.189







80

406.4

21.44

0.844

12000

203.57

2.443





406.4

25.40

1.000

12000

238.69

2.864



100

406.4

26.19

1.031

12000

245.60

2.947



XS

457.2

12.70

0.500

12000

139.24

1.671

18

60

457.2

19.10

0.752

8000

206.39

2.477





457.2

25.40

1.000

7000

270.52

3.246


API 5L L360 PIPES GRADES AND SIZE RANGE
API 5L L360 PIPES Size Range: 1/2” NB to 36” NB
API 5L L360 PIPES Thickness: STD, XH, SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
End Connections for Line Pipes: Plain, Bevel, Screwed, Threaded
Type: Seamless / ERW / Welded / Fabricated / CDW
Form: Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
Length: Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths
End: Plain End, Beveled End, Threaded
End Protection: Plastic Caps
Outside Coating: Black Painting, Anti-Corrosion Oil, Galvanised Finish, Finish as per customer Requirements
API 5L L360 PIPES VALUE ADDED SERVICES
Draw & Expansion as per required Size & Length
Fusion Bond Epoxy
ARO
3LPE
Tar Epoxy
Heat Treatment
Bending
Galvanizing
Annealed
Sand Blasting
Machining etc.
API 5L L360 PIPES LATEST PRICE
INR 2000 – 3000 Per Ton
Please call our office for most current prices.

TYPICAL APPLICATION OF API 5L L360 PIPES
Applications: Oil & Gas, Oil Refineries, Petrochemicals, Power Generation (Nuclear/Thermal), Steel, Sugar, Boiler Equipments, Pressure Vessels and General Engineering Purposes

API 5L L360 PIPES PACKAGING & SHIPPING

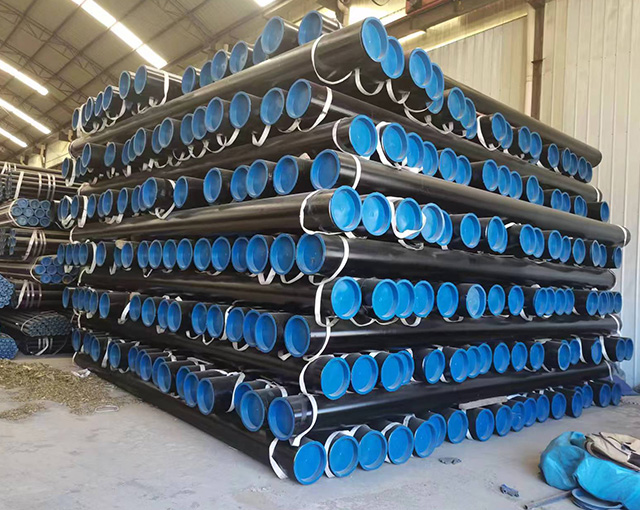

Pipes & Tubes are loose or in bundles tightened with Iron Strips. Special packings: Metal or Wooden Cases, Pallets etc.
Standard

API 5L L360 PIPES AVAILABLE SURFACE FINISH

Surface Finishes: Bare, Oiled, Mill Varnish, Galv, FBE, FBE Dual, 3LPE, 3LPP, Coal Tar, Concrete Coating and Tape Wrap.
End Finishes: Beveled, Square Cut, Threaded & Coupled.


API 5L L360 SEAMLESS STEEL PIPE CHEMICAL COMPOSITION

Grade

Chemical Composition



C

Si

Mn

P

S

V

Nb

Ti

API 5L X42

0.16

0.45

1.65

0.020

0.010

0.07

0.05

0.04

API 5L X52

0.16

0.45

1.65

0.020

0.010

0.07

0.05

0.04

API 5L X60

0.16

0.45

1.65

0.020

0.010

0.08

0.05

0.04

API 5L X65

0.16

0.45

1.65

0.020

0.010

0.09

0.05

0.06

API 5L X70

0.17

0.45

1.75

0.020

0.010

0.10

0.05

0.06



API 5L L360 SEAMLESS STEEL PIPE YIELD AND TENSILE STRENGTH

Grade

Yield Strength

Tensile Strength

Yield to Tensile

Elongation



min. (KSI)

min. (KSI)

Ratio (max)

%

API 5L X42

42

60

0.93

23

API 5L X52

52

66

0.93

21

API 5L X60

60

75

0.93

23

API 5L X65

65

77

0.93

18

API 5L X70

70

82

0.93

17
