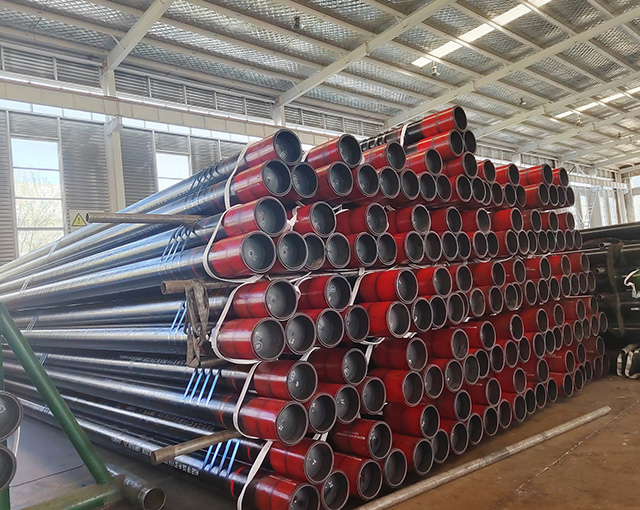

API 5CT Pipe Specification
API 5CT Pipe Specification
API 5CT Pipe Specification
API 5CT Pipe Specification
API 5CT Pipe Specification
API 5CT Pipe Specification
API 5CT Pipe Specification
API 5CT Pipe Specification

API 5CT Pipe Specification

Standard: API SPEC 5CT API 5CT pipe Size (mm): Outer Dimensions: 6.0mm – 219.0mm Wall Thickness: 1.0mm – 30 mm Length: max 12000mm Application: gas, water and oil transportation in both oil and natural gas. The main steel grade of API 5CT: API 5CT J55, API 5CT K55, API 5CT N80, API 5CT L80, API 5CT P110.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
API 5CT is a piping specification for casing or pipes in industrial natural gas pipelines and tube wells. It has different levels of specifications such as PSL1, 2 and 3. Api 5ct pipes have different carbon and chromium contents in different product specification levels, and Api 5ct pipe sizes vary in diameter, wall thickness and length. The outer diameter range is from 6mm to 219mm, the wall thickness range is from 1mm to 30mm, and the length range is up to 12000mm. Api 5ct casing is available in different steel grades, including J55, K55, N80, L80 and P110, etc. These are different mechanical performance oriented grades. Pipes also come in different connection types. Api-5ct pipe specifications include short round thread, non-thickened oil pipe, integral joint oil pipe, externally thickened oil pipe, extreme pipeline casing, etc. If it is a welded type, the weld should be heat treated to a minimum temperature of 540°C (1000°F), or a certain treatment method should be used to ensure that there is no untempered martensite structure in the weld.
Technical Data

Grade

C≤

Si≤

Mn≤

P≤

S≤

Cr≤

Ni≤

Cu≤

Mo≤

V≤

Als≤

API 5CT J55

0.34-0.39

0.20-0.35

1.25-1.50

0.020

0.015

0.15

0.20

0.20

/

/

0.020

API 5CT K55

0.34-0.39

0.20-0.35

1.25-1.50

0.020

0.015

0.15

0.20

0.20

/

/

0.020

API 5CT L80

0.15-0.22

1.00

0.25-1.00

0.020

0.010

12.0-14.0

0.20

0.20

/

/

0.020

API 5CT J P110

0.26-035

0.17-0.37

0.40-0.70

0.020

0.010

0.80-1.10

0.20

0.20

0.15-0.25

0.08

0.020



Steel Grade

Yield Strength (Mpa)

Tensile Strength (Mpa)

API 5CT J55

379-552

≥517

API 5CT K55

≥655

≥517

API 5CT N80

552-758

≥689

API 5CT L80

552-655

≥655

API 5CT P110

758-965

≥862

company advantage
gnee company specializes in the production of seamless steel pipes, seamless steel square pipes, seamless steel oval pipes, welded steel pipes, large diameter steel pipes and carbon steel plates and sheets, as well as galvanized products of all carbon steel materials, galvanized steel pipes, etc. The company produces annually The capacity is 15,000 tons of galvanized steel seamless pipes.

FAQ

1.Q.How do we trust your company?
A. We specialist in steel business for many years, authenticated by SGS,welcome to visit our factory.

2.Q.Can I visit your factory?
A.Of course you can, we welcome customers from all over the world to visit our factory.

3. Q: What is your after-sale service?
A: We provide after-sale service and offer 100% guarantee on our products.







Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
