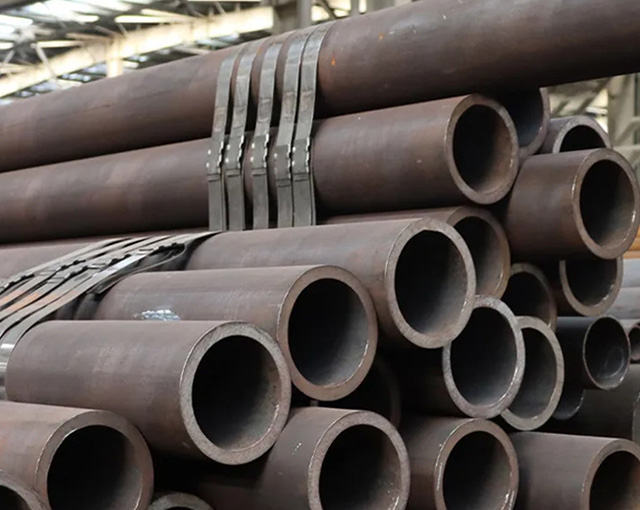

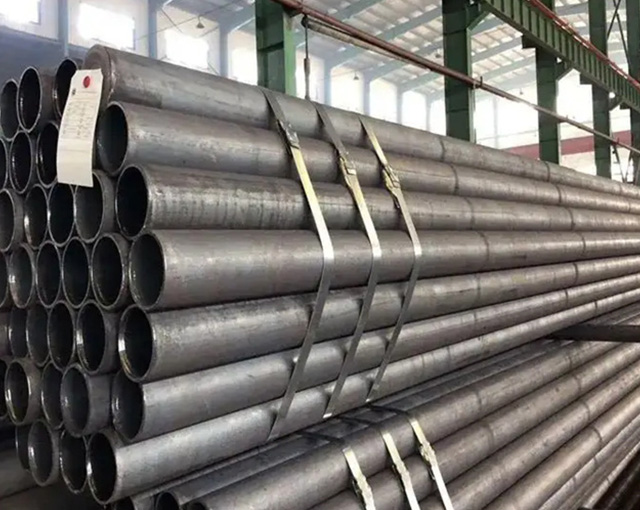

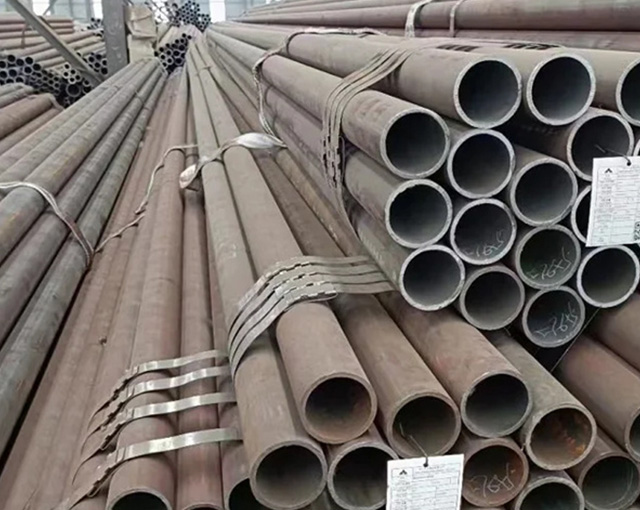

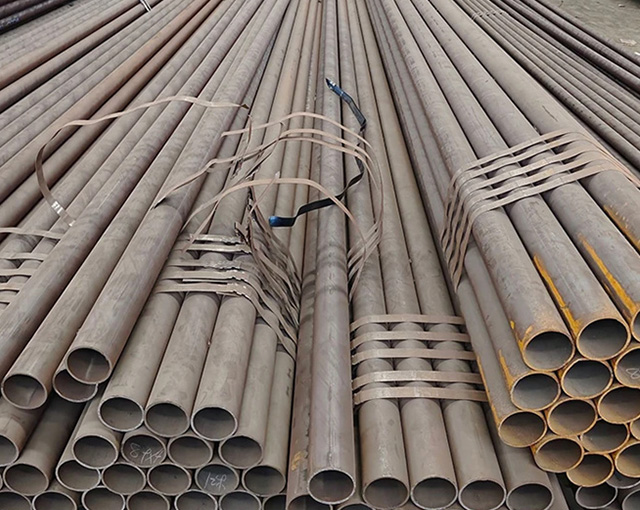

25MnG High Pressure Boiler Steel Pipe is a type of steel pipe used in high-pressure boiler applications.
standard:GB
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
SA-210C (25MnG): It is the steel grade in the ASME SA-210 standard. It is a small-diameter carbon-manganese steel pipe for boilers and superheaters, and a pearlite-type heat-strength steel.
The chemical composition of 25MnG boiler steel pipe is simple. Except for the higher carbon and manganese content, the rest is similar to 20G. Therefore, its yield strength is about 20% higher than that of 20G, while its plasticity and toughness are equivalent to that of 20G. The steel has a simple production process and good hot and cold processing properties. Using it instead of 20G can thin the wall thickness, reduce the amount of material, and improve the heat transfer of the boiler. Its usage location and usage temperature are basically the same as those of 20G boiler tubes. It is mainly used for water-cooled walls, economizers, low-temperature superheaters and other components with operating temperatures below 500°C.
Technical Data

Chemical composition of GB 5310 25MnG high pressure tubes

Steel Grade C Si Mn S P
25MnG 0.22-0.27 0.17-0.37 0.70-1.00 0.015

0.025


Mechanical properties of GB 5310 25MnG high pressure  boiler pipe

Grade Tensile strength Yield point(Mpa) Elongation(%) Impact(J)
(Mpa) not less than not less than not less than
25MnG 485-640 275 20/18 40/27


25MnG steel pipe length
1Usual length: The usual length of steel pipe is 4000 mm~12 000 mmo
*After negotiation between the supplier and the buyer, and specified in the contract, steel pipes with a length greater than 12000 mm or shorter than 4000 mm but not less than 3000 mm can be delivered: The quantity of steel pipes with a length shorter than 4000 mm but not less than 3000 mm shall not be Exceeding 5% of the total delivery quantity of the batch of steel.

2 Fixed length and multiple length: According to the requirements of the buyer, after negotiation between the supplier and the buyer, and stated in the contract, the steel pipe can be delivered in fixed length or double length. . The allowable deviation of the fixed length of the steel pipe is +1mm, and a notch allowance should be left for each double length as follows: a) When D<159 mm, the notch allowance is 5mm~10mm; b)D>159mm When, the incision allowance is 10 mm~15mm.

25MnG carbon steel pipe hydraulic test
Steel pipes should be hydraulically tested one by one. The hydraulic test pressure is calculated according to the formula. The maximum test pressure is 20 MPa. Under the test pressure, the pressure stabilization time should be no less than 10 s, and the steel pipe should not leak.

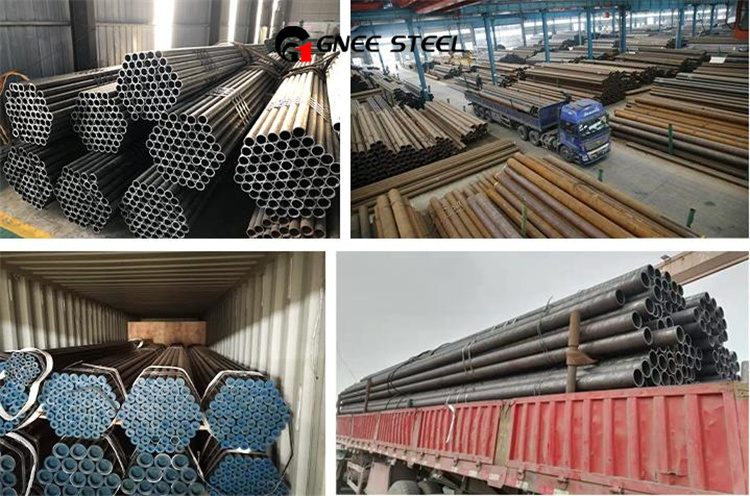

company advantage
Gnee company covers an area of 35,000 square meters and has more than 200 employees, including 80 technical staff. We have established an effective and complete quality control and assurance system. The company has also obtained ISO9001 quality system certification.

FAQ
1.Q.What's your advantage?
A.Honest business with competitive price and professional service on export process.
2. Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free. we can produce by your samples ortechnical drawings.
3.Q.Do you have a quality control system?
A.Yes, we have our own quality control laboratory. Third party testing service is also available.
