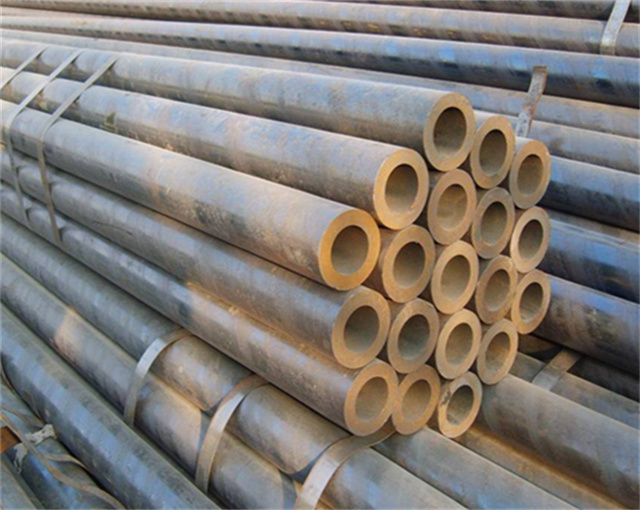

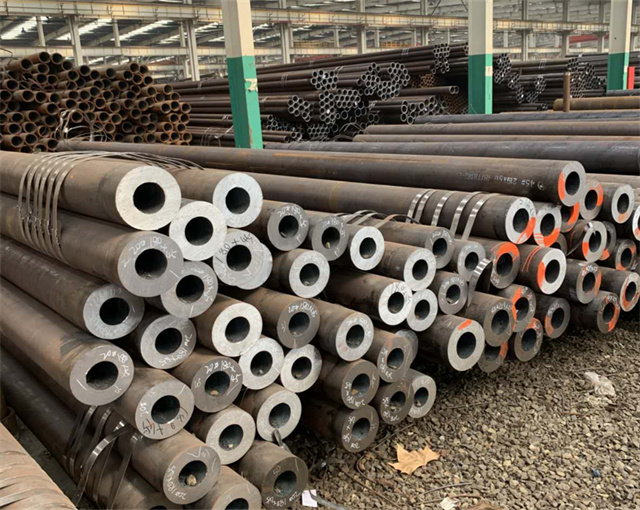

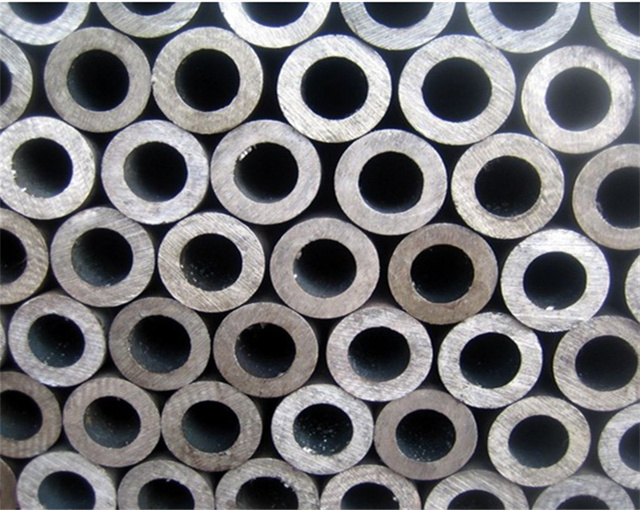

ASTM A519 STEEL PIPE

The ASTM A519 steel tube specification covers both hot-finished and cold-finished mechanical tubing in sizes up to 12-3/4” O.D. A519 is available in round, square, and rectangular profiles, and in special sections.
Out Diameter:13.7mm-914mm
Wall Thickness:2mm-120mm
Product Introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
Product Introduction
Keywords(pipe type):Alloy Pipe, Alloy Tube, Alloy Steel Pipe, Alloy Steel Tube, High Pressure Steel Pipe, Boiler Steel Pipe, ASTM A519
Size:Out Diameter:13.7mm-914mm ;Wall Thickness:2mm-120mm; Length:3m-12m
Standard & Grade:ASTM A519 American society for Testing Material
Ends:black Painting End, Beveled End, Thread End,cap end
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Packing:in bulding +woven bag+plastic cap on both end
Usage:using for machining,natural gas pipeline etc
Description
This pipe covers for several grades of carbon and alloy steel mechanical tubing, either hot-finished or cold-finished. The steel used in the mechanical tubing may be cast in ingots or may be strand cast. When steel of different grades is sequentially strand cast, identification of the resultant transition material is required. The seamless tubing is a tubular product made without a welded seam. It is usually manufactured by hot working steel, and if necessary, by subsequently cold finishing the hot-worked tubular product to produce the desired shape, dimensions and properties.
The tubes shall be furnished in the following shapes: round, square, rectangular and special sections. Heat analysis shall be made to determine the percentages of the elements specified. If secondary melting processes are used, the heat analysis shall be obtained from one remelted ingot or the product of one remelted ingot of each primary melt. The tubing shall be coated with a film of oil before shaping to retard rust when specified
1. Out Diameter: 13.7mm-914mm
2. Wall Thickness: 2mm-120mm
3. Length: 3m-12m
4. Producing Standard: American ASME B36.10M, ASTM, API 5L, API 5CTJapanese JISGerman DINChinese GBBS standard
5. Main Material:(Carbon Steel & Low Alloy steel) ASTM A53, A106, A210, A252, A333 etc;X42, X46, X52, X60, X65, X70 etc;JIS STPG42, G3454, G3456 etc;German St37, St42, St45, St52, DIN1626, DIN17175Chinese 20#, Q345, 16Mn etc
6. Special specifications: Available according to customer’s requirements and quantity.
7. End Shape: Beveled end , plain end, varnished, or adding plastic caps to protect the two ends as per customer’s requirements
8. Surface treatment: Painted, Oiled, galvanized, phosphate etc
9. Usage: Widely used in the mechanical treatment field, petrochemical industry, transport and construction fieldOrdinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etcCan be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc
10. Certificates: ISO,CE, API 5L certificate
11. Third party inspection: Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products.
Technical Data

Chemical Requirements for A519 Seamless Steel Tubing

For Low-Carbon Steels

Chemical Requirements of Low-Carbon Steel

Grade Designation Chemical Composition Limits, %
Carbon Manganese Phosphorus, max Sulfur, max
MT 1010 0.05-0.15 0.30-0.60 0.040 0.050
MT 1015 0.10-0.20 0.30-0.60 0.040 0.050
MT X 1015 0.10-0.20 0.60-0.90 0.040 0.050
MT 1020 0.15-0.25 0.30-0.60 0.040 0.050
MT X 1020 0.15-0.25 0.70-1.00 0.040 0.050


Chemical Requirements of Other Carbon Steels

Grade Designation Chemical Composition Limits, %
Carbon Manganese Phosphorus, max Sulfur, max
1008 0.10 max 0.30-0.50 0.040 0.050
1010 0.08-0.13 0.30-0.60 0.050
1012 0.10-0.15 0.30-0.60 0.040 0.050
1015 0.13-0.15 0.30-0.60 0.040 0.050
1016 0.13-0.18 0.60-0.90 0.040 0.050
1017 0.15-0.20 0.30-0.60 0.040 0.050
1018 0.15-0.20 0.60-0.90 0.040 0.050
1019 0.15-0.20 0.70-1.00 0.040 0.050
1020 0.18-0.23 0.30-0.60 0.040 0.050
1021 0.18-0.23 0.60-0.90 0.040 0.050
1022 0.18-0.23 0.70-1.00 0.040 0.050
1025 0.22-0.28 0.30-0.60 0.040 0.050
1026 0.22-0.28 0.60-0.90 0.040 0.050
1030 0.28-0.34 0.60-0.90 0.040 0.050
1035 0.32-0.38 0.60-0.90 0.040 0.050
1040 0.37-0.44 0.60-0.90 0.040 0.050
1045 0.43-0.50 0.60-0.90 0.040 0.050
1050 0.48-0.55 0.60-0.90 0.040 0.050
1518 0.15-0.21 1.10-1.40 0.040 0.050
1524 0.19-0.25 1.35-1.65 0.040 0.050
1541 0.36-0.44 1.35-1.65 0.040 0.050


Chemical Requirements for Alloy Steels

Grade Designation Chemical Composition Limits, %
Carbon Manganese Phosphorus, max Sulfur, max Silicon Nickel Chromium Molybdenum
1330 0.28-0.33 1.60-1.90 0.040 0.040 0.15-0.35 - - -
1335 0.33-0.38 1.60-1.90 0.040 0.040 0.15-0.35 - - -
1340 0.38-0.43 1.60-1.90 0.040 0.040 0.15-0.35 - - -
1345 0.43-0.48 1.60-1.90 0.040 0.040 0.15-0.35 - - -
3140 0.38-0.43 0.70-0.90 0.040 0.040 0.15-0.35 1.10-1.40 0.55-0.75 -
E3310 0.08-0.13 0.45-0.60 0.025 0.025 0.15-0.35 3.25-3.75 1.40-1.75 -
4012 0.09-0.14 0.75-1.00 0.040 0.040 0.15-0.35 - - 0.15-0.25
4023 0.20-0.25 0.70-0.90 0.040 0.040 0.15-0.35 - - 0.20-0.30
4024 0.20-0.25 0.70-0.90 0.040 0.035-0.050 0.15-0.35 - - 0.20-0.30
4027 0.25-0.30 0.70-0.90 0.040 0.040 0.15-0.35 - - 0.20-0.30
4028 0.25-0.30 0.70-0.90 0.040 0.035-0.050 0.15-0.35 - - 0.20-0.30
4037 0.35-0.40 0.70-0.90 0.040 0.040 0.15-0.35 - - 0.20-0.30
4042 0.40-0.45 0.70-0.90 0.040 0.040 0.15-0.35 - - 0.20-0.30
4047 0.45-0.50 0.70-0.90 0.040 0.040 0.15-0.35 - - 0.20-0.30
4063 0.60-0.67 0.75-1.00 0.040 0.040 0.15-0.35 - - 0.20-0.30
4118 0.18-0.23 0.70-0.90 0.040 0.040 0.15-0.35 - 0.40-0.60 0.08-0.15
4130 0.28-0.33 0.40-0.60 0.040 0.040 0.15-0.35 - 0.80-1.10 0.15-0.25
4135 0.33-0.38 0.70-0.90 0.040 0.040 0.15-0.35 - 0.80-1.10 0.15-0.25
4137 0.35-0.40 0.70-0.90 0.040 0.040 0.15-0.35 - 0.80-1.10 0.15-0.25
4140 0.38-0.43 0.75-1.00 0.040 0.040 0.15-0.35 - 0.80-1.10 0.15-0.25
4142 0.40-0.45 0.75-1.00 0.040 0.040 0.15-0.35 - 0.80-1.10 0.15-0.25
4145 0.43-0.48 0.75-1.00 0.040 0.040 0.15-0.35 - 0.80-1.10 0.15-0.25
4147 0.45-0.50 0.75-1.00 0.040 0.040 0.15-0.35 - 0.80-1.10 0.15-0.25
4150 0.48-0.53 0.75-1.00 0.040 0.040 0.15-0.35 - 0.80-1.10 0.15-0.25
4320 0.17-0.22 0.45-0.65 0.040 0.040 0.15-0.35 1.65-2.00 0.40-0.60 0.20-0.30
4337 0.35-0.40 0.60-0.80 0.040 0.040 0.15-0.35 1.65-2.00 0.70-0.90 0.20-0.30
E4337 0.35-0.40 0.65-0.85 0.025 0.025 0.15-0.35 1.65-2.00 0.70-0.90 0.20-0.30
4340 0.38-0.43 0.60-0.80 0.040 0.040 0.15-0.35 1.65-2.00 0.70-0.90 0.20-0.30
E4340 0.38-0.43 0.65-0.85 0.025 0.025 0.15-0.35 1.65-2.00 0.70-0.90 0.20-0.30
4422 0.20-0.25 0.70-0.90 0.040 0.040 0.15-0.35 - - 0.35-0.45
4427 0.24-0.29 0.70-0.90 0.040 0.040 0.15-0.35 - - 0.35-0.45
4520 0.18-0.23 0.45-0.65 0.040 0.040 0.15-0.35 - - 0.45-0.60
4615 0.13-0.18 0.45-0.65 0.040 0.040 0.15-0.35 1.65-2.00 - 0.20-0.30
4617 0.15-0.20 0.45-0.65 0.040 0.040 0.15-0.35 1.65-2.00 - 0.20-0.30
4620 0.17-0.22 0.45-0.65 0.040 0.040 0.15-0.35 1.65-2.00 - 0.20-0.30
4621 0.18-0.23 0.70-0.90 0.040 0.040 0.15-0.35 1.65-2.00 - 0.20-0.30
4718 0.16-0.21 0.70-0.90 0.040 0.040 0.15-0.35 0.90-1.20 0.35-0.55 0.30-0.40
4720 0.17-0.22 0.50-0.70 0.040 0.040 0.15-0.35 0.90-1.20 0.35-0.55 0.15-0.25
4815 0.13-0.18 0.40-0.60 0.040 0.040 0.15-0.35 3.25-3.75 - 0.20-0.30
4817 0.15-0.20 0.40-0.60 0.040 0.040 0.15-0.35 3.25-3.75 - 0.20-0.30
4820 0.18-0.23 0.50-0.70 0.040 0.040 0.15-0.35 3.25-3.75 - 0.20-0.30
5015 0.12-0.17 0.30-0.50 0.040 0.040 0.15-0.35 - 0.30-0.50 -
5046 0.43-0.50 0.75-1.00 0.040 0.040 0.15-0.35 - 0.20-0.35 -
5115 0.13-0.18 0.70-0.90 0.040 0.040 0.15-0.35 - 0.70-0.90 -
5120 0.17-0.22 0.70-0.90 0.040 0.040 0.15-0.35 - 0.70-0.90 -
5130 0.28-0.33 0.70-0.90 0.040 0.040 0.15-0.35 - 0.80-1.10 -
5132 0.30-0.35 0.60-0.80 0.040 0.040 0.15-0.35 - 0.75-1.00 -
5135 0.33-0.38 0.60-0.80 0.040 0.040 0.15-0.35 - 0.70-0.90 -
5140 0.38-0.43 0.70-0.90 0.040 0.040 0.15-0.35 - 0.70-0.90 -
5145 0.43-0.48 0.70-0.90 0.040 0.040 0.15-0.35 - 0.70-0.90 -
5147 0.45-0.52 0.70-0.95 0.040 0.040 0.15-0.35 - 0.85-1.15 -
5150 0.48-0.53 0.70-0.90 0.040 0.040 0.15-0.35 - 0.70-0.90 -
5155 0.50-0.60 0.70-0.90 0.040 0.040 0.15-0.35 - 0.70-0.90 -
5160 0.55-0.65 0.75-1.00 0.040 0.040 0.15-0.35 - 0.70-0.90 -
E50100 0.95-1.10 0.25-0.45 0.025 0.025 0.15-0.35 - 0.40-0.60 -
E51100 0.95-1.10 0.25-0.45 0.025 0.025 0.15-0.35 - 0.90-1.15 -
E52100 0.95-1.10 0.25-0.45 0.025 0.025 0.15-0.35 - 1.30-1.60 -
                Vanadium
6118 0.16-0.21 0.50-0.70 0.040 0.040 0.15-0.35 - 0.50-0.70 0.10-0.15
6120 0.17-0.22 0.70-0.90 0.040 0.040   - 0.70-0.90 0.10
                min
6150 0.48-0.53 0.48-0.53 0.040 0.040   - 0.80-1.10 0.15
                min
            Aluminum   Molybdenum
E7140 0.38-0.43 0.50-0.70 0.025 0.025 0.15-0.40 0.95-1.30 1.40-1.80 0.30-0.40
            Nickel
8115 0.13-0.18 0.70-0.90 0.040 0.040 0.15-0.35 0.20-0.40 0.30-0.50 0.08-0.15
8615 0.13-0.18 0.70-0.90 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8617 0.15-0.20 0.70-0.90 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8620 0.18-0.23 0.70-0.90 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8622 0.20-0.25 0.70-0.90 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8625 0.23-0.28 0.70-0.90 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8627 0.25-0.30 0.70-0.90 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8630 0.28-0.33 0.70-0.90 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8637 0.35-0.40 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8640 0.38-0.43 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8642 0.40-0.45 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8645 0.43-0.48 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8650 0.48-0.53 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8655 0.50-0.60 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8660 0.55-0.65 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
8720 0.18-0.23 0.70-0.90 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.20-0.30
8735 0.33-0.38 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.20-0.30
8740 0.38-0.43 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.20-0.30
8742 0.40-0.45 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.20-0.30
8822 0.20-0.25 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.20-0.30
9255 0.50-0.60 0.70-0.95 0.040 0.040 1.80-2.20 - - -
9260 0.55-0.65 0.70-1.00 0.040 0.040 1.80-2.20 - - -
9262 0.55-0.65 0.75-1.00 0.040 0.040 1.80-2.20 - 0.25-0.40 -
E9310 0.08-0.13 0.45-0.65 0.025 0.025 0.15-0.35 3.00-3.50 1.00-1.40 0.08-0.15
9840 0.38-0.43 0.70-0.90 0.040 0.040 0.15-0.35 0.85-1.15 0.70-0.90 0.20-0.30
9850 0.48-0.53 0.70-0.90 0.040 0.040 0.15-0.35 0.85-1.15 0.70-0.90 0.20-0.30
50B40 0.38-0.42 0.75-1.00 0.040 0.040 0.15-0.35 - 0.40-0.60 -
50B44 0.43-0.48 0.75-1.00 0.040 0.040 0.15-0.35 - 0.40-0.60 -
50B46 0.43-0.50 0.75-1.00 0.040 0.040 0.15-0.35 - 0.20-0.35 -
50B50 0.48-0.53 0.74-1.00 0.040 0.040 0.15-0.35 - 0.40-0.60 -
50B60 0.55-0.65 0.75-1.00 0.040 0.040 0.15-0.35 - 0.40-0.60 -
51B60 0.55-0.65 0.75-1.00 0.040 0.040 0.15-0.35 - 0.70-0.90 -
81B45 0.43-0.48 0.75-1.00 0.040 0.040 0.15-0.35 0.20-0.40 0.35-0.55 0.08-0.15
86B45 0.43-0.48 0.75-1.00 0.040 0.040 0.15-0.35 0.40-0.70 0.40-0.60 0.15-0.25
94B15 0.13-0.18 0.75-1.00 0.040 0.040 0.15-0.35 0.30-0.60 0.30-0.50 0.08-0.15
94B17 0.15-0.20 0.75-1.00 0.040 0.040 0.15-0.35 0.30-0.60 0.30-0.50 0.08-0.15
94B30 0.28-0.33 0.75-1.00 0.040 0.040 0.15-0.35 0.30-0.60 0.30-0.50 0.08-0.15
94B40 0.38-0.43 0.75-1.00 0.040 0.040 0.15-0.35 0.30-0.60 0.30-0.50 0.08-0.15


Chemical Requirements of Resulfurized and/or Rephosphorized, Carbon Steels

Grade Designation Chemical Composition Limits, %
Carbon Manganese Phosphorous Sulfur Lead
1118 0.14-0.20 1.30-1.60 0.040 max 0.08-0.13
11L18 0.14-0.20 1.30-1.60 0.040 max 0.08-0.13 0.15-.035
1132 0.27-0.34 1.35-1.65 0.040 max 0.08-0.13
1137 0.32-0.39 1.35-1.65 0.040 max 0.08-0.13
1141 0.37-0.45 1.35-1.65 0.040 max 0.08-0.13
1144 0.40-0.48 1.35-1.65 0.040 max 0.24-0.33
1213 0.13 max 0.70-1.10 0.07-0.12 0.24-0.33
12L14 0.15 max 0.85-1.15 0.04-0.09 0.26-0.35 0.15-.035
1215 0.09 max 0.75-1.05 0.04-0.09 0.26-0.35

Outside Diameter Tolerances for Round Hot-Finished Tubing

Outside Diameter Size Range,
in.(mm)
Outside Diameter Tolerance, in. (mm)
Over Under
Up to 2.999 (76.17) 0.020 (0.51) 0.020 (0.51)
3.000-4.499 (76.20-114.27) 0.025 (0.64) 0.025 (0.64)
4.500-5.99 (114.30-152.37) 0.031 (0.79) 0.031 (0.79)
6.000-7.499 (152.40-190.47) 0.037 (0.94) 0.037 (0.94)
7.500-8.999 (190.50-228) 0.045 (1.14) 0.045 (1.14)
9.000-10.750 (228.60-273.05) 0.050 (1.27) 0.050 (1.27)

Outside and Inside Diameter Tolerances for Round Cold-Worked Tubing

Outside Diameter Size Range, in. Thermal Treatment after Final Cold Work Producing Size
Wall Thickness as Percent of Outside Diameter None, or not exceeding 1100°F Nominal Temperature Heated Above 1100°F Nominal Temperature Without Accelerated Cooling Quenched and Tempered
OD, in. ID, in. OD, in. ID, in. OD, in. ID, in.
Over Under Over Under Over Under Over Under Over Under Over Under
Up to 0.499 all 0.004 0.000 -- -- 0.005 0.002 -- -- 0.010 0.010 0.010 0.010
0.500 - 1,699 all 0.005 0.000 0.000 0.005 0.007 0.002 0.002 0.007 0.015 0.015 0.015 0.015
1,700 - 2,099 all 0.006 0.000 0.000 0.006 0.006 0.005 0.005 0.006 0.020 0.020 0.020 0.020
2,100 - 2,499 all 0.007 0.000 0.000 0.007 0.008 0.005 0.005 0.008 0.023 0.023 0.023 0.023
2,500 - 2,899 all 0.008 0.000 0.000 0.008 0.009 0.005 0.005 0.009 0.025 0.025 0.025 0.025
2,900 - 3,299 all 0.009 0.000 0.000 0.009 0.011 0.005 0.005 0.011 0.028 0.028 0.028 0.028
3,300 - 3,699 all 0.010 0.000 0.000 0.010 0.013 0.005 0.005 0.013 0.030 0.030 0.030 0.030
3,700 - 4,099 all 0.011 0.000 0.000 0.011 0.013 0.007 0.010 0.010 0.033 0.033 0.033 0.033
4,100 - 4,499 all 0.012 0.000 0.000 0.012 0.014 0.007 0.011 0.011 0.036 0.036 0.036 0.036
4,500 - 4,899 all 0.013 0.000 0.000 0.013 0.016 0.007 0.012 0.012 0.038 0.038 0.038 0.038
4,900 - 5,299 all 0.014 0.000 0.000 0.014 0.018 0.007 0.013 0.013 0.041 0.041 0.041 0.041
5,300 - 5,549 all 0.015 0.000 0.000 0.015 0.020 0.007 0.014 0.014 0.044 0.044 0.044 0.044
5,550 - 5,559 under 6 0.010 0.010 0.010 0.010 0.018 0.018 0.018 0.018
6 to 7 1/2 0.09 0.09 0.009 0.009 0.016 0.016 0.016 0.016
over 7 1/2 0.018 0.000 0.009 0.009 0.017 0.015 0.016 0.016
6,000 - 6,499 under 6 0.013 0.013 0.013 0.013 0.023 0.023 0.023 0.023
6 to 7 1/2 0.010 0.010 0.010 0.010 0.018 0.018 0.018 0.018
over 7 1/2 0.020 0.000 0.010 0.010 0.020 0.015 0.018 0.018
6,500 - 6,999 under 6 0.015 0.015 0.015 0.015 0.027 0.027 0.027 0.027
6 to 7 1/2 0.012 0.012 0.012 0.012 0.021 0.021 0.021 0.021
over 7 1/2 0.023 0.000 0.012 0.012 0.026 0.015 0.021 0.021
7,000 - 7,499 under 6 0.018 0.018 0.018 0.018 0.032 0.032 0.032 0.032
6 to 7 1/2 0.013 0.013 0.013 0.013 0.023 0.023 0.023 0.023
over 7 1/2 0.026 0.000 0.013 0.013 0.031 0.015 0.023 0.023
7,500 - 7,999 under 6 0.020 0.020 0.020 0.020 0.035 0.035 0.035 0.035
6 to 7 1/2 0.015 0.015 0.015 0.015 0.026 0.026 0.026 0.026
over 7 1/2 0.029 0.000 0.015 0.015 0.036 0.015 0.026 0.026
8,000 - 8,499 under 6 0.023 0.023 0.023 0.023 0.041 0.041 0.041 0.041
6 to 7 1/2 0.016 0.016 0.016 0.016 0.028 0.028 0.028 0.028
over 7 1/2 0.031 0.000 0.015 0.016 0.033 0.022 0.028 0.028
8,500 - 8,999 under 6 0.025 0.025 0.025 0.025 0.044 0.044 0.044 0.044
6 to 7 1/2 0.017 0.017 0.017 0.017 0.030 0.030 0.030 0.030
over 7 1/2 0.034 0.000 0.015 0.019 0.038 0.022 0.030 0.030
9,000 - 9,499 under 6 0.028 0.028 0.028 0.028 0.045 0.045 0.049 0.049
6 to 7 1/2 0.019 0.019 0.019 0.019 0.033 0.033 0.033 0.033
over 7 1/2 0.037 0.000 0.015 0.022 0.043 0.022 0.033 0.033
9,500 - 9,999 under 6 0.030 0.030 0.030 0.030 0.045 0.045 0.053 0.053
6 to 7 1/2 0.020 0.020 0.020 0.020 0.035 0.035 0.035 0.035
over 7 1/2 0.040 0.000 0.015 0.025 0.048 0.022 0.035 0.035
10,000 - 10,999 under 6 0.034 0.034 0.034 0.034 0.045 0.045 0.060 0.060
6 to 7 1/2 0.022 0.022 0.022 0.022 0.039 0.039 0.039 0.039
over 7 1/2 0.044 0.000 0.015 0.029 0.055 0.022 0.039 0.039
11,000 - 12,000 under 6 0.035 0.035 0.035 0.035 0.050 0.050 0.065 0.065
6 to 7 1/2 0.025 0.025 0.025 0.025 0.045 0.045 0.045 0.045
over 7 1/2 0.045 0.000 0.015 0.035 0.060 0.022 0.045 0.045
Standard
Mechanical Properties :
Grade State Tensile Strength Yield Strength Elongation Hardness
Ksi Mpa Ksi Mpa % (HB)
1020 HR 50 345 32 221 25 55
CW 70 483 60 414 5 75
SR 65 448 50 345 10 72
A 48 331 28 193 30 50
N 55 379 34 234 22 60
1045 HR 75 517 45 310 15 80
CW 90 621 80 552 5 90
SR 80 552 70 483 8 85
A 65 448 35 241 20 72
N 75 517 48 331 15 80
4130 HR 90 621 70 483 20 89
SR 105 724 85 586 10 95
A 75 517 55 379 30 81
N 90 621 60 414 20 89
4140 HR 120 855 90 621 15 100
SR 120 855 100 689 10 100
A 80 552 60 414 25 85
N 120 855 90 621 10 100

Painting & Coating
Painted, Oiled, galvanized, phosphate etc











Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
Related Projects
2022-01-06 14:31:40
CASING
Project subject: Industrial exhaust ducts in Romania
Product name: SSAW
Mining
2022-08-02 10:39:50
Mining
2022-02-22 16:51:18
Civil Construction
Inquiry
Copyright © GNEE(TIANJIN)MULTINATIONAL TRADE CO.,LTD All Rights Reserved.
Support: Coverweb
