ANGLE

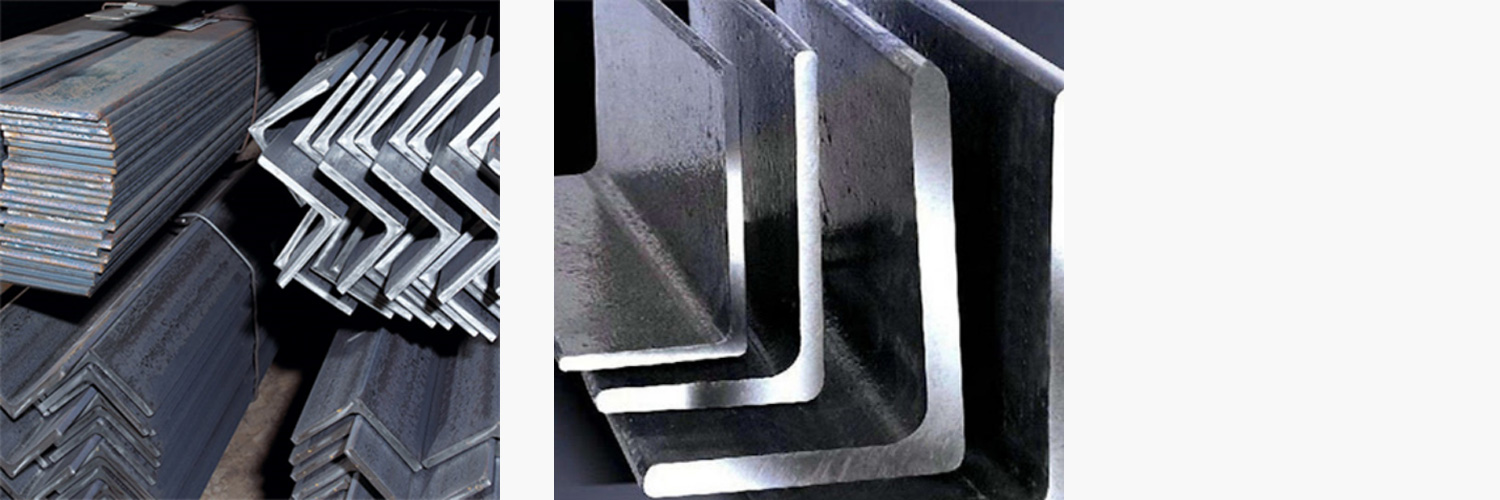

Steel Angles are the most basic type of roll-formed steel. They are formed by bending a single angle in a piece of steel.
Process Type:Hot Rolled, Electric Resistance/High Frequency Welded
End: Square Cut, Plain End, Burr Removed
Product Introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product Introduction
Specification:Width:20 - 200mm;WT: 3 - 25mm; LENGTH: 6m/12m
Standard:GB9788—1988/GB9787—1988/DIN1028/DIN1029/JIS G3101/ASTM A36
Process Type:Hot Rolled, Electric Resistance/High Frequency Welded
End: Square Cut, Plain End, Burr Removed
Surface:Bare/Painted/Light Oiled/Galvanized/Zinc Coating/Primering/Powder Coat
Marking:Stenciling/Embossing/Printing or As customer required.
Packing: Bundles with strips, Waterproof Paper Wrapped or as clients requirment.
Description

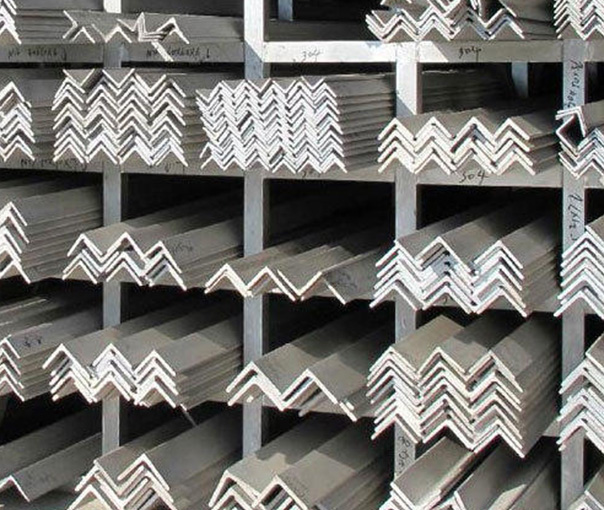

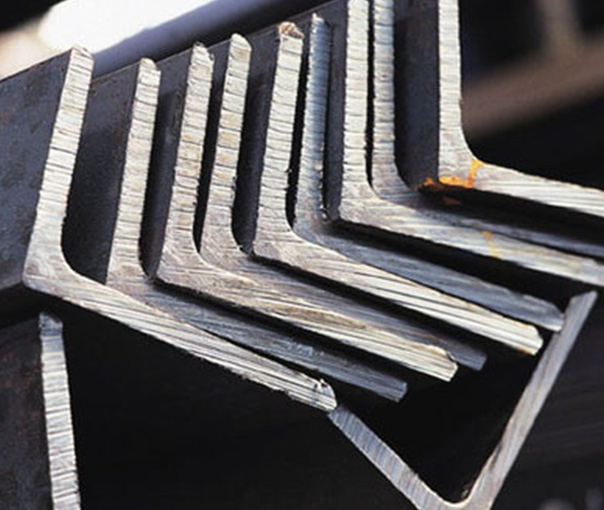

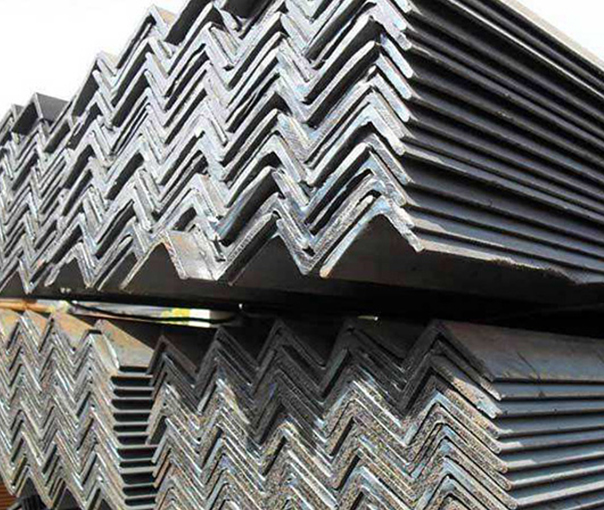

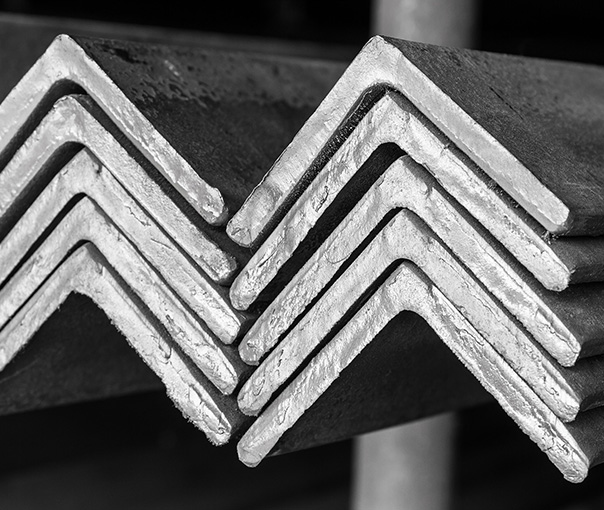

Steel Angles are the most basic type of roll-formed steel. They are formed by bending a single angle in a piece of steel.  Angle Steel is ‘L’ shaped; the most common type of Steel Angles are at a 90 degree angle. The legs of the “L” can be equal or unequal in length. Steel angles are used for various purposes in a number of industries. Framing is one of the most common uses for steel angles, but steel angles are also used for brackets, trim, reinforcements, and many other uses. The larger the steel angle, the more weight and stress it can bear.

ASTM A36 and JIS G3192 steel angle is one of the most widely used carbon steel section in the construction industry and project. It is a low-cost material and shows the required strength property compared with other steels. It is popular also for its good weld performance, formable, and easy machining. Galvanizing and other treatment increases its resistance to corrosive environment.

Steel angle bar is often used for large buildings such as factories, high-rise building, etc.), and Bridges, ships, lifting transportation machinery, equipment foundation, support.

Application:
Steel angle is used in wide range of industrial applications, including:
(1) Machinery and Equipment Frames (Braces and Corners)
(2) Transportation Frames and Corners.
(3) General structural use in construction.
(4)Support frames that require welding, riveting or bolting on bridges and buildings.
Technical data

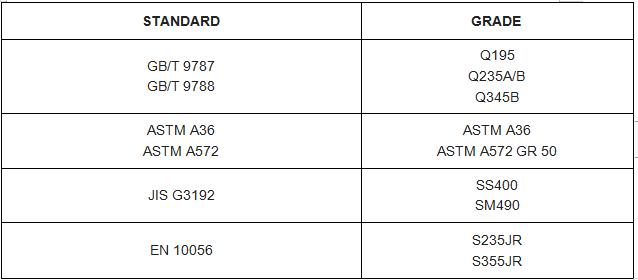

Standard

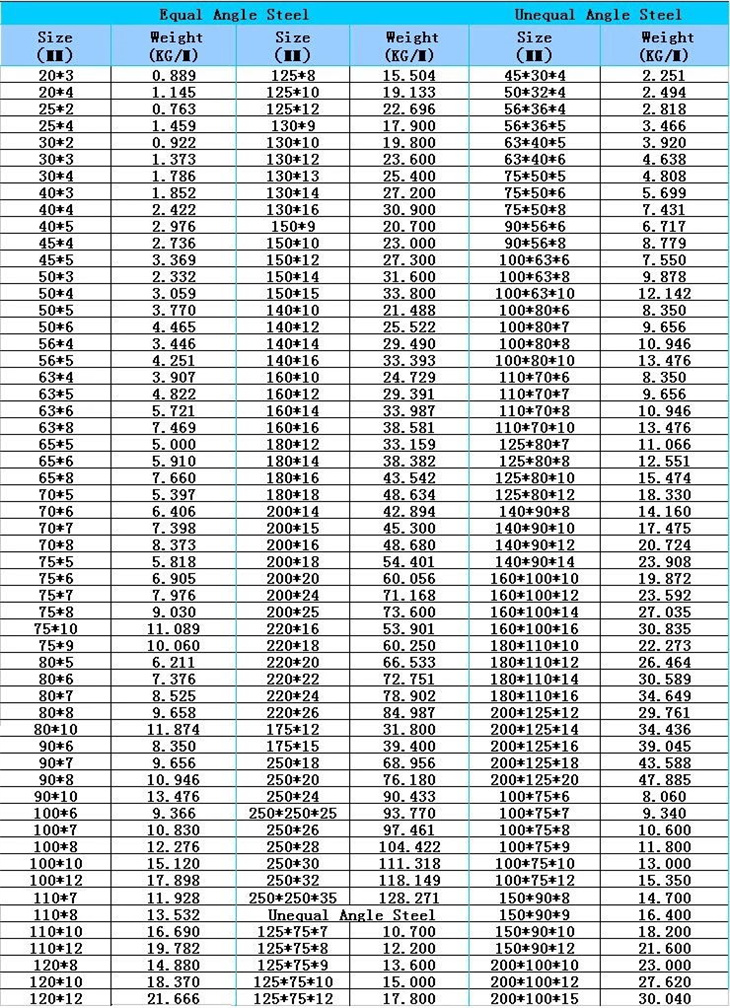

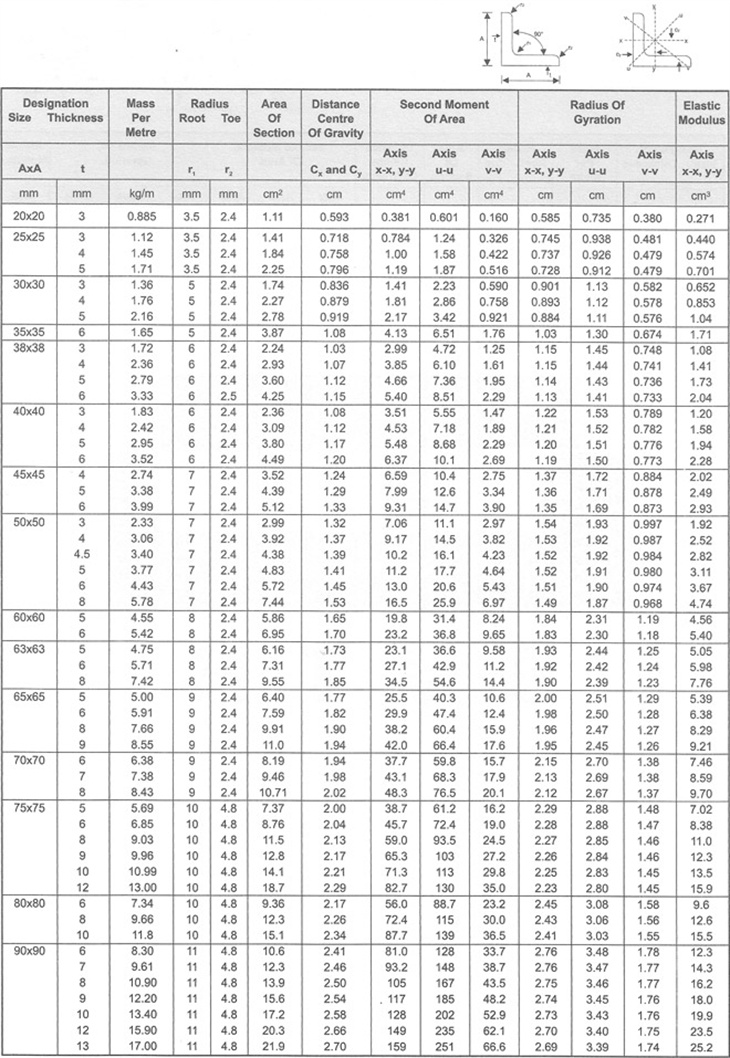

Technical


Painting&coating
Bare/Painted/Light Oiled/Galvanized/Zinc Coating/Primering/Powder Coat

Packing
Bundles with strips, Waterproof Paper Wrapped or as clients requirement.


Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
