PUP JOINT
PUP JOINT

PUP JOINT

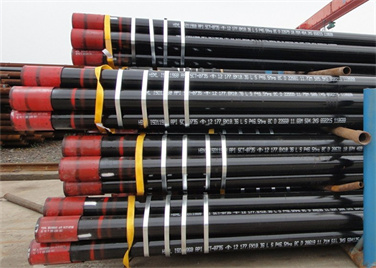

A pup joint is a casing or tubing of length shorter than Range 1 with the same thread connection, used to adjust the length of tubular strings to its exact requirement.
Standard:API 5CT / 5B
Grade:J 55, K 55, N 80-1, N80 Q, C 90, C 95, T 95, P 110, Q 125
Product introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product introduction
A pup joint is a casing or tubing of length shorter than Range 1 with the same thread connection, used to adjust the length of tubular strings to its exact requirement.
Pup Joints are manufactured from AISI 4145H or 4140H-modified alloy, heat-treated to a Brinell Hardness range of 285-341 with a Charpy “V” notch minimum impact strength of 40 ft/lb at 70° F and one inch below the surface. Pup Joints are heat-treated to 110,000 PSI minimum yield. All connections are phosphate coated to impede galling during initial make-up.
They are available in standard lengths of 5’, 10’, 15’ and 20’ with other configurations upon request.
Integral Pup Joints dedicated to Sour Service applications are available. PJ -110 PUP S are Sour Service Pup Joint using ASCOWELL C material providing improved resistance to Sulfide Stress Cracking with high yield strength.
We can offers a wide range drill string products and accessories with standard API or proprietary high performance
connections to meet the most demanding drilling requirements.

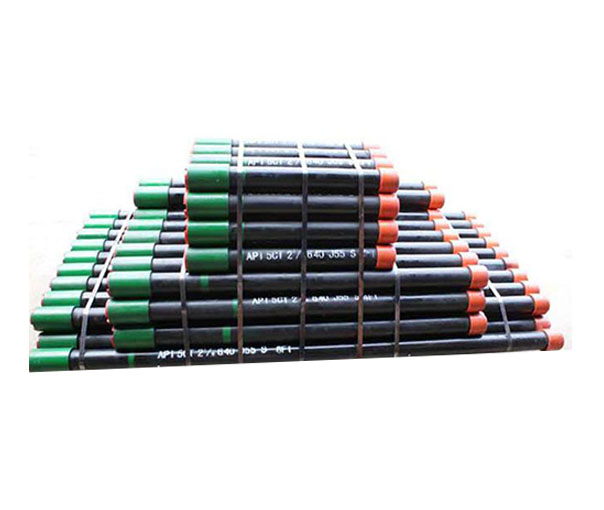

Tubing Pup Joint Specifications
Outside Diameter 1.05 ~ 4-1/2 in (26.67 ~ 114.3 mm) nominal size OD
Weight Standard or Heavy Wall
Length 2, 3, 4, 5, 6, 8, 10, 12 ft (with other lengths available upon request)
Grade H40, J55, L80, N80/Q, C90, T95, P110
Connection EUE, NUE
Standard API 5CT, API 5B

Casing Pup Joint Specifications
Outside Diameter 4-1/2 ~ 20 in (114.3 ~ 508 mm) nominal size OD
Weight Standard or Heavy Wall
Length 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20 ft (with other lengths available upon request)
Grade H40, J55, K55, L80, N80/Q, C90, T95, P110, Q125
Connection BTC, STC, LTC
Standard API 5CT, API 5B

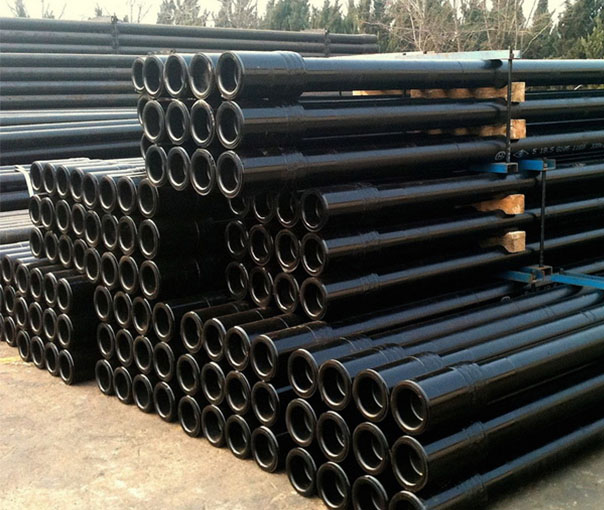

Technical data
All pump joints are made from modified alloy steel heat-treated to a Brinell Hardness range of 285–341 with a Charpy V-Notch minimum impact strength of 40 ft-lbs at 70°F guaranteed to one inch below the surface  Connections can be cold rolled after machining, if requested  All connections are phos-coated to prevent galling during initial make-up
Nominal size: 3 1/2”OD ~ 6~ 5/8” OD, Length: 5′, 10′, 15′, 20′
Nominal Size – A (in) Tool Joint OD – B (in) Tool Joint ID (in) TJ Pin Tong – C (in) TJ Box Tong – D (in) Connection
2-3/8 3-3/8 1-1/2 9 12 NC26
2-7/8 4-1/8 2-1/8 9 11 NC31
3-1/2 4-3/4 2-9/16 10 12-1/2 NC38
3-1/2 5 2-1/8 10 12-1/2 NC38
4 5-1/4 2-11/16 9 12 NC40
4-1/2 6-1/4 3 9 12 NC46
5 6-1/2 3-1/4 9 12 NC50
5 6-5/8 2-3/4 9 12 NC50
5 6-5/8 3-1/4 9 12 NC50
5-1/2 7-1/4 3-1/2 8 10 5-1/2 FH
5-1/2 7-1/2 3-1/2 10 12 5-1/2 FH
6-5/8 8-1/2 4-1/4 8 10 6-5/8 FH
6-5/8 8 5 8 10 6-5/8 FH

Sour Service grades and equivalent to G-105 and S-135 are available upon request
Length L(ft): 5; 10; 15; 20
Other configurations are available upon request
All hardbanding and coating options available upon request.
Standard
API Spec 5CT – This Standard specifies the technical delivery conditions for steel pipes (casing, tubing and pup joints), coupling stock, coupling material and accessory material and establishes requirements for three Product Specification Levels (PSL-1, PSL-2, PSL-3). The requirements for PSL-1 are the basis of this Standard. The requirements that define different levels of standard technical requirements for PSL-2 and PSL-3, for all Grades except H-40, L-80 9Cr and C110, are contained in Annex H.

Chemical Composition
Standard Grade Chemical compositions(%)
API SPEC 5CT J55 C Si Mn P S Cr Ni Cu Mo V
K55 0.34~0.39 0.20~0.35 1.25~1.50 ≤0.020 ≤0.015 ≤0.15 ≤0.20 ≤0.20 / /
N80 0.34~0.38 0.20~0.35 1.45~1.70 ≤0.020 ≤0.015 ≤0.15 / / / 0.11~0.16
L80 0.15~0.22 ≤1.00 0.25~1.00 ≤0.020 ≤0.010 12.0~14.0 ≤0.20 ≤0.20 / /
P110 0.26~0.395 0.17~0.37 0.40~0.70 ≤0.020 ≤0.010 0.80~1.10 ≤0.20 ≤0.20 0.15~0.25 ≤0.08

Mechanical properties
Grade Type Total elongation under load (%) Yield strength (min) Yield strength (max) Tensile strength min Mpa Hardness Max (HRC) Hardness Max (HBW)
J55 - 0.5 379 552 517 - -
K55 - 0.5 379 552 655 - -
N80 1 0.5 552 758 689 - -
N80 Q 0.5 552 758 689 - -
L80 1 0.5 552 655 655 23 241
L80 9Cr 0.5 552 655 655 23 241
L80 13Cr 0.5 552 655 655 23 241
C90 - 0.5 621 724 689 25.4 255
C95 - 0.5 655 758 724 - -
T95 - 0.5 655 758 724 25.4 255
P110 - 0.6 758 965 862 - -
Q125 All 0.65 862 1034 931 - -

Painting&coating
The anti-corrosion of petroleum casing is mainly divided into three types:
Brush the anti-corrosive coating on the outer wall.
Brush anti-corrosion coating on the inner wall.
Brush the anti-corrosive and cooling coating.
With the use of oil casings and pup joint in harsh oil extraction industries such as the polar and marine. It requires the material and structure of petroleum pup joint, and it must have good nodality, excellent physical properties, stable chemical properties, and a wide range of temperature adaptation. If the oil casing cannot be made, it should be coated with an anti-corrosive coating to help him cope with the harsh environment. The coating on the outer wall is used to reduce external corrosion, and the anti-corrosion coating on the inner wall is to reduce friction, reduce corrosion in the pipe, and increase the amount of oil transported. Anti-corrosive insulation coating is used to transport crude oil and fuel oil, and reduce the heat emitted from the pipeline to the soil.
