TEE

A tee is also called triplet,three way and “T” pieces and it can be used to either combine or split a fluid flow.
Size:NPS from 1/2'' to 36'', DN from 15 to 900;WT: 2-80mm, SCH 40/80/XXS
Delivery:Within 30 days and Depends on your order quantity
Product introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product introduction
Keywords(pipe type):Equal/Unequal Tee, Cross Tee, Socket Tee, Short Tee, Forging Tee
Size:NPS from 1/2'' to 36'', DN from 15 to 900;WT: 2-80mm, SCH 40/80/XXS
Material & Standard:Carbon Steel --- ASTM A234 WPB/WPC, ANSI B 16.9, ASTM A105/A106/A53,Stainless Steel --- ASTM 403 304/304L,316/316L,316Ti,321,317L,310S ;Alloy Steel A234 WP1/5/9/11/12/22/91--- ASTM
Ends :Square Ends/Plain Ends (straight cut, saw cut, torch cut), Beveled/Threaded Ends
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Packing:Packed in Wood Cabins/ Wood Tray
Usage:Oil and gas transmissions;Petroleum and Oil refining;Water treatment systems;Chemical Industries; Sanitary tubing;Power stations;Machines and equipment;Heat Exchanger
Description

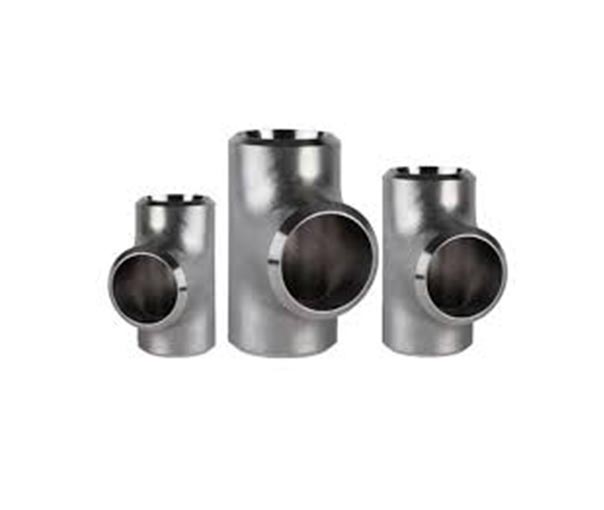

Pipe Tee, Tee Fittings
A tee is also called triplet,three way and “T” pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes, but ‘reducing’ tees are available as well. it means the one or two ends are differ in dimension.due to thisdimension differ,the makes the tee fittings with the capacity to control the volume when requried.
Steel pipe tee has three branches that can change fluid direction. It has T-shaped or Y-shaped, and include Equal Tee and Reducing Tee (Reducer Tee). Steel tee is widely used in pipe networks for convey liquids and gases.
types of steel pipe tee:
According to branch diameters and functions there are:

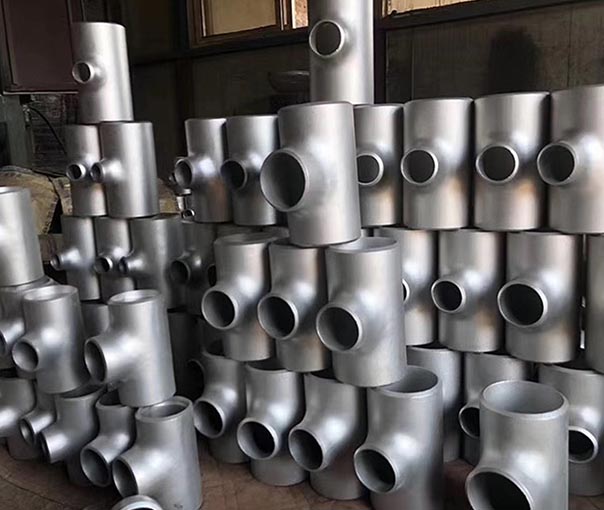

Equal Tee
Reducing Tee (Reducer Tee).
According to connection types are:
Butt Weld Tee
Socket Weld Tee
Threaded Tee.
According to material types there are:
Carbon Steel Pipe Tee
Alloy Steel Tee

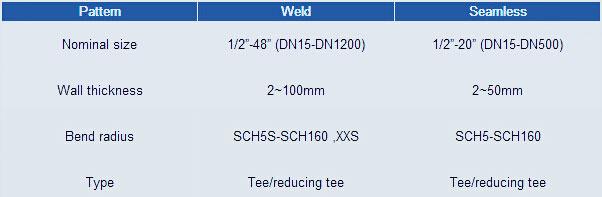

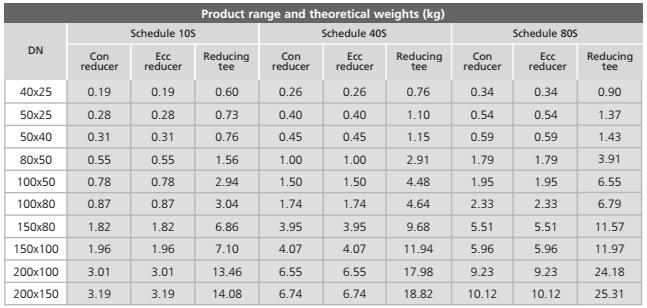

Technical data
Standard
Carbon Steel Tee
Carbon steel tee material: ASTM A234 WPB, WPC; MSS SP-75 WPHY-42, WPHY-46, WPHY-52, WPHY-56, 60, 65 and 70.

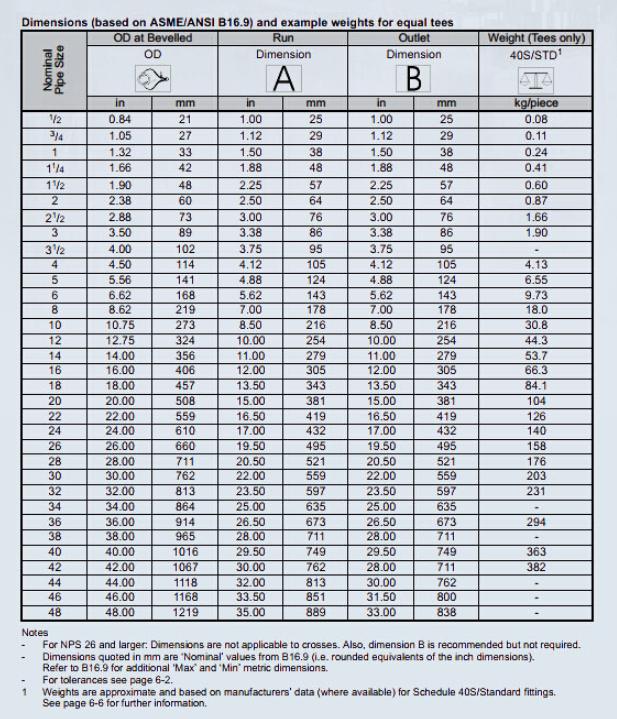

ASME/ANSI B16.9 for butt weld tee fittings,
ASME/ANSI B16.11 for socket weld and threaded tee fittings.

Alloy Steel Tee
Alloy steel material: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91

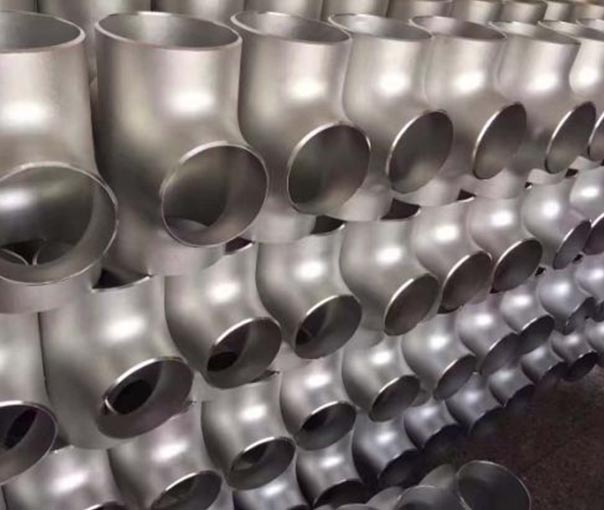

Stainless Steel Tee
Stainless steel tee is widely used in chemical, health, food and other industries. Its advantages are applicable to different working environments and have good corrosion resistance.
Standards: ASTM A403 (Common Standard for stainless steel pipe fittings), ASTM A270 (Sanitary Tubing Standard)
Grade: TP 304, 304L, 316, 316L, 310, 317 and 321.


Painting & Coating
Light Oiling, Black Painting












Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
Related Projects
Mining
2022-08-02 10:55:38
Mining
Energy
2022-08-02 10:09:26
Energy

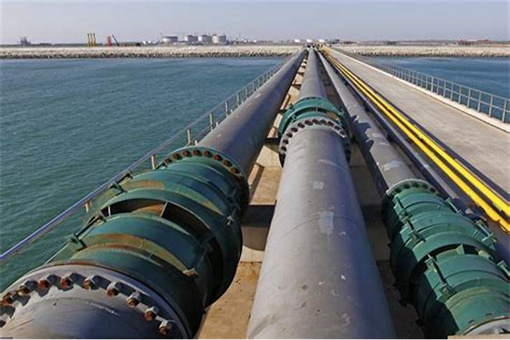

Marine engineering
