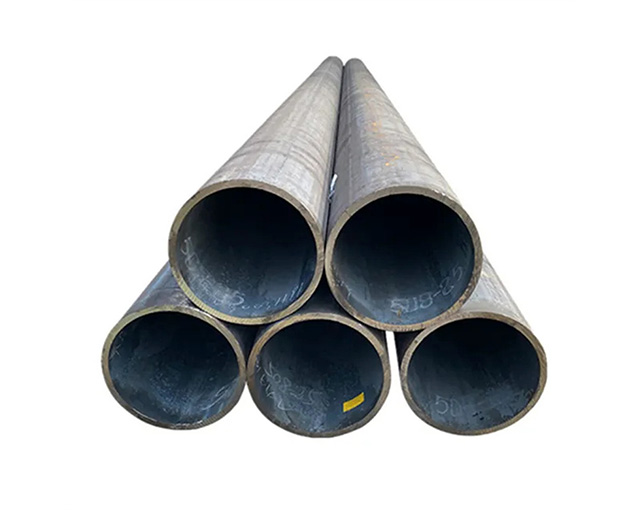

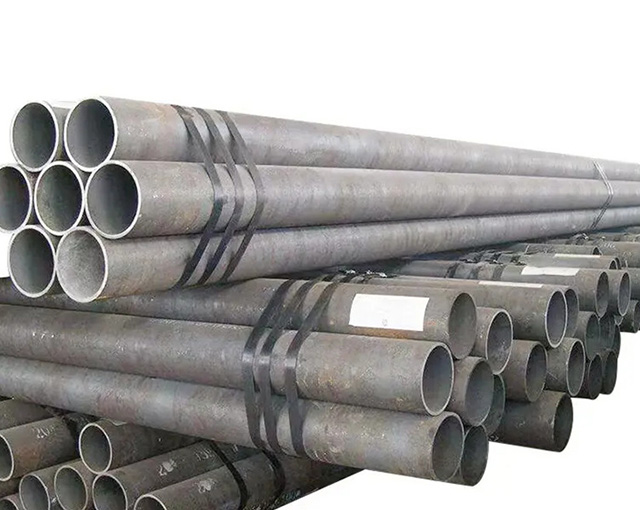

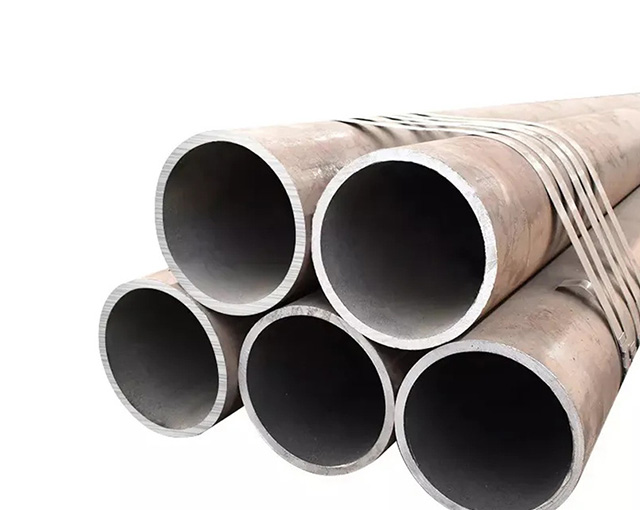

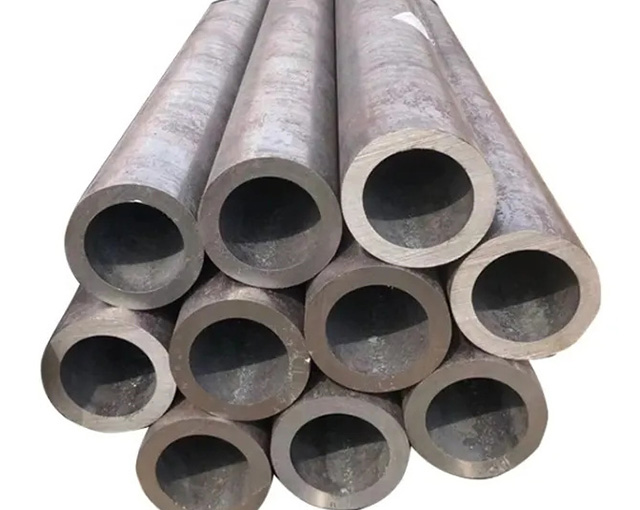

PRECISION SEAMLESS PIPE
Precision seamless pipe is a pipe material producing by a cold drawn process with high precision and high-quality finish.
ASTM A334 Carbon Steel Tube Stock Size Range
Grade | ASTM A334 Carbon Steel |
Size | 1/2" NB to 36" NB |
Standard | ASTM A334, ASME SA334 |
Outer Diameter Size | 1/4"NB To 2"NB |
Wall Thickness | 1 mm to 8 mm |
Form | Round, Square, Rectangular, Hydraulic Etc |
Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Length | Single Random, Double Random & Cut Length. |
Type | Seamless Tube |
End | Plain End, Beveled End, Treaded |
ASME SA / ASTM A334 Low Temperature Pipe Chemical Composition :
C, % |
Mn, % |
P, % |
S, % |
0.30 max |
0.40-1.06 |
0.025 max |
0.025 max |
Grade | Tensile Test MPa or N/mm2 | Remaks (Similar to JIS) |
|
Min Yield point | Tensile Strength | ||
Gr. 1 | 205 | 380Min | Impact Test(J) 2V 18 |
Gr. 3 | 240 | 450Min | 2V 18 |
Gr. 6 | 240 | 415Min | 2V 18 |
Gr. 7 | 240 | 450Min | 2V 18 |
Gr. 8 | 520 | 690Min | 2V 18 |
Gr. 9 | 315 | 435Min | 2V 18 |
