ASTM A358 STEEL PIPE
ASTM A358 STEEL PIPE

ASTM A358 STEEL PIPE

ASTM A358/ASME SA358,Standard Specification for Electric-Fusion-Welded Austenitic Chromium-Nickel Alloy Steel Pipe for High-Temperature Service.
Size:6mm-530mm,Wall Thickness: 1mm-40mm (10S-160S)
Standard:JIS, AISI, ASTM, DIN, CE
Product introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product introduction
Keywords(pipe type):Stainless Steel Pipe, Stainless Steel Tube, Stainless Steel Tubing
Size:Out Diameter 6-1000mm;Thickness 0.4-30mm;Length 1-6m or as customers required
Standard :SUS ANSI ASTM EN A249 DIN Austenitic ASME AISI JIS A789
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Ends:Plain Ends / Beveled Ends
Surface:Annealed, Pickling, Polished
Packing:Bundle or bulk , seaworthy packing or for the client's requirement
Usage:industry,chemical,machinery,architecture,decoration,etc

Description

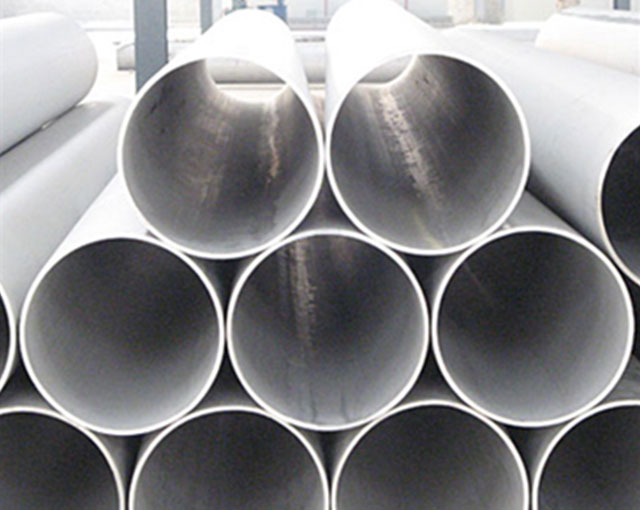

ASTM A358 Stainless Steel Pipe
ASTM A358/ASME SA358,Standard Specification for Electric-Fusion-Welded Austenitic Chromium-Nickel Alloy Steel Pipe for High-Temperature Service.
Grades:304, 304L, 310S, 316,316L,316H,317L,321,321H, 347, 347H, 904L …
Outer diameter size:Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size)
Wall thickness:Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness)
Classes(CL):CL1,CL2,CL3,CL4,CL5

Five classes of pipe are covered as follows:
ASTM A358 CL1 – Pipe shall be double welded by processes employing filler metal in all passes and shall be completely radiographed.
ASTM A358 CL2 – Pipe shall be double welded by processes employing filler metal in all passes. No radiography is required.
ASTM A358 CL3 – Pipe shall be single welded by processes employing filler metal in all passes and shall be completely radiographed.
ASTM A358 CL4 – Same as Class 3 except that the weld pass exposed to the inside pipe surface may be made without the addition of filler metal.
ASTM A358 CL5 – Pipe shall be double welded by processes employing filler metal in all passes and shall be spot radiographed.
Pipe ends:Plain Ends / Beveled Ends
Technical data
Specification
Item Astm A358 Stainless Steel Pipe
Steel grade 300 series
Standard ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605,GB13296
Material 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202
Surface Polishing,annealing,pickling,bright
Type hot rolled and cold rolled
stainless steel round pipe/tube
Size Wall thickness 1mm-150mm(SCH10-XXS)
  Outer diameter 6mm-2500mm (3/8″-100″)
stainless steel square pipe/tube
Size Wall thickness 1mm-150mm(SCH10-XXS)
  Outer diameter 4mm*4mm-800mm*800mm
stainless steel rectangular pipe/tube
Size Wall thickness 1mm-150mm(SCH10-XXS)
  Outer diameter 6mm-2500mm (3/8″-100″)
  Length 4000mm,5800mm,6000mm,12000mm,or as required.
Delivery time Prompt delivery or as the order quantity.
Export to Ireland,Singapore,Indonesia,Ukraine,Saudi Arabia,Spain,Canada,USA, Brazil,Thailand,Korea,Italy,India,Egypt,Oman,Malaysia,Kuwait,Canada, Viet Nam, Peru,Mexico,Dubai, Russia,etc
Package Standard export seaworthy package,or as required.
Application Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields.Pipes also can be made according to the customer’s required.
Contact If you have any questions,please feel free to contact me.
Container size 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)   24-26CBM40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)   54CBM

40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High)    68CBM

Standard
ASTM A358 EFW Stainless Steel Pipe (TP304)Dimension Table:
Nominal Outside Nominal  Wall Thickness (mm)
Diameter Diameter ASME  B36.19M ASME  B36.10M
NPS (mm) SCH5S SCH10S SCH40S SCH80S SCH5 SCH10 SCH20 STD XS
1/4 13.72 - 1.65 2.24 3.02 - 1.65 - 2.24 3.02
3/8 17.15 - 1.65 2.31 3.2 - 1.65 - 2.31 3.2
1/2 21.34 1.65 2.11 2.77 3.73 1.65 2.11 - 2.77 3.73
3/4 26.67 1.65 2.11 2.87 3.91 1.65 2.11 - 2.87 3.91
1 33.4 1.65 2.77 3.38 4.55 1.65 2.77 - 3.38 4.55
1 1/4 42.16 1.65 2.77 3.56 4.85 1.65 2.77 - 3.56 4.85
1 1/2 48.26 1.65 2.77 3.68 5.08 1.65 2.77 - 3.68 5.08
2 60.33 1.65 2.77 3.91 5.54 1.65 2.77 - 3.91 5.54
2 1/2 73.03 2.11 3.05 5.16 7.01 2.11 3.05 - 5.16 7.01
3 88.9 2.11 3.05 5.49 7.62 2.11 3.05 - 5.49 7.62
3 1/2 101.6 2.11 3.05 5.74 8.08 2.11 3.05 - 5.74 8.08
4 114.3 2.11 3.05 6.02 8.56 2.11 3.05 - 6.02 8.56
5 141.3 2.77 3.4 6.55 9.53 2.77 3.4 - 6.55 9.53
6 168.28 2.77 3.4 7.11 10.97 2.77 3.4 - 7.11 10.97
8 219.08 2.77 3.76 8.18 12.7 2.77 3.76 6.35 8.18 12.7
10 273.05 3.4 4.19 9.27 12.7 3.4 4.19 6.35 9.27 12.7
12 323.85 3.96 4.57 9.53 12.7 3.96 4.57 6.35 9.53 12.7
14 355.6 3.96 4.78 9.53 12.7 3.96 6.35 7.92 9.53 12.7
16 406.4 4.19 4.78 9.53 12.7 4.19 6.35 7.92 9.53 12.7
18 457.2 4.19 4.78 9.53 12.7 4.19 6.35 7.92 9.53 12.7
20 508 4.78 5.54 9.53 12.7 4.78 6.35 9.53 9.53 12.7
22 558.8 4.78 5.54 - - 4.78 6.35 9.53 9.53 12.7
24 609.6 5.54 6.35 9.53 12.7 5.54 6.35 9.53 9.53 12.7
26 660.4 - - - - - 7.92 12.7 9.53 12.7
28 711.2 - - - - - 7.92 12.7 9.53 12.7
30 762 6.35 7.92 - - 6.35 7.92 12.7 9.53 12.7
32 812.8 Thickness  :6.35~30mm
| |
84 2133.6
Remark (1)Marking:Within  production capability.
(2)Other nominal diameter and wall thickness  subject to the approval of vendor and purchaser.
(3)Calculating formula for the value of mass  (kg/m):304/L[W=0.02491t(D-t)], 316/L[W=0.02507t(D-t)]

Painting & Coating
Annealed & pickled, bright annealing, polished

Packing & Loading
There are probably hundreds of different methods for packing a pipe, and most of them have merit, but there are two principles that are vital for any method to work prevent rusting and Sea transportation security. Our ASTM A358 TP 304L Stainless Steel EFW pipes packing can meet any needs of the customers.

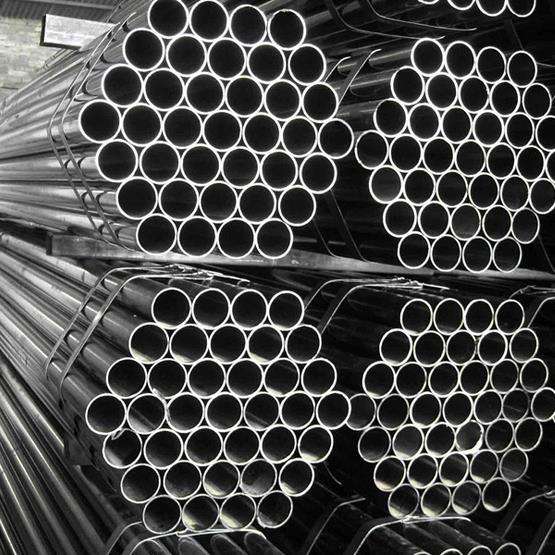

1.Bundle packing
2.Crate packing
3. Naked packing
4.Protect by wood at both ends












Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
