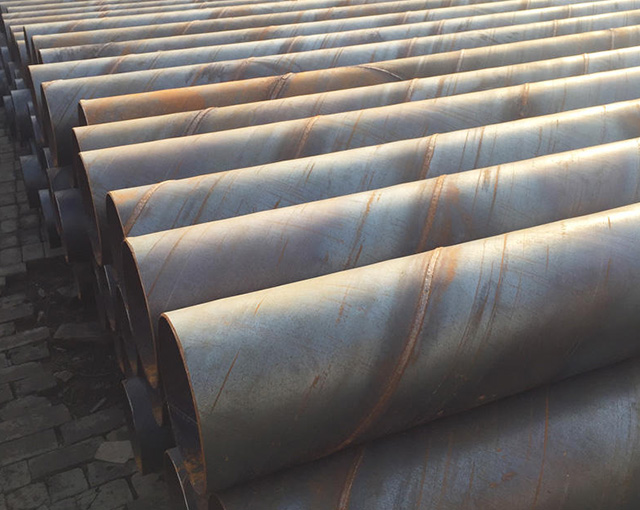

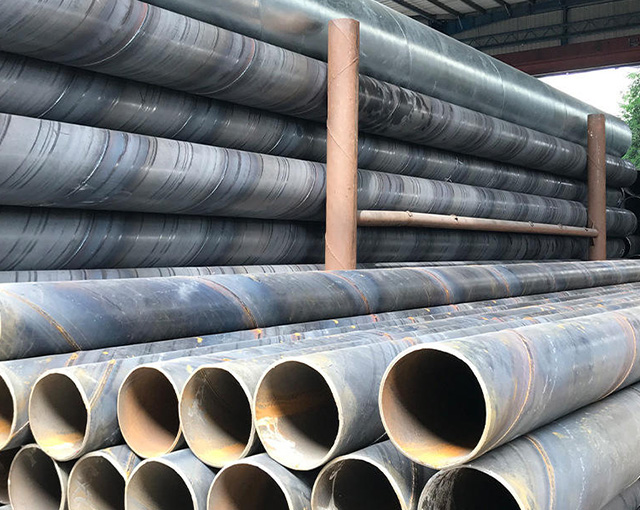

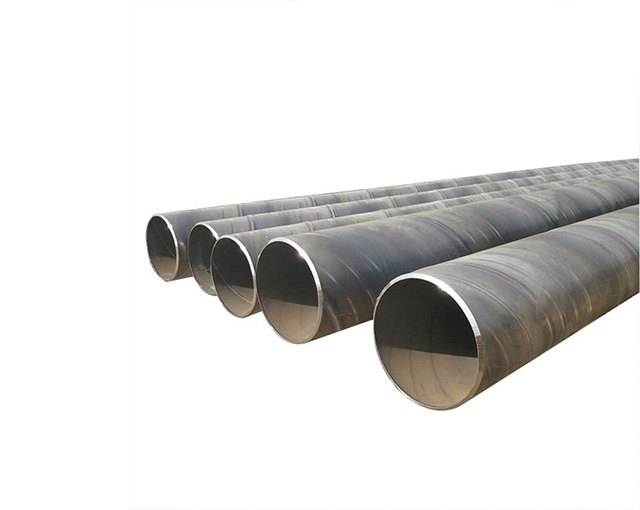

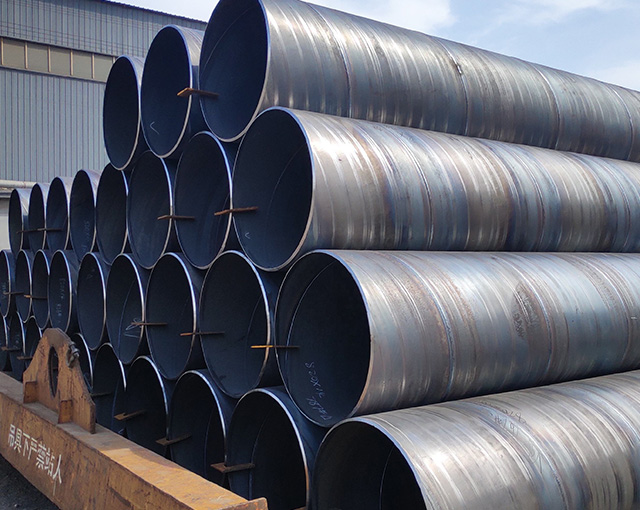

API 5L X52 is a welded steel pipe for pipelines produced in accordance with the API 5L standard of the American Petroleum Institute. It is mainly used to transport fluid media such as oil and natural gas.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
API 5L X52 pipe has a yield strength of 52,000 psi, making it particularly suitable for high-pressure applications. It has grades equivalent to ASTM specifications A53 Grade B, EN10208 L360MB, GB/T9711 L360 and ISO3183 L360. This means that API 5L X52 spiral steel pipe has high requirements in terms of strength, pressure resistance, corrosion resistance and reliability, and can meet various complex environments and engineering requirements.
API 5L X52 spiral welded steel pipe, after heat treatment and precision processing technology, has high strength and pressure resistance. Its internal and external surfaces have been treated with anti-corrosion coatings, which can effectively prevent corrosion and rust and ensure long-term stable operation of the pipeline.
The manufacturing process of API 5L X52 Hot rolled spiral steel pipe strictly follows API standards and undergoes precise quality testing and control, making it highly reliable.
Technical Data

L360 API 5L X52 PSL1 Specification

Specification API 5L X52, ASTM A1024 / A1024M, ISO 3183
Scope Covers Welded, ERW and seamless pipe mostly used to conveying water, gas and oil in both the oil and natural gas industries.
Hot-Dipped Galvanizing May be ordered galvanized.
Supplying techniques

X52 Welded

Straight seam submerged arc welding pipe(LSAW)

Resistance welded pipe (ERW)

Spiral submerged arc welded pipe (SSAW)

X52 Seamless



Schedule 80 Api 5l X52 Dsaw Pipe yield strength

Grade Yield Strength Tensile Strength Yield to Tensile Elongation
  min. (KSI) min. (KSI) Ratio (max) %
API 5L X52 52 66 0.93 21
company advantage
There are 14 steel production lines, 10 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, surface treatment, etc., complete testing equipment, and strong technical force. The annual production capacity is more than 60,000 tons.

FAQ

What is API 5L X52 pipe specification?
API 5L grade X52 (L360 pipe) the yield strength minimum at 52220 Psi 360 Mpa, it's the meaning that we call this grade in the API 5L X52 or L360.

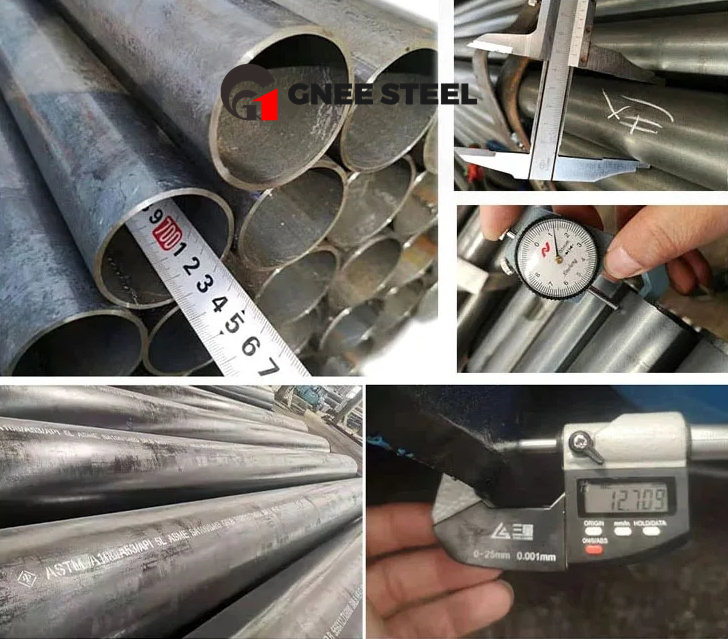

Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.

Q. Can you provide samples?
A.We can provide them for free, you need to bear the shipping cost.
