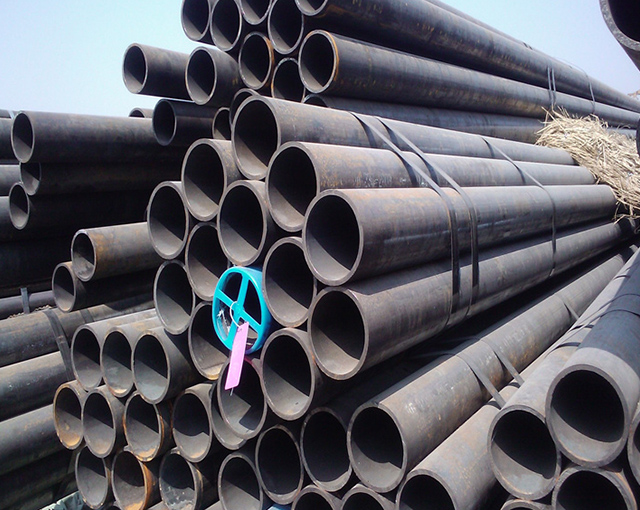

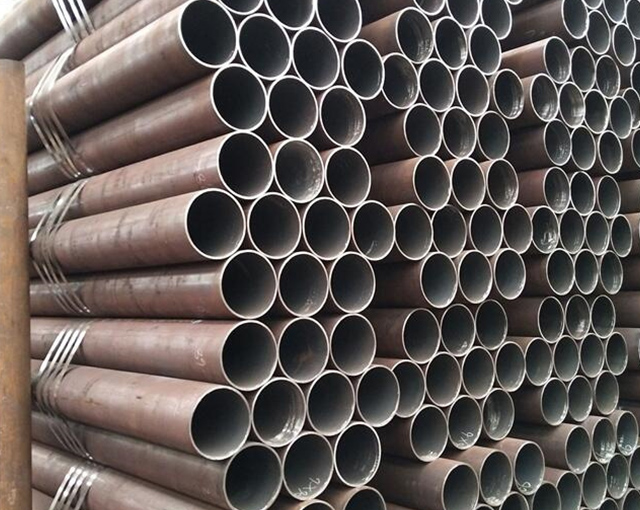

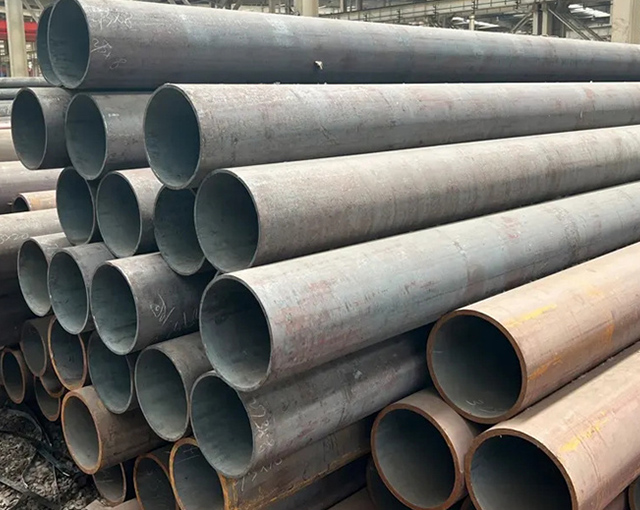

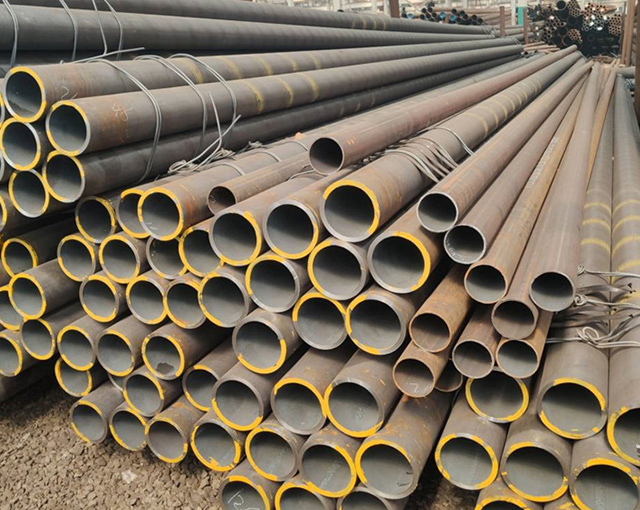

A691 1-1/4CR alloy steel EFW pipe is commonly used in high temperature, high pressure and corrosive environments.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
A691 1-1/4CR alloy steel EFW (Electric Fusion Welding) pipe is an alloy steel pipe manufactured using the electrofusion welding (EFW) process. The alloy composition of this steel pipe contains a higher proportion of chromium (Cr), specifically 1-1/4% chromium, so it is called 1-1/4CR.
A691 1-1/4CR alloy steel pipe is suitable for a variety of environments, especially in the petroleum, natural gas, chemical, electric power and other industries, for transporting fluid media such as steam, water, oil, gas, etc.
Technical Data

Specification & Range

Type ASTM A691 1-1/4CR, 2-1/4CR, 5CR, 9CR, 91 LSAW / SAW / EFW Pipe
Grades 1-1/4CR, 2-1/4CR, 5CR, 9CR, 9, P5, P9, P11, P12, P22, P91
ASTM A691 Standard Specification for Carbon and Alloy Steel Pipe, Electric-Fusion-Welded for High-Pressure Service at High Temperatures
Class Designation Class 10, 11, 12, 13, 20, 21, 22, 23, 30, 31, 32, 33, 34, 40, 41, 42, 43, 50, 51, 52, 53, 60, 61, 62, 63, 70, 71, 72, 73..
Size Outer Diameter Seamless 17-914mm 3/8-36 inch
LSAW 457-1422mm 18-56 inch
Wall Thickness 2-60mm
SCH10 SCH20 SCH30 STD SCH40 SCH60 XS SCH80 SCH100 SCH120 SCH140 SCH160 XXS
Length Single random length/Double random length
5m-14m,5.8m,6m,10m-12m,12m or as customer's actual request


Tensile Requirements of A691 1-1/4CR, 2-1/4CR, 5CR, 9CR, 91 Alloy Steel EFW Pipes

Grade Tensile (MPa) Yield (MPa) Elong. (50mm) Reduc'n of Area*
1-1/4CR 415 - 585 240 min 22% min -
