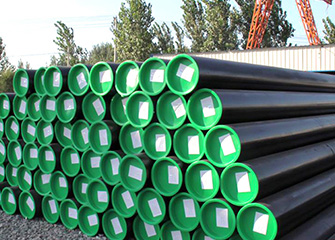

Introduction To Boiler Tubes

Release Tme: 2024-02-18

Read:

Purpose:
①General boiler tubes are mainly used to make water wall tubes, boiling water tubes, superheated steam tubes, superheated steam tubes for locomotive boilers, large and small smoke tubes and arch brick tubes, etc.
② Boiler seamless steel pipes are mainly used to manufacture superheater tubes, reheater tubes, air guide tubes, main steam pipes, etc. for high-pressure and ultra-high-pressure boilers.
standard:
ASTM A 106M, ASTM A 192M, ASTM A213M, GB/T 5310, JIS G3461
Brand:
A213T11, A213T12, A213T22, A192, A106, A53, etc.

standard	Brand	tensile strength	Yield Strength not less than	Elongation not less than	Impact energy not less than	hardness no greater than
ASTM A106M ASME SA-106	A 106B SA-106B	≥415	240	30
ASTM A106M ASME SA-106	A 106C SA-106C	≥485	275	30
ASTM A 192M ASME SA-192M	A192 SA-192	≥325	180	35		77HRB(137HBW)
ASTM A213M ASME SA-213M	A213 T11 SA-213 T11	≥415	205			85HRB(163)HBW
ASTM A213M ASME SA-213M	A213 T12 SA-213 T12	≥415	205			85HRB(163)HBW
JIS G3461	STB 340	≥340	175	35
GB 5310	20G	410~550	245

Carbon Steel Seamless Pipe

Steel grade		C	Si	Mn	S	P	Cr	Mo	other
standard	Steel type	C	Si	Mn	max		Cr	Mo	other
ASTM A 192M ASME SA-192M	A192 SA-192	0.06 ~ 0.18	≤0.25	0.27 ~ 0.63	0.020	0.025
ASTM A106M ASME SA-106	A 106B SA-106B	≤0.30	≥0.10	0.29 ~ 1.06	0.020	0.025
ASTM A106M ASME SA-106	A 106C SA-106C	≤0.35	≥0.10	0.29 ~ 1.06	0.020	0.025
ASTM A213M ASME SA-213M	A213 T11 SA-213 T11	0.05 ~ 0.15	0.50 ~ 1.00	0.30 ~ 0.60	0.020	0.025	1.00 ~ 1.50	0.44 ~ 0.65
ASTM A213M ASME SA-213M	A213 T12 SA-213 T12	≤0.15	≤0.50	0.30 ~ 0.61	0.020	0.025	0.80 ~ 1.25	0.44 ~ 0.65
JIS G3461	STB 340	≤0.18	≤0.35	0.30 ~ 0.60	0.020	0.025
GB 5310	20G	0.17 ~ 0.23	0.17 ~ 0.37	0.35 ~ 0.65	0.015	0.025
