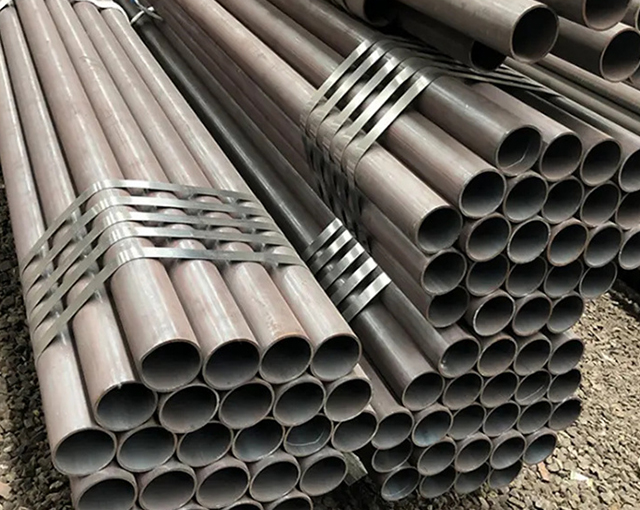

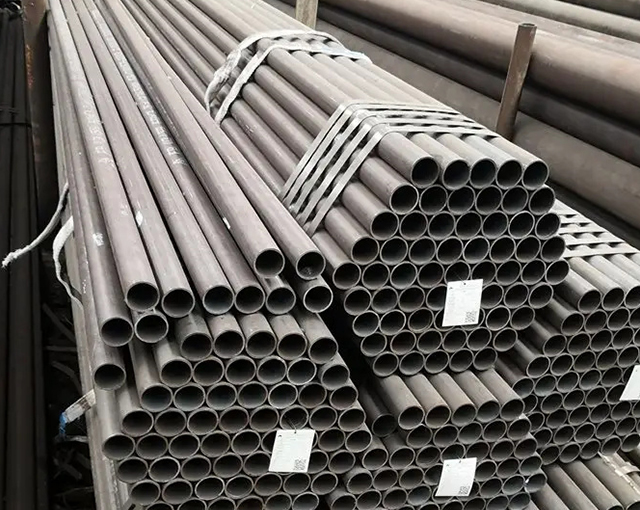

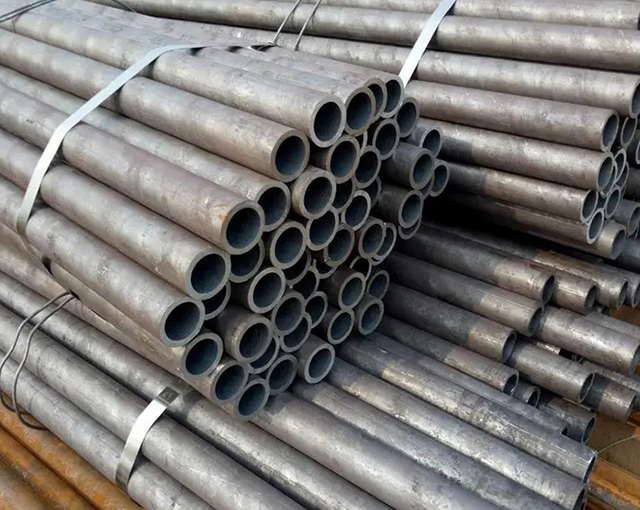

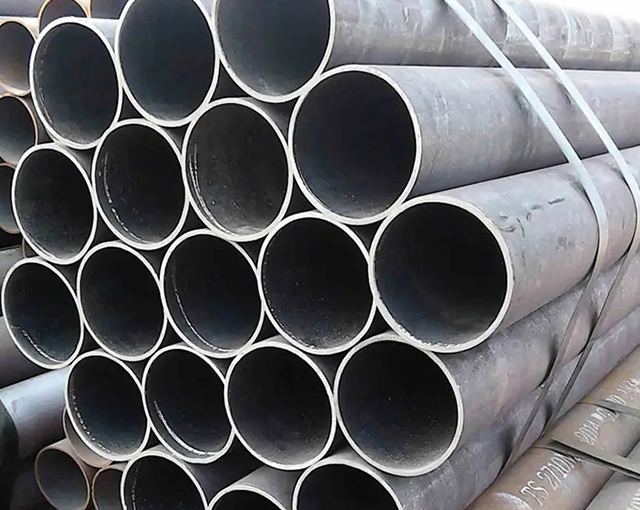

ASTM A335 P1 Seamless Alloy Pipes
ASTM A335 P1  P9 Seamless Alloy Pipes
ASTM A335  P5 P9 Seamless Alloy Pipes
ASTM A335 P1 P2  Seamless Alloy Pipes
ASTM A335 P1 Seamless Alloy Pipes
ASTM A335 P1  P9 Seamless Alloy Pipes
ASTM A335  P5 P9 Seamless Alloy Pipes
ASTM A335 P1 P2  Seamless Alloy Pipes

ASTM A335 P1 P2 P5 P9 Seamless Alloy Pipes

ASTM A335 is the standard specification for seamless ferritic alloy steel pipe for high temperature applications. Different grades (P1, P2, P5, P9, etc.) represent different alloy compositions.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
A335 seamless high-pressure alloy steel pipe is a high-quality alloy steel pipe with excellent mechanical properties and corrosion resistance. It implements the ASTM A335 standard and approximates the ASTM A213 T22 standard. The chemical composition of this steel pipe includes elements such as carbon, silicon, manganese, phosphorus, sulfur, chromium and molybdenum. These elements are precisely proportioned to give the steel pipe excellent mechanical properties.
The chemical composition of A335 high-temperature alloy steel tube heat exchanger tubes is specified as carbon content between 0.05% and 0.15%, silicon content not exceeding 0.5%, manganese content between 0.3% and 0.6%, phosphorus content not exceeding 0.025%, sulfur content The content does not exceed 0.025%, the chromium content is between 1.9% and 2.6%, and the molybdenum content is between 0.87% and 1.13%. The ratio of these elements gives P22 steel pipe excellent corrosion resistance and mechanical properties.
The mechanical properties of A335 P9 high-pressure boiler tube include tensile strength ≥ 415Map, yield strength ≥ 205Mpa, and elongation after break ≥ 30%. These performance indicators enable P22 steel pipes to withstand high pressure and high temperature, and are suitable for various high-demand boilers, superheaters and other equipment.
A335 P1 boiler tubes are available in a variety of sizes, with diameters ranging from 60.3mm to 765mm and wall thicknesses ranging from 2mm to 120mm. These specifications can meet the needs of different fields, such as petrochemical industry, nuclear power plants, etc.
Technical Data
Chemical Components (%)
Grade C Mn P S Si Cr Mo V Nb N Al others
P1 0.10-0.20 0.30-0.80 ≤0.025 ≤0.025 0.10-0.50 / 0.44-0.65 / / / / /
P9 0.15 max 0.30-0.60 ≤0.025 ≤0.025 0.25-1.0 8.0-10.0 0.90-1.10 / / / / /

Tensile Requirements And Hardness:

Mechanical Properties
Grade Tensile Yield Elongation Hardness
Strength (Mpa) Strength (Mpa) (%)
P1, P2 ≥380 ≥205 ≥30 ≤89HRB
P5 ≥415 ≥205 ≥30 ≤89HRB
P9 ≥585 ≥415 ≥20 ≤25HRC
company advantage
GNEE Group has branches in 5 countries and regions including Anyang, Tianjin, Hong Kong and Singapore. The headquarters is located in Anyang City, one of the eight ancient capitals of China, where the world cultural heritage "Yin Ruins" is located. The company strictly implements the 6S management system and passed ISO9001 international quality system certification and GJB9001B-2009 national military standard quality management system certification in 2016, as well as various quality system certificate certifications.




Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
