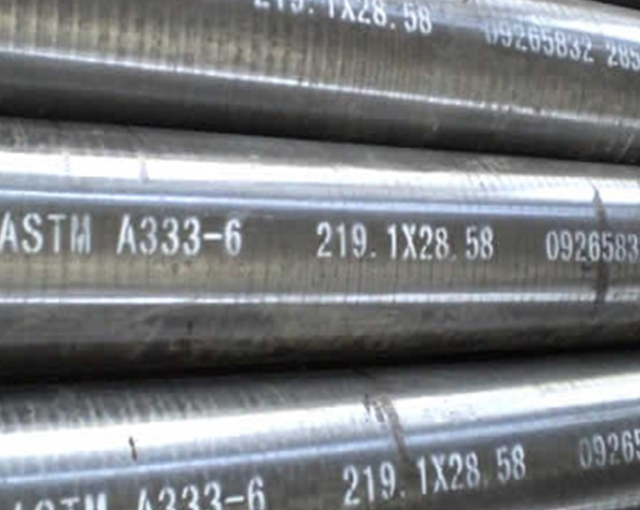

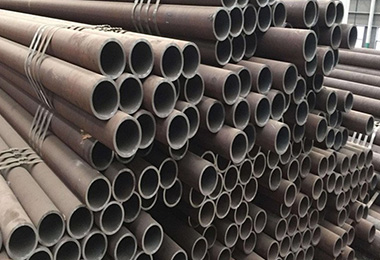

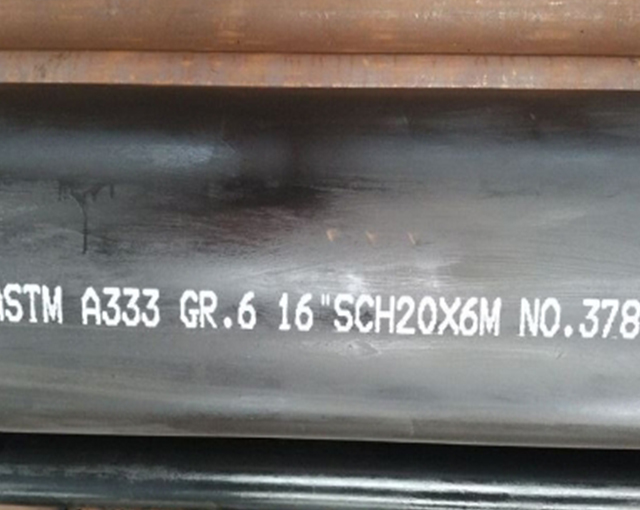

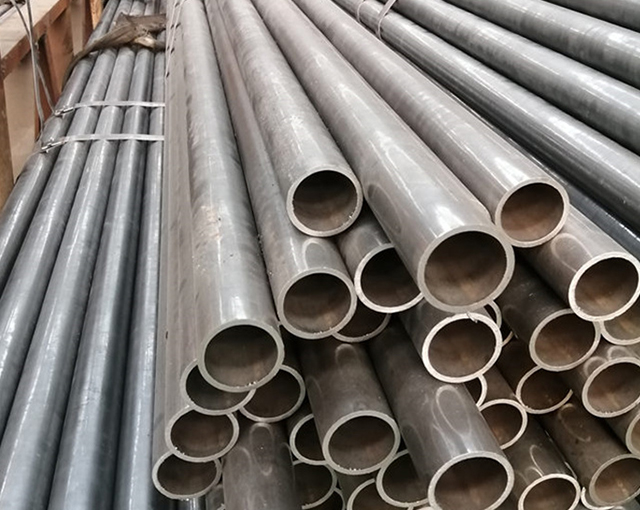

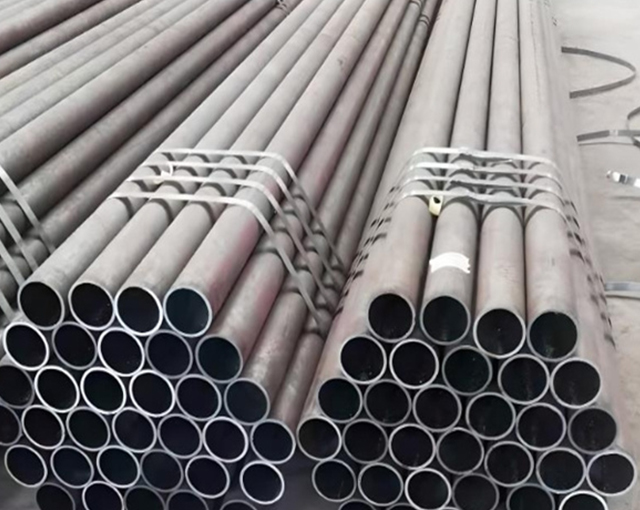

ASTM A333 Gr.6 Low Temperature Pipe
ASTM A333 Gr.6 Low Temperature Pipe
ASTM A333 Gr.6 Low Temperature Pipe
ASTM A333 Gr.6 Low Temperature Pipe
ASTM A333 Gr.6 Low Temperature Pipe
ASTM A333 Gr.6 Low Temperature Pipe
ASTM A333 Gr.6 Low Temperature Pipe
ASTM A333 Gr.6 Low Temperature Pipe

ASTM A333 Gr.6 Low Temperature Pipe

A333GR.6 seamless steel pipe is a metal material widely used in petroleum, chemical industry, electric power and other fields.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
A333GR.6 low temperature steel pipe has high strength and hardness, and has good plasticity and toughness. At room temperature, its tensile strength can reach 500~700MPa, yield strength is 270~410MPa, and elongation is 18%~22%. At lower temperatures, its strength and hardness will not be significantly reduced, while having good impact resistance and fatigue resistance.
A333 Gr.6 seamless low-temperature steel pipe is widely used in petrochemical, electric power, natural gas, shipbuilding, fertilizer, metallurgy, aviation and other industries. Among them, the petrochemical industry is the main application field of A333 Gr.6 high-pressure steel pipe, which is used to transport oil, natural gas and other media. A333 seamless steel pipe has high compressive strength, good corrosion resistance, and can be used in harsh environments for a long time, so it is favored by the industry.
Technical Data

Chemical Compositions(%) Of ASTM A333 Grade 6 Pipe

Compositions Data
Carbon(max.) 0.30
Manganese 0.29-1.06
Phosphorus(max.) 0.025
Sulfur(max.) 0.025
Silicon
Nickel
Chromium
Other Elements

Mechanical Properties Of A333 Grade 6 Pipe

Properties Data
Tensile strength, min, (MPa) 415 Mpa
Yield strength, min, (MPa) 240 Mpa
Elongation, min, (%), L/T 30/16.5


Outer diameter: 19.05mm – 114.3mm
Wall thickness: 2.0mm – 14 mm
length: max 16000mm

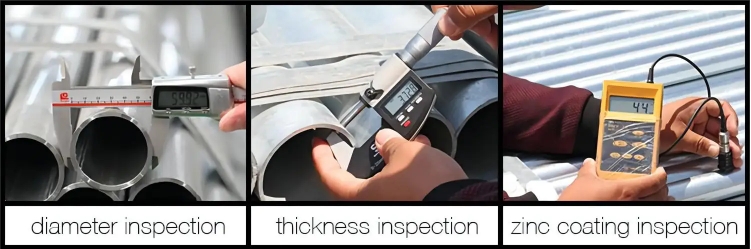

Independence Inspection: Chemical Test, Mechanical Test.
Application: For Low Temperature Service.
Third Party Inspection: SGS, BV, INTERNET, etc.



What is ASTM A333 Grade 6?
ASTM A333 Grade 6 is a low temperature carbon steel pipe used in various industrial applications such as petrochemical plants, power plants, and refineries. ASTM A333 Grade 6 has a nominal carbon content of 0.30% and is designed for temperatures as low as -50°F (-45°C). It is also known as LTCS (low temperature carbon steel) pipe.

company advantage
GNEE cooperates with several well-known factories to provide you with high-quality steel in large quantities. We have up to 200 employees and will continue to grow in the future. All employees are committed to providing you with better products and services.

FAQ
1.Q.How can I trust you?
A. We think honesty is the core of our company, you can come to know it personally so that you can check our credit.
2.Q.Can your products be customized?
A.Yes, we can produce and process according to your requirements.
3.Q.How could you guarantee your products?
A.Products are manufactured by certified workshops, inspected by professional inspector. We also issue the warranty MTC to guarantee the quality.

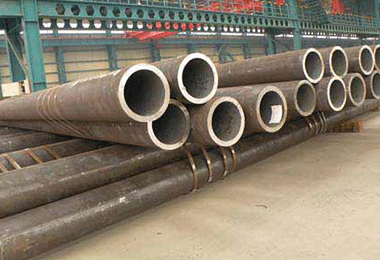

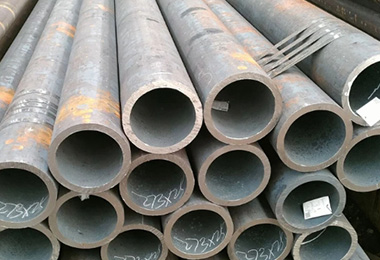

Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
