GB/T 18248 seamless gas cylinder tube is a kind of seamless steel tube for gas cylinders.
standard:GB
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction

GB 18248 seamless steel pipe is mainly used to manufacture high-pressure gas cylinders, and its materials are usually 37Mn, 34Mn2V, 30CrMo, 35CrMo, etc. The inner and outer surfaces of the steel pipe should not have visually visible defects such as cracks, folds, roll folds, delamination and scarring.
The specifications of 37Mn seamless steel pipes are generally 57mm~720mm in outer diameter and 3mm~120mm in wall thickness. The delivery weight of 34Mn2V carbon steel pipes can be calculated based on actual weight or theoretical weight. The theoretical weight is calculated in accordance with the regulations of GB/T17395. In addition, 30CrMo seamless gas cylinder tubes should also comply with the requirements of TSGD7002-2006 "Type Test Rules for Pressure Pipe Components".



GB 18248 Gas cylinder tubes This standard is applicable to the manufacture of seamless steel tubes for gas cylinders and accumulator shells.
Brand: 37Mn, 34Mn2V, 30CrMo, 35CrMo, 34CrMo4, 30CrMnSiA
Outside diameter: 48 - 711 mm
Weight: 3.1 - 38mm
Length: 4-12m
Delivery status: not heat treated, quenched and tempered + quenched and tempered, normalized + tempered



Technical Data

Chemical Composition of Gas Cylinder Tube

Grade C Si Mn P b P+S Cr Mo V Ni Cu
37Mn 0.34 - 0.40 0.10 - 0.30 1.35 - 1.75 ≤ 0.020 ≤ 0.020 ≤ 0.030 ≤0.30 ≤0.30 ≤0.20
34Mn2V 0.30 - 0.37 0.17 - 0.37 1.40 - 1.75 ≤ 0.020 ≤ 0.020 ≤ 0.030 ≤0.30 0.07 - 0.12 ≤0.30 ≤0.20
30CrMo 0.26 - 0.34 0.17 - 0.37 0.40 - 0.70 ≤0.020 ≤ 0.020 ≤ 0.030 0.80 - 1.10 0.15 - 0.25 ≤0.30 ≤0.20
35CrMo 0.32 - 0.40 0.17 - 0.37 0.40 - 0.70 ≤ 0.020 ≤ 0.020 ≤ 0.030 0.80 - 1.10 0.15 - 0.25 ≤0.30 ≤0.20
34CrMo4 0.30 - 0.37 ≤0.40 0.60 - 0.90 ≤ 0.020 ≤ 0.020 ≤ 0.030 0.90 - 1.20 0.15 - 0.30 ≤0.30 ≤0.20
30CrMnSiA 0.28 - 0.34 0.90 - 1.20 0.80 - 1.10 ≤ 0.020 ≤ 0.020 ≤ 0.030 0.80 - 1.10 ≤0.10 ≤0.30 ≤0.20

Mechanical Properties of Gas Cylinder Tube

Standard Grade Tensile Strength(MPa) Yield Strength(MPa) Elongation(%)
GB 18248 37Mn ≥750 ≥630 ≥16
34Mn2V ≥745 ≥530 ≥16
30CrMo ≥930 ≥785 ≥12
35CrMo ≥980 ≥835 ≥12
34CrMo4 ≥980 ≥835 ≥12
30CrMnSiA ≥1080 ≥885 ≥10
company advantage

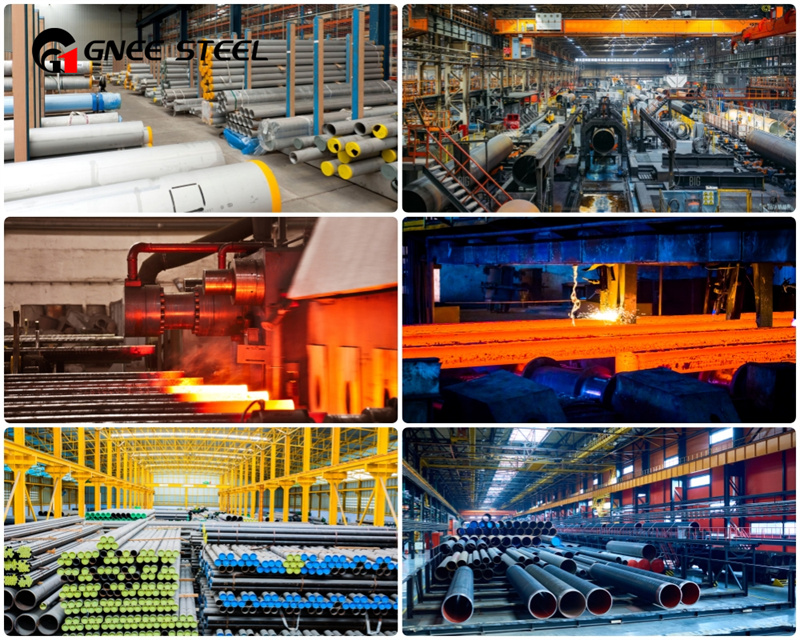

Founded in 2008, Gnee Company is a professional manufacturer and service provider of various special seamless steel pipes, specializing in the production of fluid pipes, boiler pipes, alloy structural pipes, automobile pipes, marine pipes, etc. We have advanced production equipment, sufficient inventory, and many partners.

FAQ

1.Q.How do we trust your company?
A. We specialist in steel business for many years, authenticated by SGS,welcome to visit our factory.

2.Q.Can your products be customized?
A.Yes, we can produce and process according to your requirements.

3.Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.








Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients

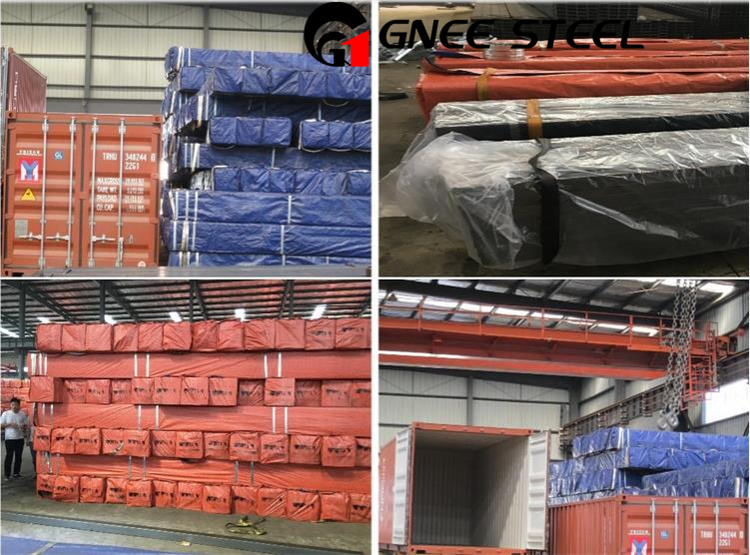

Logistics arrangement for client to help in cost cutting
