ASTM A250 Alloy Boiler Tube
ASTM A250 Alloy Boiler Tube
ASTM A250 Alloy Boiler Tube
ASTM A250 Alloy Boiler Tube
ASTM A250 Alloy Boiler Tube
ASTM A250 Alloy Boiler Tube
ASTM A250 Alloy Boiler Tube
ASTM A250 Alloy Boiler Tube

ASTM A250 Alloy Boiler Tube

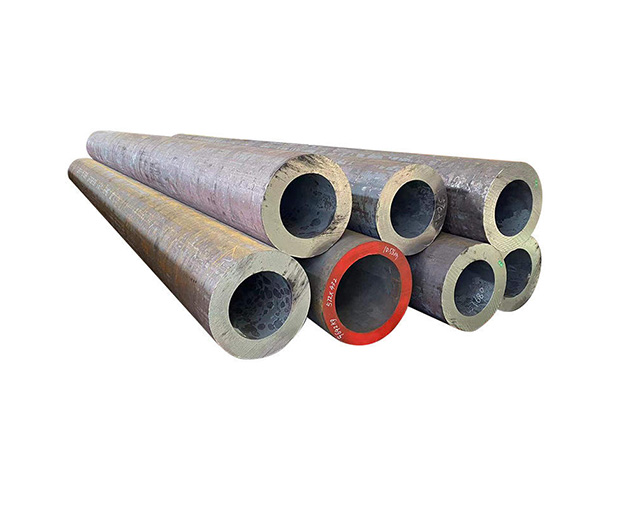

ASTM A250 alloy boiler tube is a resistance welded carbon-molybdenum and chromium-molybdenum alloy steel tube used in boilers and superheaters.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
ASTM A250 alloy boiler tube is a resistance welded carbon-molybdenum and chromium-molybdenum alloy steel tube used in boilers and superheaters. Its standard number is ASTM A250/A250M-04.
ASTM A250 Boiler Tube Steel Pipe has a minimum wall thickness of 0.035 inches and an outside diameter of 1/2 to 5 inches, and pipe sizes and thicknesses are typically offered in this range.

1.1 This specification covers several grades, designated as T1, T1a, T1b, T2, T11, T12, and T22, of minimum wall thickness resistance welded carbon-molybdenum and chromium-molybdenum alloy steel, boiler tubes, and superheater tubes.
1.2 Pipe sizes and thicknesses generally supplied in accordance with this specification are 1/2 to 5 in. [12.7 to 127 mm] outside diameter and minimum wall thicknesses from 0.035 to 0.320 in. [0.9 to 8.1 mm], inclusive. Pipes of other sizes may be supplied provided that such pipes comply with all other requirements of this specification.
1.3 Mechanical property requirements do not apply to pipe with an inside diameter less than 1/8 in. [3.2 mm] or a thickness less than 0.015 in. [0.4 mm].
Technical Data

ASTM A250 Boiler Tube Chemical composition table:

Chemical composition,%

Grade

C

Mn

Si

P

S

Mo

T1

0.10~0.20

0.30~0.80

0.10~0.50

0.025

0.025

0.44~0.65

T1a

0.15~0.25

0.30~0.80

0.10~0.50

0.025

0.025

0.44~0.65

T1b

0.14

0.30~0.80

0.10~0.50

0.025

0.025

0.44~0.65

Mechanical Propertise



Yield Strength, min

Tensile Strength, min

Elongation, min

Grade

Mpa

Ksi

Mpa

Ksi

%

T1

205

30

380

55

30

T1a

220

32

415

60

30

T1b

195

28

365

53

30

company advantage
Gnee has an ISO9001-2000 quality management system and an ISO14001 environmental protection system. At the same time, it actively develops diversification and has formed mainly carbon steel and stainless steel, covering pipes, profiles, plates and other products. Exported to more than 60 countries and regions including Russia, Canada, India, Brazil, and Southeast Asia.


FAQ

What is the size of casing?
Generally, casing sizes can range from 4.5 inches to 36 inches in diameter.

Can we visit your factory?
Warmly welcome, we will pick you up once we have your schedule.

How can I get a quotation from you?
You can leave us message, and we will reply every message in time. Or we may talk on line.








Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients

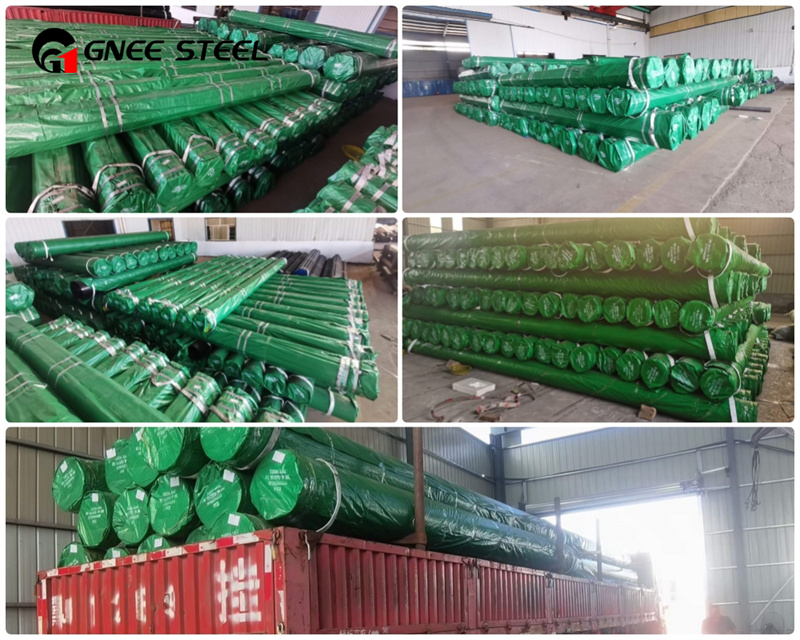

Logistics arrangement for client to help in cost cutting
