NICKEL ALLOY PIPE
NICKEL ALLOY TUBE
NICKEL ALLOY SUPPLIER
NICKEL ALLOY PIPES
NICKEL ALLOY PIPE
NICKEL ALLOY TUBE
NICKEL ALLOY SUPPLIER
NICKEL ALLOY PIPES

NICKEL ALLOY PIPE

Nickel alloys are used almost everywhere, from engines, generators and reactors to oil refinery, chemical refinery and even everyday products such as doorknobs, eyeglasses and musical instruments. Over a hundred years of development have given nickel alloys their vast applications and strength and yielded a variety of forms. We supply Inconel®, Monel®, and Incoloy® alloys for everyday uses as well as high-stress industrial, energy or chemical environments.
Schedule :SCH 5 , 10, 20 , 40 , STD , 60 , 80 , XS
Length :Single Random, Double Random & Cut Length
Quote Now
Send E-mail
Product Introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product Introduction
Standards :GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Specifications :ASTM / ASME SB 163 / 165 / 167 / 464/ 517 / 619 / 622 / 626 / 704 / 705.
Size:OD: NPS 1/8 -80, BN 6 - 2000, 10.3 - 2030 , Alao capilary WT: Sch5s-Sch160s, SchXXH, STD,XS,XXS
Schedule :SCH 5 , 10, 20 , 40 , STD , 60 , 80 , XS
Length :Single Random, Double Random & Cut Length
Form:Round, Square, Rectangular, Hydraulic Etc
Type:Seamless / ERW / EFW / Welded / Fabricated / LSAW Pipes
Grade:alloy 625、inconel 625 、Inconel 600 、Inconel 601 、Inconel 625、Inconel 617、Inconel 690、 Inconel、718 Inconel X-750、Incoloy 800H、Incoloy 825、N02200、N02201、N04400、N08825、N06600、Monel 400 、Monel K500、N06601、N06625、N06690、N08810、N08825、N08020、N08028、N08031、N010276、N010665、N06022、N06030、GH3030、GH3036 GH5188 Inconel706 Inconel600 InconelX-750 Inconel718 Inconel625 Inconel 617 Inconel601 Inconel690 NS143 NS131 NS113 NS112,Incoloy800H, NO8810 NS111 NS336 NS142 Incoloy825 NS355 Hastelloy C-4
Description
Material Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy
Shape Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet
Grade N02200、N02201、N04400、N06600、N06601、N06625、N06690、N08810、N08825、N08020、N08028、N08031、N010276、N010665、N06022、N06030、GH3030、GH3036 GH5188 Inconel706 Inconel600 InconelX-750 Inconel718 Inconel625 Inconel 617 Inconel601 Inconel690 NS143 NS131 NS113 NS112,Incoloy800H, NO8810 NS111 NS336 NS142 Incoloy825 NS355 Hastelloy C-4
Monel K500，N05500
Specification Others: 253Ma,254SMo,654SMo,F50(UNS S32100)F60,F61,F65,1J22,N4,N6 etc
Alloy : alloy 625,Alloy 20/28/31
Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;
Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,Hastelloy C-4 /
UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665
Haynes: Haynes 230/556/188;
Inconel Series: Inconel 600/601/602CA/617/625/690/713/718/738/X-750,Carpenter 20;
Inconel 718 / UNS N07718 / N04400/N06600/N08825/DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851,
Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816
Incoloy: Incoloy 800/800H/800HT/825/925/926;
GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044
Monel: Monel 400/K500/R405
Nitronic: Nitronic 40/50/60;
Nimonic: Nimonic 75/80A/90/A263 ;
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Product
Characteristics		 1. According to the preparation process can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys.
2. According to the strengthening mode, there are solid solution strengthening type, precipitation
strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc..
Standard GB,AISI,ASTM,DIN,EN,SUS,UNS etc
Inspection ISO, SGS, BV, and so on.
Application High-temperature components such as turbine blades, guide vanes, turbine disks, high pressure
compressor disks, machine manufacturing
and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines

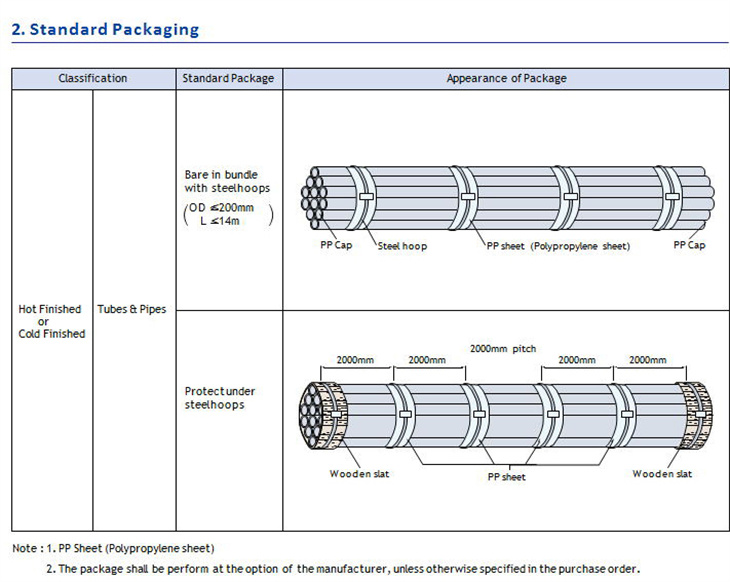

Packaging 1. cases packed in wooden cases
2. paper packaging
3. plastic packing
4. foam packaging
Packaging according to customer requirements or products
Delivery 7-25days or according to the product
Payment L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments
for offline orders.
Technical data
STOCKED SIZES
SIZE NICKEL ALLOY ALLOY ALLOY ALLOY ALLOY ALLOY ALLOY ALLOY ALLOY ALLOY SIZE
1/16″ 200/1 400 600 601 625 718 800 825 C276 20 904L 1.65mm
0.01   X X                 .25mm
0.02     X                 .51mm
1/8″ 200/1 400 600 601 625 718 800 825 C276 20 904L 3.18mm
0.01     X                 0.25
0.012     X                 3.05mm
0.016     X                 .31mm
0.02   X X   X             .51mm
0.028 X X X   X             .71mm
0.035 X X X             X   .89mm
3/16″ 200/1 400 600 601 625 718 800 825 C276 20 904L 4.76mm
0.01     X                 .25mm
0.016 X   X                 .31mm
0.02     X                 .51mm
0.028 X   X   X             .71mm
0.035 X X X   X   X X       .89mm
0.049     X       X X       1.24mm
1/4″ 200/1 400 600 601 625 718 800 825 C276 20 904L 6.35mm
0.016     X                 .31mm
0.02 X X X                 .51mm
0.028 X X X   X         X   .71mm
0.035 X X X   X   X X X X   .89mm
0.049 X X X   X X X X   X   1.24mm
0.065 X X X   X   X X   X   1.65mm
0.083   X                   2.11mm
5/16″ 200/1 400 600 601 625 718 800 825 C276 20 904L 7.94mm
0.028             X         .71mm
0.035 X X X                 .89mm
0.049     X                 1.24mm
0.065 X X X                 1.65mm
3/8″ 200/1 400 600 601 625 718 800 825 C276 20 904L 9.53mm
0.02     X                 .51mm
0.028 X X X   X             .71mm
0.035 X X X   X   X X X X   .89mm
0.049 X X X   X   X X   X   1.24mm
0.065 X X X   X   X X   X   1.65mm
0.083   X X                 2.11mm
7/16″ 200/1 400 600 601 625 718 800 825 C276 20 904L 11.1mm
0.035     X                 .89mm
0.065     X                 1.65mm
1/2″ 200/1 400 600 601 625 718 800 825 C276 20 904L 12.7mm
0.028 X X X       X         .71mm
0.035 X X X   X X X X X X   .89mm
0.049 X X X   X   X X     X 1.24mm
0.058   X X                 1.47mm
0.065 X X X   X   X X X X   1.65mm
0.083   X X             X   2.11mm
0.095   X X                 2.41mm
0.109     X                 2.77mm
0.12     X                 3.05mm
9/16″ 200/1 400 600 601 625 718 800 825 C276 20 904L 14.3mm
0.035   X X       X         .89mm
0.049   X X       X     X   1.24mm
0.065   X X       X         1.65mm
0.083             X         2.11mm
5/8″ 200/1 400 600 601 625 718 800 825 C276 20 904L 15.9mm
0.035 X X X       X     X   .89mm
0.049 X X X   X   X X   X   1.24mm
0.065 X X X   X   X     X   1.65mm
0.083   X X                 2.11mm
0.095   X X                 2.41mm
0.12     X                 3.05mm
3/4″ 200/1 400 600 601 625 718 800 825 C276 20 904L 19.1mm
0.028     X                 .71mm
0.035 X X X   X   X X   X   .89mm
0.049 X X X   X   X X   X   1.24mm
0.065 X X X   X X X X X X X 1.65mm
0.083 X X X   X   X X   X   2.11mm
0.095   X X                 2.41mm
0.109 X X X             X   2.77mm
0.12 X   X   X             3.05mm
0.125   X X                 3.18
7/8″ 200/1 400 600 601 625 718 800 825 C276 20 904L 22.2mm
0.035   X X       X         .89mm
0.049   X X       X         1.24mm
0.065 X X X       X         1.65mm
0.083 X   X                 2.11mm
0.12     X                 3.05mm
1″ 200/1 400 600 601 625 718 800 825 C276 20 904L 25.4mm
0.028         X             .71mm
0.035 X X X   X   X     X   .89mm
0.049 X X X   X X X     X   1.24mm
0.065 X X X X X   X X   X   1.65mm
0.083 X X X   X   X X   X   2.11mm
0.095   X X                 2.41mm
0.109 X X X             X   2.77mm
0.12   X X       X         3.05mm
0.125     X                 3.18
0.134 X X
1 1/8″ 200/1 400 600 601 625 718 800 825 C276 20 904L 28.6mm
0.049   X
1 1/4″ 200/1 400 600 601 625 718 800 825 C276 20 904L 31.8mm
0.035   X X   X             .89mm
0.049   X                   1.24mm
0.065 X X X   X   X     X   1.65mm
0.083 X X X       X         2.11mm
0.095   X                   2.41mm
0.109     X                 2.77mm
0.12 X   X                 3.05mm
0.125   X                   3.18
1 1/2″ 200/1 400 600 601 625 718 800 825 C276 20 904L 38.1mm
0.028         X             .71mm
0.035     X   X             .89mm
0.049   X X   X             1.24mm
0.065 X X X   X   X     X   1.65mm
0.083 X X X                 2.11mm
0.095   X X                 2.41mm
0.109 X X X                 2.77mm
0.12 X X X                 3.05mm
0.125     X                 3.18
1 5/8″ 200/1 400 600 601 625 718 800 825 C276 20 904L 41.3mm
0.065   X                   1.65mm
0.083 X                     2.11mm
1 3/4″ 200/1 400 600 601 625 718 800 825 C276 20 904L 44.5mm
0.065   X X   X             1.65mm
1 7/8″ 200/1 400 600 601 625 718 800 825 C276 20 904L 47.6mm
0.083 X                     2.11mm
2″ 200/1 400 600 601 625 718 800 825 C276 20 904L 50.8mm
0.028         X             .71mm
0.035     X   X             .89mm
0.049     X   X             1.24mm
0.065 X X X   X   X         1.65mm
0.083 X X X             X   2.11mm
0.095     X                 2.41mm
0.109 X   X                 2.77mm
0.12   X X       X         3.05mm
0.125     X       X         3.18
2 1/4″ 200/1 400 600 601 625 718 800 825 C276 20 904L 57.2mm
0.035         X             .89mm
0.049         X             1.24mm
0.12     X                 3.05mm
2 1/2″ 200/1 400 600 601 625 718 800 825 C276 20 904L 63.5mm
0.065 X X X   X             1.65mm
0.083 X X                   2.11mm
0.109             X         2.77mm
0.12   X X                 3.05mm
3″ 200/1 400 600 601 625 718 800 825 C276 20 904L 76.2mm
0.065 X X X       X         1.65mm
0.083 X X X                 2.11mm
0.12 X   X                 3.05mm
0.125     X                 3.18
0.25     X                 6.35
3 1/4″ 200/1 400 600 601 625 718 800 825 C276 20 904L 82.6mm
0.125     X                 3.18
3 1/2″ 200/1 400 600 601 625 718 800 825 C276 20 904L 88.9mm
0.375                       9.53mm
Standard
Standard – ASTM A270,ASTM A249,ASTM A511,ASTM A778 ,ASTM A312,ASTM A358,ASTM A409,ASTM A213,ASTM A790,ASTM A268,ASTM A269,ASTM A554,ASTM B338,ASTM B673,ASTM B674,ASTM B677,ASTM B675, ASTM B676, ASTM B690,ASTM  A928,ASME B36.19,ASME B36.10– EN10216-5,EN10217-7,DIN 17456,DIN 17458
– JIS G3463,JIS G3119,JIS G3446,JIS G3218,JIS G3258,JIS G3448,JIS H4631– DEP 31,DEP 40,DEP 20,DEP 32,DNV-OS-F101
Size Range OD: NPS 1/8 -80, BN 6 – 2000, 10.3 – 2030 , Alao capilaryWT: Sch5s-Sch160s, SchXXH, STD,XS,XXSLength:   Customization
Grade S32750, 00Cr25Ni7Mo4N, 022Cr25Ni7Mo4N, 1.441, 1.4307/1.4301/304L/3, S30408/S30403, 0Cr18Ni9DQ, 1.4948/304H, 07Cr19Ni10, S30409, 1.4948, 06Cr23Ni13, S30908, SUS309S, SUS310S, 1.4845, S31008, S31008S, 06Cr25Ni20, 0Cr25Ni20, 1.4401/1.4404/316/31, S31635, SUS316Ti, 1.4571, 1.4571/316Ti, S31703, 022Cr19Ni13Mo3, 00Cr17Ni12Mo2, S31703, SUS317L, 1.4438, S41008, SUS410S, 1.4, 06Cr13, S11306, 0Cr13, S42000, SUS420J1, 1.4021, SUS420J2, 1.4028, S43020, 430F, SUS430F, 1.4104, , 301, 302, 303, 305, 309, 310, 316, 317, 321, 347, 403, 405, 416, 431, 444, 2205, 2507, 304/304L, 304DQ, 304H, 309S, 310S, 316/316L, 316Ti, 317L, 410S, 420J1, 420J2, 430F, 254Smo, 1.4529, HC276, 800, 825, 600, 601, 718, 750, 400, 630, XM19, C4, S30815, S31254, 174PH, F51, F60, F53, S32760, 253MA, HC2000, 800H, 926, GH2132, GH4169, GH3030, GH3039, GH4151, N04400, HB3, 0Cr13Ni5Mo, N08367, N08810

ASTM B111 / ASME SB111 Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock
ASTM B161 / ASME SB161 Standard Specification for Nickel Seamless Pipe and Tube
ASTM B163 / ASME SB163 Standard Specification for Seamless Nickel and Nickel Alloy Condenser and Heat-Exchanger Tubes
ASTM B165 / ASME SB165 Standard Specification for Nickel-Copper Alloy (UNS N04400)* Seamless Pipe and Tube
ASTM B167 / ASME SB167 Standard Specification for Nickel-Chromium-Iron Alloys, Nickel-Chromium-Cobalt-Molybdenum Alloy (UNS N06617),and Nickel-Iron-Chromium-Tungsten Alloy (UNS N06674) Seamless Pipe and Tube
ASTM B395 / ASME SB395 Standard Specification for U-Bend Seamless Copper and Copper Alloy Heat Exchanger and Condenser Tubes
ASTM B407 Standard Specification for Nickel-Iron-Chromium Alloy Seamless Pipe and Tube
ASTM B423 / ASME SB423 Standard Specification for Nickel-Chromium-Molybdenum-Columbium Alloys (UNS N06625 and UNS N06852) and Nickel-Chromium-Molybdenum-Silicon Alloy (UNS N06219) Pipe and Tube
ASTM B444 / ASME SB444 Standard Specification for Nickel-Chromium-Molybdenum-Columbium Alloys (UNS N06625 and UNS N06852) and Nickel-Chromium-Molybdenum-Silicon Alloy (UNS N06219) Pipe and Tube
ASTM B622 / ASME SB622 Standard Specification for Seamless Nickel and Nickel-Cobalt Alloy Pipe and Tube
ASTM B668 / ASME SB668 Standard Specification for UNS N08028 and N08029 Seamless Pipe and Tube
ASTM B677 / ASME SB677 Standard Specification for UNS N08925, UNS N08354, and UNS N08926 Seamless Pipe and Tube
ASME SB690 / ASME SB690 Standard Specification for Iron-Nickel-Chromium-Molybdenum Alloys (UNS N08366 and UNS N08367) Seamless Pipe and Tube
ASTM B705 / ASME SB705 Standard Specification for Nickel-Alloy (UNS N06625, N06219 and N08825) Welded Pipe
ASTM B729 / ASME SB729 Standard Specification for seamless UNS N08020, UNS N08026, and UNS N08024 nickel alloy pipe and Tube
ASTM B829 / ASME SB829 Standard Specification for General Requirements for Nickel and Nickel Alloys Seamless Pipe and Tube

Chemical composition:
Grade Chemical Composition
C
max		 Si max Mn max P
max		 S
max		 Ni Cr Mo Ti
200 0.15 0.35 0.35   0.010 99 min
201 0.02 0.35 0.35   0.010 99 min
400 0.30 0.50 2.00   0.024 63 min
600 0.15 0.50 1.00   0.015 72 min 14 – 17
601 0.10 0.50 1.00   0.015 58 – 63 21 – 25
625 0.10 0.50 0.50 0.015 0.015 58 min 20 – 23 8 – 10 0.40 max
800 0.10 1.00 1.50 0.03 0.015 30 – 35 19 – 23   0.15 0.60
800H 0.05 0.10 1.00 1.50   0.015 30 – 35 19 – 23   0.15 0.60
825 0.05 0.50 1.00   0.03 38 – 46 19.5 23.5 2.5 3.5 0.6 1.2
904L 0.02 1.00 2.00 0.030 0.015 24 – 26 19 23 4 5

Nickel Alloy Physical Properties
ALLOY NICKEL ALLOY DENSITY THERMAL , CONDUCTIVITY THERMAL LINEAR , EXPANSION COEFF. , (20-95 °C) ELECTRICAL RESISTIVITY , AT 20°C
G/CM³ W/M K 10-6/K ΜΩ-CM
NI 200/201 8.89 70.20 13.3 9
NI 205/205 LC 8.89 75.00 13.3 8.9

Process
Packing










Related Products
Corten Steel S355JOWP Structural Steel Pipe
Corten Steel S355JOWP Structural Steel Pipe
S355JOW belongs to the European standard weather-resistant steel pipe. Weather-resistant structural steel is atmospheric corrosion-resistant steel and is a low-alloy high-strength structural steel.
Quote Now Learn More
ASTM A213 T22 Alloy Steel Seamless Tube
ASTM A213 T22 Alloy Steel Seamless Tube
GNEE Steel is a well-known manufacturer of ASME SA 213 / ASTM A213 T22 Tubes, which are recognized for its durability, resistance power contrary to corrosion, strength, and more.
Quote Now Learn More
ASTM A709 Grade 50W Pipe
ASTM A709 Grade 50W Pipe
A709-50W is American standard weathering steel produced according to ASME standards, with a thickness between 3mm and 100mm. It is often used in steel structures or large buildings such as highways and bridges that are exposed to harsh climate environments for a long time.
Quote Now Learn More
15CrMoG Seamless Alloy Steel Pipe
15CrMoG alloy steel pipe is a high-performance alloy structural steel pipe, mainly used in industrial production in complex environments such as high temperature, high pressure, and corrosion resistance.
Quote Now Learn More
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
Related Projects
French oil pipeline project
2024-09-03 10:14:09
French oil pipeline project
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
Oil and gas
2022-08-02 11:04:28
Oil and gas
Energy
2022-08-02 10:09:56
Energy
TAGS:
nickel alloy
Inquiry
PRODUCTS
Alloy Steel Pipe
Seamless Steel Pipe
Welded Steel Pipe
Stainless Steel Pipe
Carbon Steel Pipe
Oil Pipelines
Pipe Fitting and Flange
Hollow Section
Aluminum
API Steel Pipe
Titanium
Finned Tube
PROJECT
Oil and gas
Construction
Energy
Marine
Mining
factory
equipmet
process
quality
service
about us
Certificate
Team
Our Advantage
CONTACT US
contact us
Email: pipe@gneesteel.com
Phone: +86 15824687445
Tel: +86 372-5055135
WhatsApp/Wechat：+86 15824687445
Skype: mmkelly1314
Address: No. 4-1114,Beichen Building,Beicang Town,Beichen District Tianjin,China.
Friendship link:
Automotive Steel Galvanized Steel Coil
Copyright © GNEE(TIANJIN)MULTINATIONAL TRADE CO.,LTD All Rights Reserved.
Support: Coverweb
