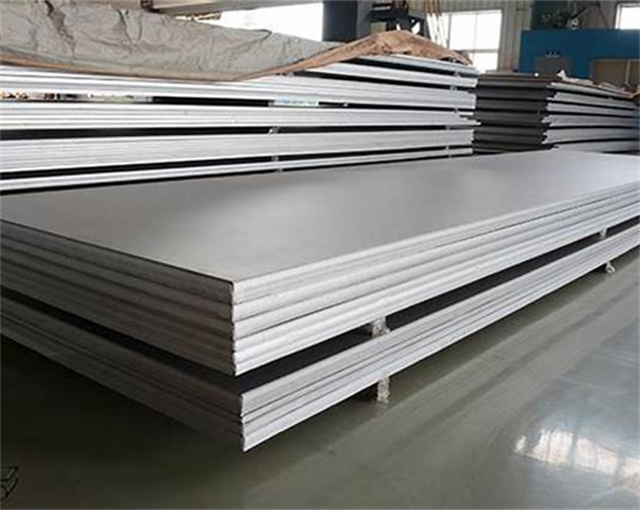

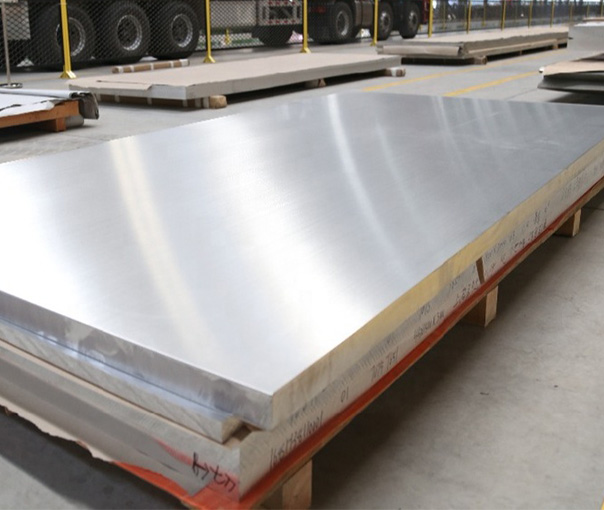

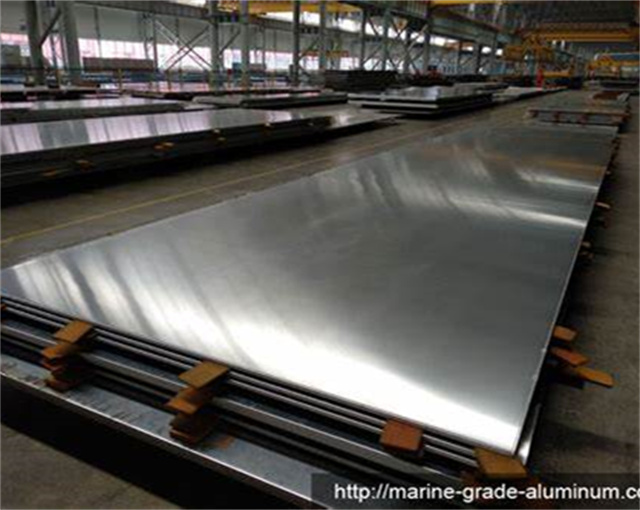

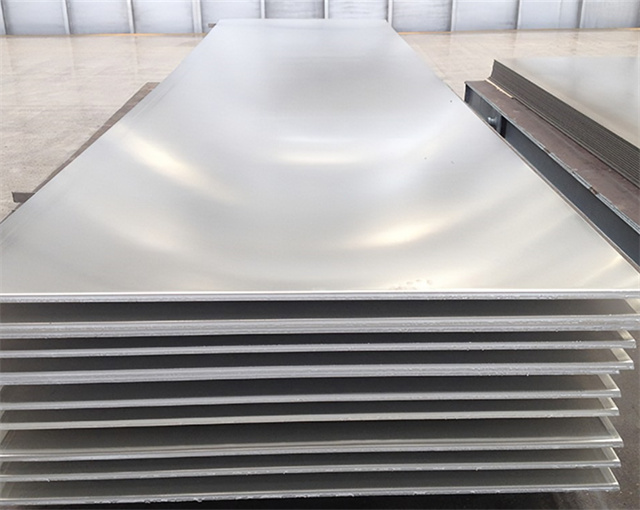

3003 ALUMINUM PLATE&SHEET
Aluminum Sheet 3003
3003 ALUMINUM SHEET
3003 ALUMINUM FLATE PLATE
3003 ALUMINUM PLATE&SHEET
Aluminum Sheet 3003
3003 ALUMINUM SHEET
3003 ALUMINUM FLATE PLATE

3003 ALUMINUM PLATE&SHEET

3003 aluminum plate is a typical Al-Mn alloy, has good formability, corrosion resistance and weldability It is commonly used in the production of lightweight battery car shell..
Thickness:0.2-7.0 mm
Width:100-2200mm
Product Introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product Introduction
Thickness:0.2-7.0 mm
Width:100-2200mm
Length:500~10000mm
Weight:0.5-7.0 tons per pallet or customized
Temper:HO-H321
Surface treatment:Mill finished and silvery aluminum
Standards:ASTM B209 / ASME SB209
Type:HR / CR Sheet / Plates/ Strips/ Coils/ Chequered Plates
Tolerances:Thickness: +/-.012TO +/-.015 DEPENDING ON WIDTH Width: +/-.125 TO +.375 DEPENDING ON WIDTH Length: +/-.125 TO +/-.25 DEPENDING ON LENGTH
Description
3003 aluminum plate is a typical Al-Mn alloy, has good formability, corrosion resistance and weldability It is commonly used in the production of lightweight battery car shell, cooking utensils, food storage devices, cans on the transport equipment, Warehouse
3003 aluminium alloy & Aluminum Sheet 3003 Parameters
Aluminum alloy model Aluminum Sheet 3003
Material state that can be produced O,H12,H14,H16H18,H19,H22,H24 H26,H28,H112
Thicknessmm 0.2-500
Widthmm 20-2650
Lengthmm 500-16000
Typical Application Silo, antenna pot material, power battery case, car heat shield, etc.

3003 Aluminum Sheet/Plate Advantage 3003-H14 Aluminum Sheet – (ASTM B209, QQ-A-250/2) Excellent weldability and formability, with good corrosion resistance makes 3003 Aluminum Sheet a popular and economical choice. 3003 Aluminum Sheet has a smooth, semi-shiny finish and is popular for many applications, including: fuel tanks, food & chemical handling, trailer siding & roofing, etc. Mill Finish – Not Polished Non-magnetic, Brinell = 40, Tensile = 22,000, Yield = 21,000 (+/-) The reason this metal is widely used is because it is affordable and strong. Compared to the 1100 series of alloys, 3003 aluminum is 20 percent stronger. This is due to it being integrated with 1.20 percent manganese. It is considered a pure aluminum and is frequently used in various applications, such as for storage tanks, tool boxes, walkways, truck beds, decorative trim and chemical equipment. It can also be used to create fan blades, siding, trailer components, kitchen equipment, cooking utensils and for signage applications.

3003 Aluminum Sheet Features: FEATURES: Excellent at resisting moisture and strong for its light weight. WORKABLE: Welds well with the proper equipment. Easy to Drill, Machine, Shear and Form. USES: Skinning Frames, Truck Beds, Tool Boxes, Trays, Drip Pans, Ornamental Work, Etc. 3003 aluminum has a lot of great characteristics that make it a popular choice. Other than being weldable and corrosion-resistant, it also has a surface that has a highly polished finish, making it an attractive choice. Although thin, it cannot be bent easily, instead requiring special tools to do so. Aluminum Sheet 3003 H14 Bare is an excellent choice for chemical equipment and general sheet metal projects due to its superior corrosion resistance and good workability. Aluminum 3003 H14 bare sheet works well in fabrication and decorative architectural uses because it is highly workable, formable, and weldable, while being capable of withstanding outdoor weather.

Application: With the excellent rust proof property, 3003 aluminum sheets are appropriate to be used in humid environments like refrigerators or air conditioners ducts, mechanical parts, or external packing. 3003 aluminum sheets are also widely applied to ships/vessels, vehicles, automobile and inserter welding assemblies, fireproof pressure vessels, refrigeration equipment, television tower, drilling equipment, transport and communication facilities, missile elements, plate armors and so on.

Performance:
1)Good corrosion resistance and moderate strength.;
2)Excellent weldability, formability, and machinability;
Technical data
PRODUCTNAME ALLOYS NUMBER TEMPER THICKNESS(MM) WIDTH(MM) LENGTH(MM) APPLICATION
3003 Aluminum sheet /Plate 3003 O,H12,H14,H16H18,H19,H22,H24,H26,H28,H32,H34 H36,H38 0.2-7.0 100-2200 600-6000 Power battery shell, phone shell and so on



Standard
ASTM Standards:ASTM B209 and ASME SB209 ASTMB209–This specification covers aluminum and aluminum alloy flat sheet,coiled sheet, and plate in various alloys. 3003 aluminium alloy & Aluminum Sheet 3003 Chemical Composition
European Standard OLD WNr UNS ISO USA (AA) GERMANY (DIN)
AW-AlCu4Mg1 AU4G1 3.0517 A93003 AlCu4Mg 3003 AlCuMg2

ASME SFA5.3 (E3003) ASTM B234 ASTM B345 AWS A5.3 (E3003) QQ A-200/1
ASTM B209 ASTM B241 ASTM B404 MIL A-52174 QQ A-225/2
ASTM B210 ASTM B247 ASTM B483 MIL E-15597 (MIL-3003) QQ A-250/2
ASTM B211 ASTM B313 ASTM B491 MIL P-25995 QQ A-430
ASTM B221 ASTM B316 ASTM B547 MIL S-12875 QQ WW-T-700/2

Metal Ratio of 3003 aluminum alloy (%)
Si 0.6
Fe 0.7
Cu 0.05-0.20
Mn 1.0-1.5
Zn 0.1
Ti 0.15
Other 0.1
Al remain

Aluminium 3003 Sheet & Plates Equivalent Grades :
European Standard OLD WNr UNS ISO USA (AA) GERMANY (DIN)
AW-AlCu4Mg1 AU4G1 3.0517 A93003 AlCu4Mg 3003 AlCuMg2

Mechanical Properties of Aluminium 3003 Plates
Properties Metric Imperial
Tensile strength 130 MPa 18855 psi
Yield strength 125 MPa 18130 psi
Shear strength 83 MPa 12039 psi
Fatigue strength 55 MPa 7977 psi
Elastic modulus 70-80 GPa 10153-11603 ksi
Poisson’s ratio 0.33 0.33
Elongation 10% 10%
Hardness 35 35

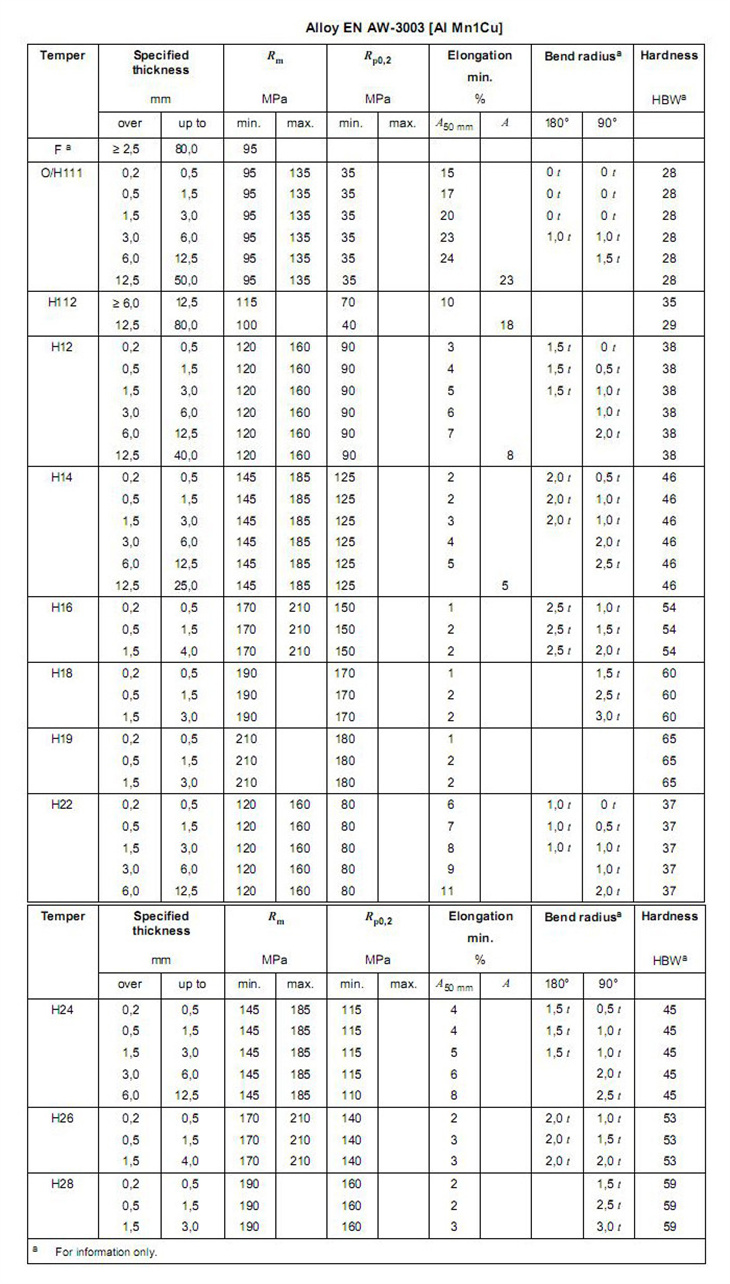

Material Condition Tensile Strength (ksi min) Yield Strength (ksi min) Elongation % in 2″ 0.064 plate Min 90° Cold Bend Radius for 0.064″ Thick
3003-0 plate 0.064″ thick 3003-0 14-19 5 25 0
3003-H12 plate 0.064″ thick 3003-H12 17-23 12 6 0
3003-H14 plate 0.064″ thick 3003-H14 20-26 17 5 0
3003-H16 plate 0.064″ thick 3003-H16 24-30 21 4 1/2 – 1 1/2 T
3003- plate 0.064″ thick 3003-H18 27 min 24 4 1 1/2 -3T

Process
Packing

Standard export packing with wooden cases or wooden pallets as required by clients. Aluminum sheet, plate and coil products are wrapped by plastic films and brown papers. There are two kinds of packaging, which is eye to wall or eye to sky. Generally speaking, there are 2 tons in one package, and loading 18-22 tons in 1×20′ container, and 20-24 tons in 1×40′ container.
Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
Related Projects
