ALUMINIUM PIPE

Aluminum pipes are an excellent choice in building indoor and outdoor railings. The aluminum is strong and corrosion resistant. This 8 ft.
Types:Seamless / ERW / Welded / Fabricated / LSAW Pipes
Form:Round, Square, Rectangular, Coil, U Tube
Product Introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product Introduction
Types:Seamless / ERW / Welded / Fabricated / LSAW Pipes
Grades:5083, 6061, 6082, 7075, 7001, 7045, 7050, 3003, 2014, 2024, 2017, 2011, 1200
Size:15mm NB to 150mm NB (1/2” to 6”), 7″ (193.7mm OD to 20″ 508mm OD)
Form:Round, Square, Rectangular, Coil, U Tube
End:Plain End, Bevelled End
Surface:Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE
Thickness:SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Length:ouble Random, Single Random, Cut Length
Description
Aluminum pipes are an excellent choice in building indoor and outdoor railings. The aluminum is strong and corrosion resistant. This 8 ft. long, 1 in. IPS Schedule 40 pipe has an outside diameter (OD) of 1.315 in., a wall thickness of 0.113 in., and an inner diameter (ID) of 1.049 in.

Pipe is made of aluminum with a satin clear anodized finish
Pipe is OSHA, IBC, BOCA, SBC, and UBC compliant, non-magnetic, non-sparking, and corrosion resistant
Aluminum is a 6063 alloy with a T5 hardness rating
Light weight for easy installation
Aluminium 6061, 6082, 5083, 5086, 5052 ,6063, 7075, 1100 Seamless Pipe Aluminium 6061, 6082 Seamless Pipe
Aluminium 5086, 5052, 1100 Seamless Pipe
7075, 1100 Aluminium Seamless Pipe
UNS A96061 Seamless Pipe
WERKSTOFF NR. 3.1255 Seamless Pipe
ASTM B211 5083 Aluminium Seamless Pipes
Aluminium 6061, 6082, 5083, 5086, 5052 ,6063, 7075, 1100 Welded Pipe Aluminium 7075, 1100 Welded Pipe
5086, 5052 Aluminium Welded Pipe
Aluminium 5083, 1100 ERW Pipe
Aluminium 6061, 6082 EFW Pipe
6082, 5052 Aluminium Welded Pipe
UNS A96061 Welded Pipe
WERKSTOFF NR. 3.1255 Welded Pipe
ASTM B619 6061, 1100 Aluminium Welded Pipes
Aluminium 6061, 6082, 5083, 5086, 5052 ,6063, 7075, 1100 Round Pipe Aluminium 5086, 5052, 1100 Round Pipe
5086, 7075 Aluminium Round Pipe
6061, 5086 Aluminium Round Pipe
UNS A96061 Round Pipe
Aluminium UNS A96061 Round Pipe
ASTM B211 6061 Aluminium Round Pipes
Custom Aluminium 6061, 6082, 5083, 5086, 5052 ,6063, 7075, 1100 Pipe Aluminium 5052 ,6063, 1100 Custom Pipe
6063, 7075 Aluminium Custom Pipe
6082, 6063 Aluminium Custom Pipe
UNS A96061 Custom Pipe
WERKSTOFF NR. 3.1255 Custom Pipe
ASME SB211 Aluminium 5086 Custom Pipes

Please feel free to contact us for other kinds of aluminum tubes
Technical data
OM SIZE OUTSIDE
DIA (D)
WALL THICKNESS IN MM (T) METRIC SIZE
SCH 10S SCH 10 SCH
40 S
STD Weight SCH 40 SCH 80s SCH 80
1/4 “ 13.72 1.65   2.24 2.24 2.24 3.02 3.02
3/8″ 17.15 1.65   2.31 2.31 2.31 3.2 3.2
1/2″ 21.34 2.11   2.77 2.77 2.77 3.73 3.73 15
3/4″ 26.67 2.11   2.87 2.87 2.87 3.91 3.91 20
1″ 33.4 2.77   3.38 3.38 3.38 4.55 4.55 25
1 1/4″ 42.16 2.77   3.56 3.56 3.56 4.85 4.85 32
1 1/2″ 48.26 2.77   3.68 3.68 3.68 5.08 5.08 40
2″ 60.32 2.77   3.91 3.91 3.91 5.54 5.54 50
2 1/2″ 73.02 3.05   5.16 5.16 5.16 7.01 7.01 65
3″ 88.9 3.05   5.49 5.49 5.49 7.62 7.62 80
3 1/2″ 101.6 3.05   5.74 5.74 5.74 8.08 8.08 90
4″ 114.3 3.05   6.02 6.02 6.02 8.56 8.56 100
5″ 141.3 3.4   6.55 6.55 6.55 9.52 9.52 125
6″ 168.27 3.4   7.11 7.11 7.11 10.97 10.97 150
8″ 219.07 3.76   8.18 8.18 8.18 12.7 12.7 200
10″ 273.05 4.19   9.27 9.27 9.27 12.7 15.08 250
12″ 323.85 4.57   9.52 9.52 10.31 12.7 17.47 300
14″ 355.6 4.77 6.35   9.52 11.12   19.05 350
16″ 404.6 4.77 6.35   9.52 12.7   21.44 400
18″ 457.2 4.77 6.35   9.52 14.27   23.82 450

Sizes (In mm) :
7×5 14×12 25×19 38×32 50×44 85×75
8×6 19×17 32×28.5 45×25 51×25 101×91
10×8 22×19 38×34 50×46 76×70 115×97
12.5×10 25×22 38×34 50×46 76×57 160×140

DETAILS :
Alloy & Temper Size in mm Application
7075t6 14*0.8 / 16*0.7 / 18*0.7 Ski pole / tracking pole
7075t6 7*0.3 / 9*0.4 Arrow tubes
2014t6, 7075t6, 7075t76 22*2.5 / 30*4.8 Handle bar
aa3003, 6063, 6061 16*1.2 / 12*1.75 / 16*1.75 / 12*2 / 7.94*1 / 9.52*1 / 12.7*1.2 / 16*2 Automobile radiator connector
5046-h111   Condenser & heat exchanger
d97, 1015   Automobile heat sink & radiator tubes
7001t6 8.5*0.7 / 9.5*0.7 / 11*0.7 / 7*1.2 Tent pole
aa7045, 7050, 6061 60.3*2.29(7046) 60.3*2.16(7050) 50.8*2.16(6061) Bat tubes
aa6061, 7005 26*18*1.6 / 36*18*1.4 / 65*25*2 / 64*42*1.8 Bike tubes rectangular
7075t6, 7050t7351 30.5*24.8 / 31.7*22.2 Bike shock absorbers
3003h16 40*0.8/40*0.9/25*0.9/30*0.9/120*0.9 /164*10/140*160 Copy drum
7075t6   Aircraft & rail seat components
Standard
ASTM B241 / ASME SB241 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipes
ASTM B345 / ASME S345 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipe for Gas and Oil Transmission and Distribution Piping Systems
ASTM B429 / ASME SB429 – Standard Specification for Aluminum-Alloy Extruded Structural Pipe and Tube
EN AW-AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Round Pipe
ISO AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Piping

    Mechanical Property
ALUMINUM
ALLOY
Grade Normal
Temper
Temper Tensile Strength
N/mm²
Yield Strength
N/mm²
Elongation% Brinell Hardness
HB
Plate Bar
1XXX 1050 O,H112,H O 78 34 40 - 20
1060 O,H112,H O 70 30 43 - 19
Al-Cu
(2XXX)
2019 O,T3,T4,T6,T8 T851 450 350 10 - -
2024 O,T4 T4 470 325 20 17 120
Al-Mn
(3XXX)
3003 O,H112,H O 110 40 30 37 28
3004 O,H112,H O 180 70 20 22 45
Al-Si (4XXX) 4032 O,T6,T62 T6 380 315 - 9 120
Al-Mg
(5XXX)
5052 O,H112,H H34 260 215 10 12 68
5083 O,H112,H O 290 145 - 20 -
Al-Mg-Si
(6XXX)
6061 O,T4,T6,T8 T6 310 275 12 15 95
6063 O,T1,T5,T6,T8 T5 185 145 12 - 60
Al-Zn-Mg
(7XXX)
7003 T5 T5 315 255 15 - 85
7075 O,T6 T6 570 505 11 9 150

Chemical Material Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

OTHERS

EACH

OTHERS

TOTAL

Al

MIN.

1070

0.20

0.25

0.04

0.03

0.03

0.04

0.03

0.03

99.70

1060

0.25

0.35

0.05

0.03

0.03

0.05

0.03

0.03

99.60

1050

0.25

0.40

0.05

0.05

0.05

0.05

0.03

0.03

99.50

1350

0.10

0.40

0.05

0.01

0.01

0.05

0.03

0.10

99.50

1145

0.55 Si + Fe

0.05

0.05

0.05

0.05

0.03

0.03

99.45

1100

0.95 Si + Fe

0.05-0.20

0.05

0.10

0.05

0.15

99.00

2024

0.50

0.50

3.8-4.9

0.30-0.9

1.2-1.8

0.10

0.25

0.15

0.05

0.15

Rem.

3003

0.6

0.7

0.05-0.20

1.0-1.5

0.10

0.05

0.15

Rem.

3004

0.30

0.7

0.25

1.0-1.5

0.8-1.3

0.25

0.05

0.15

Rem.

3005

0.6

0.7

0.30

1.0-1.5

0.20-0.6

0.10

0.25

0.10

0.05

0.15

Rem.

3104

0.6

0.8

0.05-0.25

0.8-1.4

0.8-1.3

0.25

0.10

0.05

0.15

Rem.

4004

9.0-10.5

0.8

0.25

0.10

1.0-2.0

0.20

0.05

0.15

Rem.

4104

9.0-10.5

0.8

0.25

0.10

1.0-2.0

0.20

0.05

0.15

Rem.

4043

4.5-6.0

0.8

0.30

0.05

0.05

0.10

0.20

0.05

0.15

Rem.

4045

9.0-11.0

0.8

0.30

0.05

0.05

0.10

0.20

0.05

0.15

Rem.

5005

0.30

0.7

0.20

0.20

0.50-1.1

0.10

0.25

0.05

0.15

Rem.

5050

0.40

0.7

0.20

0.10

1.1-1.8

0.10

0.25

0.05

0.15

Rem.

5052

0.25

0.40

0.10

0.10

2.2-2.8

0.15-0.35

0.10

0.05

0.15

Rem.

5252

0.08

0.10

0.10

0.10

2.2-2.8

0.05

0.03

0.10

Rem.

5056

0.30

0.40

0.10

0.05-0.20

4.5-5.6

0.05-0.20

0.10

0.05

0.15

Rem.

5657

0.08

0.10

0.10

0.03

0.6-1.0

0.05

0.02

0.05

Rem.

5182

0.20

0.35

0.15

0.20-0.50

4.0-5.0

0.10

0.25

0.10

0.05

0.15

Rem.

6061

0.40-0.8

0.7

0.15-0.40

0.15

0.8-1.2

0.04-0.35

0.25

0.15

0.05

0.15

Rem.

7075

0.40

0.50

1.2-2.0

0.30

2.1-2.9

0.18-0.28

5.1-6.1

0.20

0.05

0.15

Rem.

Rem.=Remainder

Process

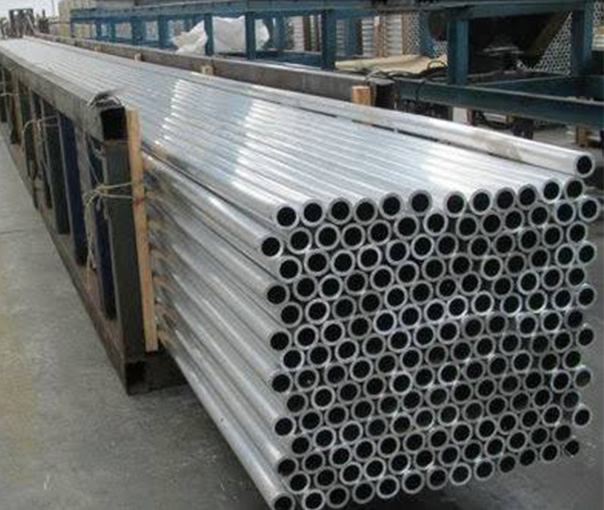

Packing
Our products are packed and labelled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation.
The standard export packaging, plastic film or craft paper covered.
Wooden case or wooden pallet is adopted to protect products from damage during the delivery.
In addition, clear labels are tagged on the outside of the packages for easy identification of the products and quality information.


Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
