ASTM A106 Pipe Specifications

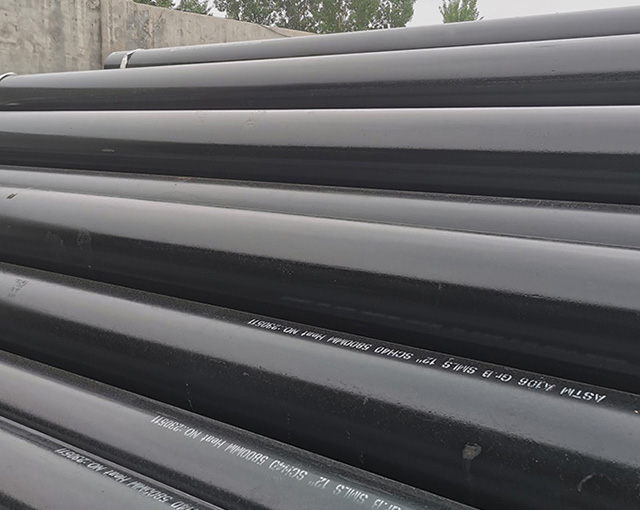

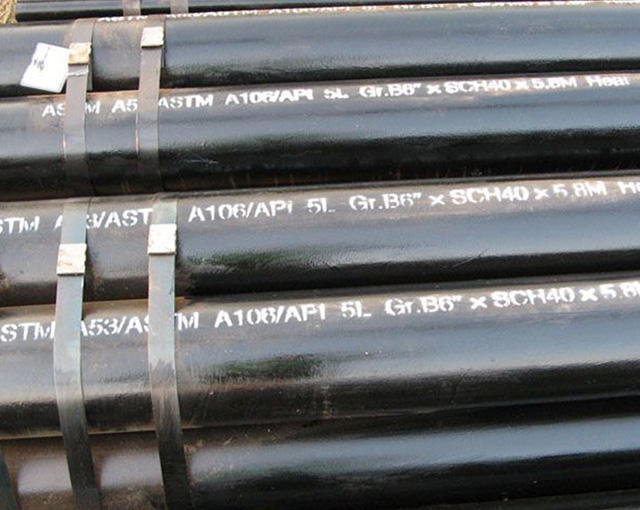

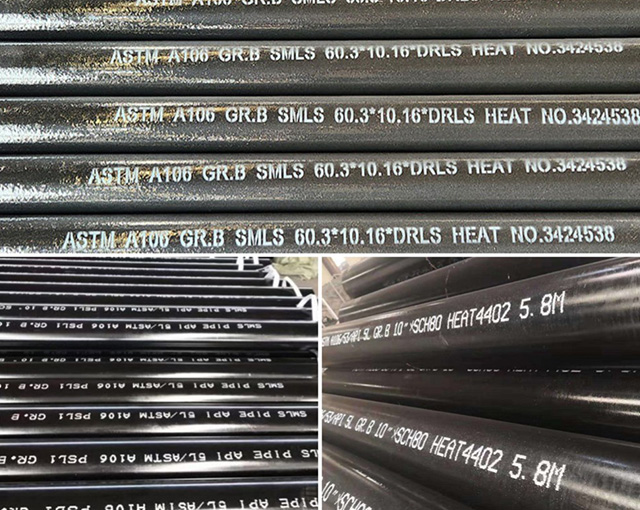

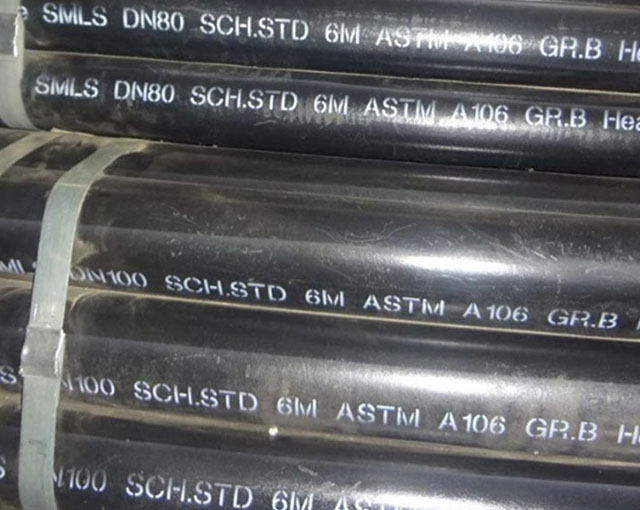

ASTM A106 steel pipe is a seamless carbon steel nominal wall pipe suitable for high temperature environments, which can meet the needs of various forming operations such as bending and flanging. Pipes with sizes of NPS 1-1/2 and below can be processed by hot working or cold drawing.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
ASTM A106 standard pipe material is divided into three grades: Grades A, B and C. Grade A is the pipe with the least carbon, and Grade C is the pipe with the most carbon. Grade B is the most commonly used because of its higher material strength.
A106 material pipe carbon content should be ≤0.23%, yield strength should be ≥275MPa, tensile strength should be ≥485MPa, and elongation should be ≥30%.
Data table

 Specifications of ASTM A106  Round Carbon Steel Tube

Pipe Type Seamless/Welded/ERW
End Type BE/PE
Schedule Sch 40
Standard B-36.10
Material Grade ASTM A106 GR.B GR.A GR.C
Nominal Bore (DN) Range from 1/8" to 48"
Outside Diameter (OD) (mm) Range from 10.3 to 1219
Wall Thickness (mm) As per Schedule S40
Yield Strength (MPa) ≥240 MPa for Grade B
Tensile Strength (MPa) ≥415 MPa for Grade B
Elongation (%) ≥30% for Grade B
Application High-temperature, high-pressure services, general services

ASTM A106  material grade standards and specifications provided by GNEE
Standards: ASTM, ASME and API, ANSI B 36.10
Process: cold rolling, cold drawing
Length: minimum 3 meters, maximum 18 meters
Thickness:3-12mm
Specializing in the production of large diameter ASTM A106 Class B pipes
Schedule: Schedule 20, 30, 40, Standard (STD), Extra Heavy Duty (XH), 80, 100, 120, 140, 160, XXH and heavier
ASME Standard: B36.10M
Cold drawn tube tolerance: +/-0.1mm
Cold rolled pipe: +/-0.05mm
End: plain end, bevel end, thread
company advantage

Why Choosing GNEE A106 steel pipe

GNEE produces A106 carbon steel pipe according to ASTM A106-2019 standard, which is applicable to the manufacture of seamless carbon steel pipes for high temperature services, such as high pressure boilers, furnace radiant heaters, pipelines in oil, gas and chemical processes, etc.
And provide ASME A106 seamless pipe with outer diameters ranging from 1/8 inch (3.18 mm) to 48 inches (1219 mm), and pipe wall thickness from Schedule 10 to Schedule XXS.
Besides, we also provide uncoiling, cutting, welding, painting service etc.
If you are looking for seamless pipes, please contact us in time to get a quote!

FAQ
Q. What is A106 pipe equivalent to?
A. ASTM A106 Grade B pipe is considered equivalent to ASTM A53 Grade B and API 5L Grade B in terms of chemical composition and mechanical properties.
Q. Can I get samples before order?
A. Yes, of course. Usually our samples are free, we can produce by your samples ortechnical drawings.

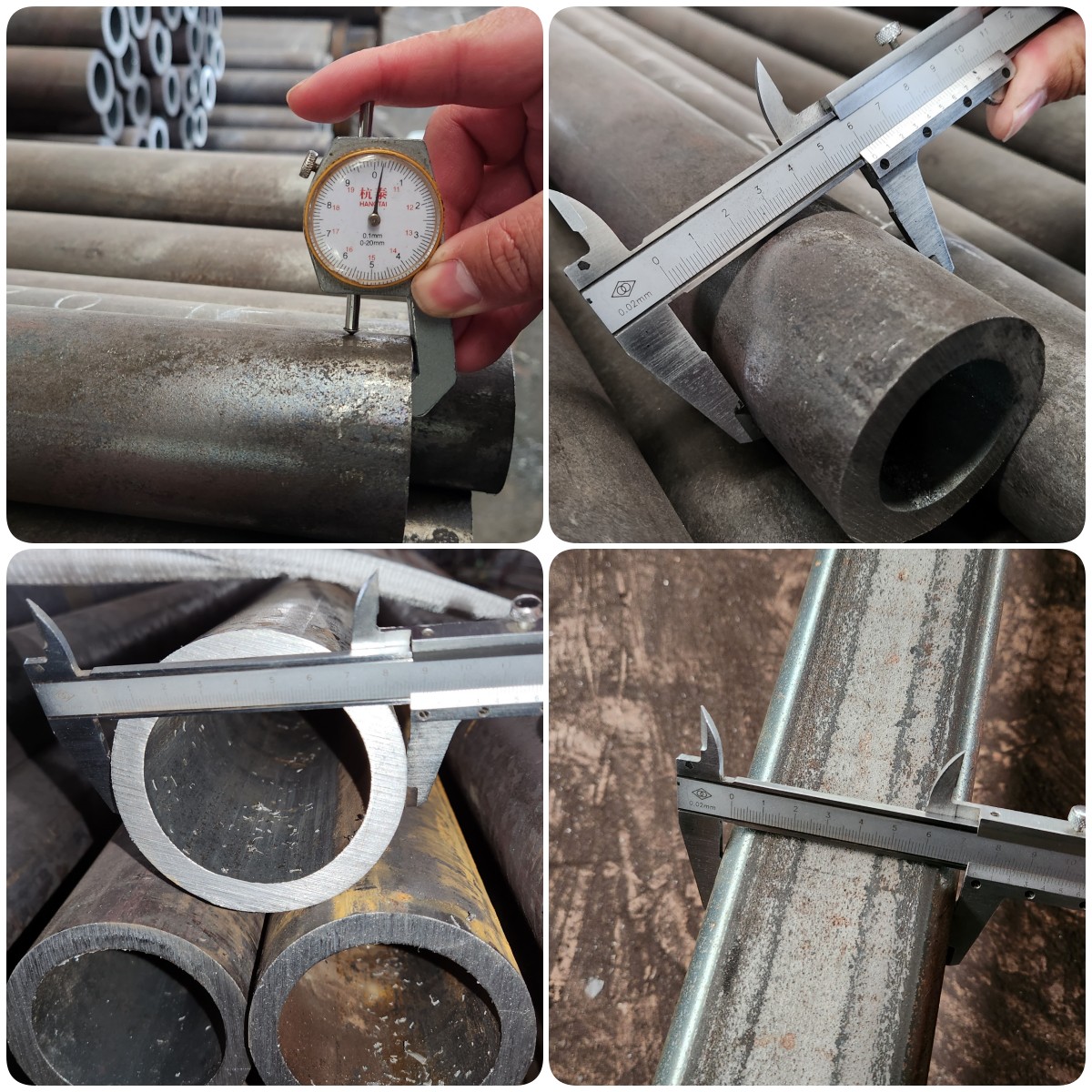

Q. Do the products have quality inspection before loading?
A. Of course, all our products are strictly quality inspected before packing, unqualified products will be destroyed, we absolutely accept third party inspection, you are welcome to visit us by all means.
