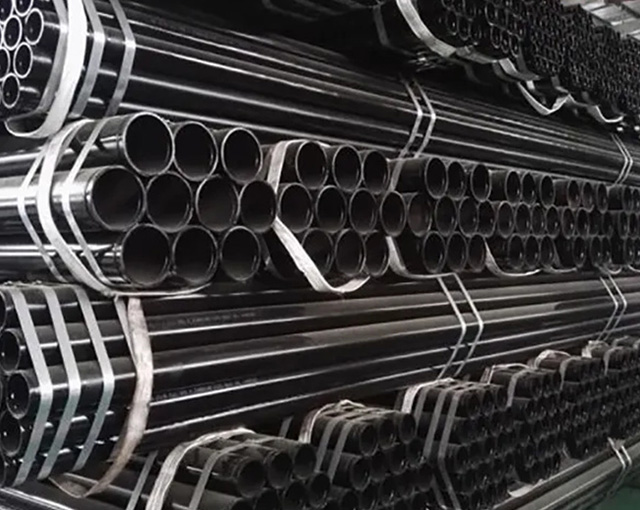

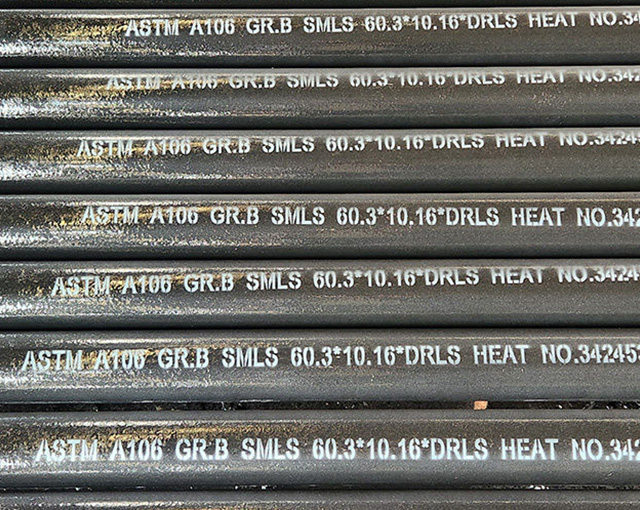

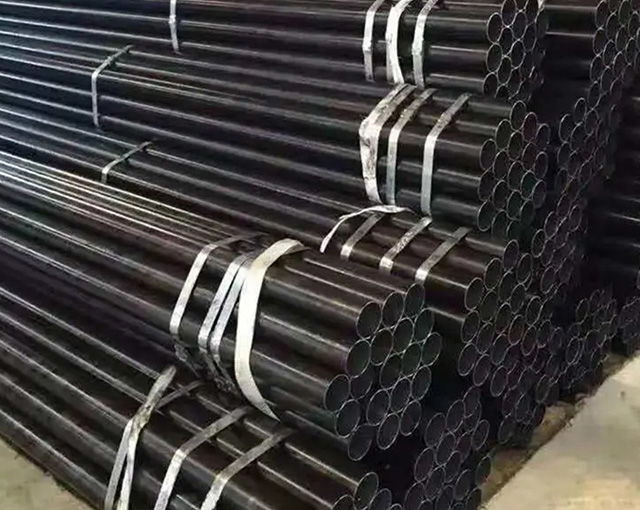

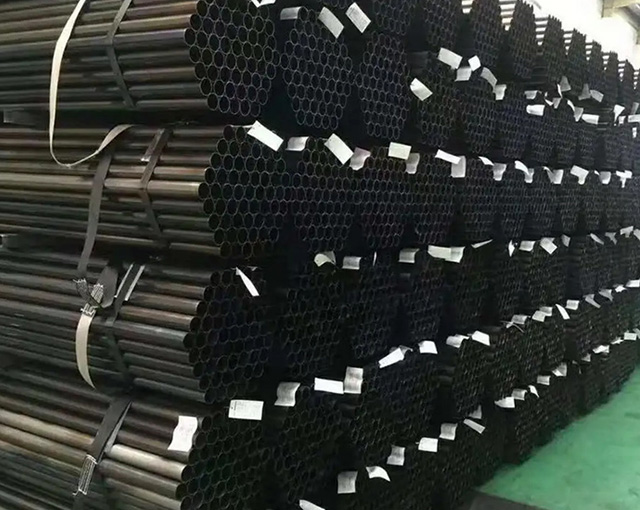

ASTM A106 Gr.B  Seamless Steel Pipe
ASTM A106 Gr.B  Steel Pipe
ASTM A106  Steel Pipe
ASTM A106 Gr.B SCH40 Seamless Steel Pipe
ASTM A106 Gr.B  Seamless Steel Pipe
ASTM A106 Gr.B  Steel Pipe
ASTM A106  Steel Pipe
ASTM A106 Gr.B SCH40 Seamless Steel Pipe

ASTM A106 Gr.B SCH40 Seamless Steel Pipe

A106 Grade B pipe is a type of mild steel pipe used in many industries. They are available in different sizes, with standard thicknesses ranging from 3mm-12mm.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
ASTM A106 is the standard specification for seamless carbon steel pipe for high temperature applications.
A106 Gr.B SCH40 specification refers to a specific grade (Grade B) and table (SCH40) of pipe. A106 Gr.B SCH40 pipe manufactured by GNEE is made of carbon steel and is designed to withstand high temperatures and pressures. The pipe is manufactured by hot rolling, cold drawing or a combination of both methods. The SCH40 table refers to the thickness of the pipe wall. The larger the number, the thicker the pipe wall.
Data table

ASTM A106 Gr.B Seamless Carbon Steel Pipe Specification
Specifications: ASTM A106 SCH40 Seamless Carbon Steel Pipes
Material Specification: A106 Gr B Seamless Tube
Pipe Size: a) ½" Sch 40 [15NB] to 34"Sch40 [900NB]
Dimension Standard: B36.10 M [ANSI Standard]
Random Length: 5m to 7m
All pipes are without any rust, pitting and are of good quality.


ASME SA106 seamless pipe

ASTM A106 Gr.B SCH40 Seamless Steel Pipe

ASTM A106 B SCH40 Seamless Carbon Steel Pipes(OD,WT,WEIGHT PER METER)

SA106 B SCH40 Seamless  Pipes
N Size Descripition KGS/MTR
OD WT
Inch mm sch mm ABT
1 1/2 21.3 sch40 2.77 Cold Drawn 1.266
2 3/4 26.7 sch40 2.87 Cold Drawn 1.687
3 1 33.4 sch40 3.38 Cold Drawn 2.502
4 1 1/4 42.2 sch40 3.56 Hot Rolled 3.392
5 1 1/2 48.3 sch40 3.68 Hot Rolled 4.049
6 2 60.3 sch40 3.91 Hot Rolled 5.437
7 2 1/2 73 sch40 5.16 Hot Rolled 8.632
8 3 88.9 sch40 5.49 Hot Rolled 11.292
ASTM A106 GR B SCH40 Seamless Carbon Steel Pipes
N Size Descripition KGS/MTR
OD WT
Inch mm sch mm ABT
1 8 219.1 sch40 8.18 Hot Rolled 42.547
2 10 273 sch40 9.27 Hot Rolled 60.288
3 12 323.8 sch40 10.31 Hot Rolled 79.703
4 14 355.6 sch40 11.13 Hot Rolled 94.545
5 16 406.4 sch40 12.7 Hot Rolled 123.3
6 20 508 sch40 15.09 Hot Rolled 183.421
7 24 609.6 sch40 17.48 Hot Rolled 255.237



company advantage
GNEE offers A106 B steel pipes in different specifications and wall thicknesses. A106 Class B line pipe material is extremely strong and designed for good corrosion resistance and good strength under load. SA106 Class B Schedule 40 pipe is available in nominal pipe sizes 1/4 to 32. The pipes have a wall thickness of 6.02 mm and an outer diameter of 114.30 mm.
If you have any questions or would like more information about A106 pipe, please contact us.

FAQ

Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.

Q.What is your lead time?
A.Generally, our delivery time is within 7-45 days.

Q.What is your after-sales service?
A.We provide after-sales service and 100% quality assurance for our products.
