ASTM A53 GR.B ERW Pipe

ASTM A53 Grade B ERW Pipe is a carbon steel pipe that comes under the ASTM A53 specification. The pipes range in dimensions according to the ASTM, ASME and API standards.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
With an annual output of 1 million tons, GNEE is the largest ERW pipe manufacturer and service provider in China. The ASTM A53 Grade B ERW pipe produced is a carbon steel pipe that meets the ASTM A53 specification. Pipe size ranges comply with ASTM, ASME and API standards.
ASTM A53 GR.B steel pipes are produced using a resistance welding process that uses resistance heat to weld steel plates together to form the pipe body. This kind of steel pipe has good strength and structural stability and can meet the high requirements for sealing and reliability of fluid delivery systems.
ASTM A53 B pipe has nominal bore sizes ranging from ½ inch to 36 inches.
If you need it for your project, please contact us in time!
ASTM A53 Grade B Carbon Steel Pipe Application
1. Architecture: maximum pipeline under more groundwater extraction when towers, boilers, hot water conveyance and so on.
2. Machining, bearing sets, processing machinery and other accessories.
3. Electrical class: gas distribution, water power fluid conduit.
4. Anti-static tubes wind power plants.
Data table

Grade and Chemical Composition (%) Of ASTM A53 Grade B ERW Black Pipe



Type



Grade C≤ M≤ P≤ S≤ Cu≥ Ni≤ Mo≤



Type E

(electric-resistance welded)

A 0.25 0.95 0.05 0.045 0.4 0.4 0.08
B 0.3 1.2 0.05 0.045 0.4 0.4 0.08

Mechanical Properties Of ASTM A53 Grade B ERW round tube



Grade



Rm Mpa Tensile Strength Mpa Yield Point Elongation Delivery Condition



A

≥330 ≥205 20 Annealed



B

≥415 ≥240 20 Annealed

Specifications: ASTM A53, ASME SA53 a53 erw pipe
Dimensions: ASTM, ASME and API
Type: Seamless / ERW / Welded / Fabricated
Size:Out Diameter:1/2"-24"
Wall Thickness: 1.65-20mm
Thickness: 3-12mm
Schedules: SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules
Length : 3-12m, or according to customer's requirement
End : Plain End, Beveled End, Treaded
company advantage

GNEE is a professional steel company integrating R&D, manufacturing, sales and service. The factory covers an area of about 35,000 square meters. The company has more than 200 employees and exports A53 welded steel pipes to 150 countries every year.

FAQ
Q.Is ASTM A53 galvanized?
A.Covers black and hot-dipped galvanized electric-resistance welded Grade B pipe. Pipe is intended for mechanical and pressure applications and is acceptable for ordinary uses in steam, water, gas and air lines.
Q.What is the ASTM A53 type E pipe?
A.Pipe is intended for mechanical and pressure applications and is acceptable for ordinary uses in steam, water, gas and air lines. Pipe is suitable for welding and threading.
Q.What is the difference between ASTM A53 grade A and B?
A.ASTM Grade B has higher mechanical requirements, different chemical composition, and higher test pressures than Grade A. Grade B meets and exceeds all of the properties of Grade A.







Related Products
Service

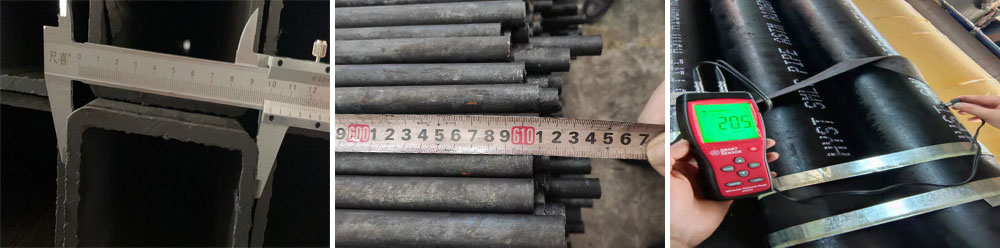

Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
