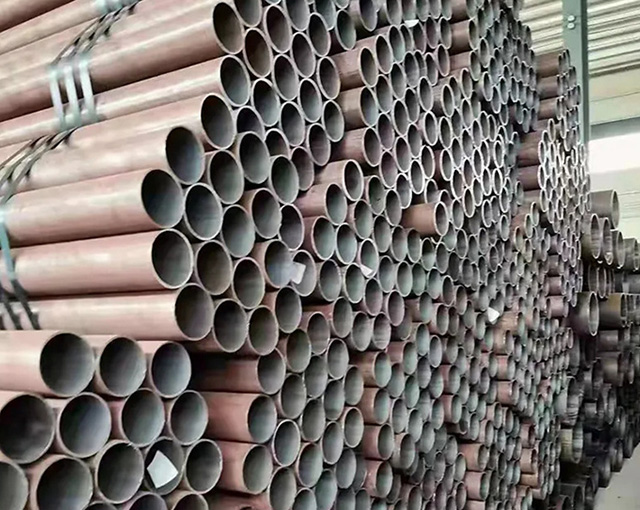

EN 10297-1 Seamless Non-alloy Mechanical Tube
EN 10297-1 Seamless Non-alloy Mechanical Tube
EN 10297-1 Seamless Non-alloy Mechanical Tube
EN 10297-1 Seamless Non-alloy Mechanical Tube
EN 10297-1 Seamless Non-alloy Mechanical Tube
EN 10297-1 Seamless Non-alloy Mechanical Tube
EN 10297-1 Seamless Non-alloy Mechanical Tube
EN 10297-1 Seamless Non-alloy Mechanical Tube

EN 10297-1 Seamless Non-alloy Mechanical Tube

EN 10297-1 Seamless Mechanical Tubes is mainly applicable to non-alloy and alloy steel tubes for mechanical and general engineering purposes.
standard:EN
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
The full name of the EN 10297-1 standard is "Technical delivery conditions for seamless round steel tubes, Part 1: Non-alloy and alloy steel tubes for mechanical and general engineering purposes". To ensure that the size, shape, surface finish and wall thickness of the tube meet the standard requirements.
EN 10297-1 non-alloy mechanical tubes mainly include E235, E355, D470, C22E and C45E grades.
EN 10297-1 mechanical tubes are widely used in the fields of machinery and general engineering, such as automotive parts, engineering structures, mechanical parts, etc.
Data table

Specified Minimum Yield Strength Of EN 10297-2 Material pipe

Product

Yield Strength

Tensile Strength

Elongation A5 min



MPa min

ksi min

MPa min

MPa min

ksi min

Percentage

C22





420

21

C35





520

17

C45





610

16

C60





720

13

E235





360

25

E275





410

22

E315





450

21

E355





490

20

C22E





430

24

C35E





550

18

C45E





620

14

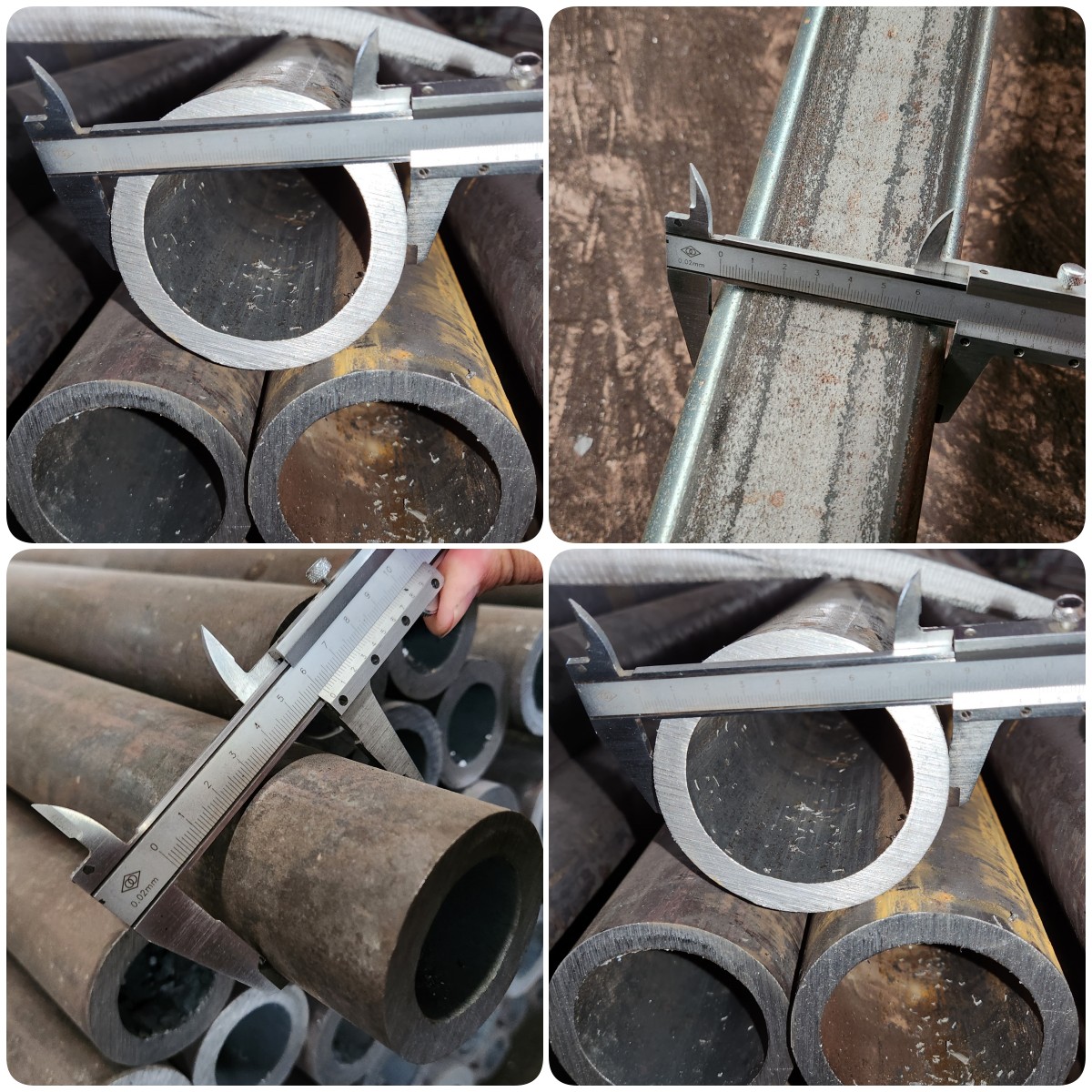

Non-alloy Mechanical Tube specification:

Execution

Size Range

OD Tolerance

Wall tolerance

Hot-rolled Tube

OD – 80 mm OD > 80 mm Wall < 12 mm Wall - 12 mm

± 0.4 mm± 0.5 % of OD

± 0.7 mm± (5 % x wall thickness + 0.1 mm

Hot-rolled tube

All sizes Wall < 12 mm Wall - 12 mm

+ 0.25/- 0 mm

± 0.8 mm± (5 % x wall thickness+ 0.2 mm)

Cold Worked tube cold-rolled or cold-drawn

OD < 40 mm OD 40 - 80 mm OD > 80 Wall Thickness< 6 mm Wall Thickness6 - 8 mm Wall Thickness > 8

+ 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm*

± 0.30 mm± 0.35 mm± 0.40
