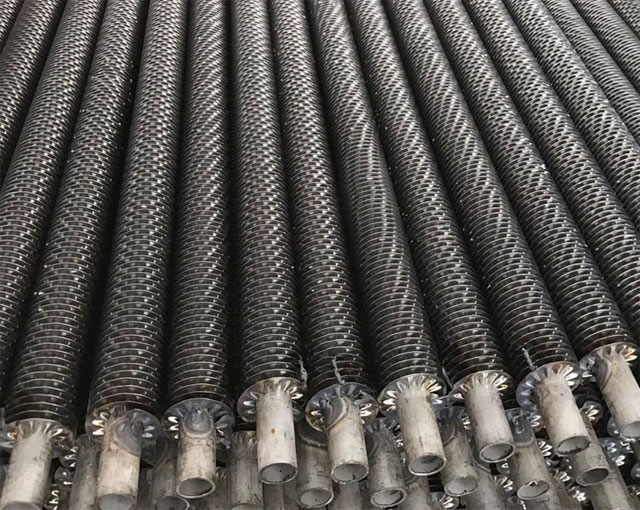

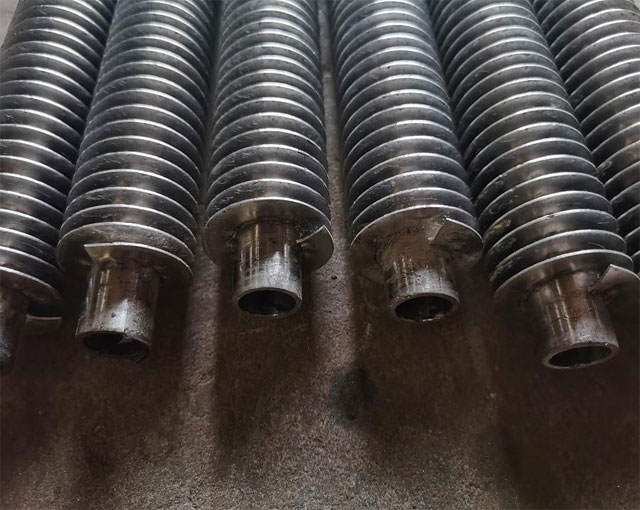

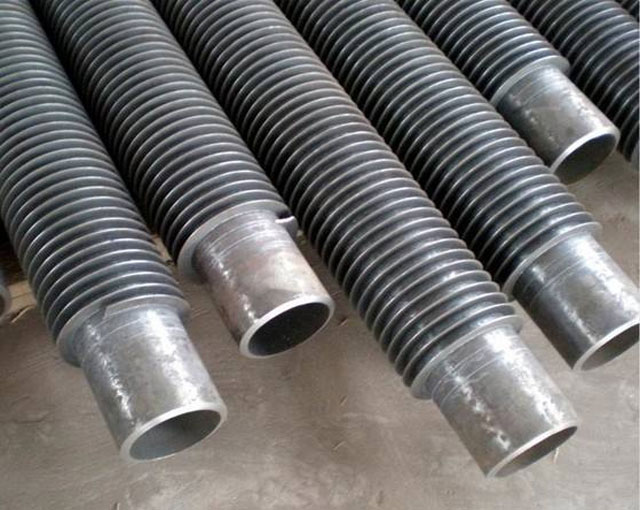

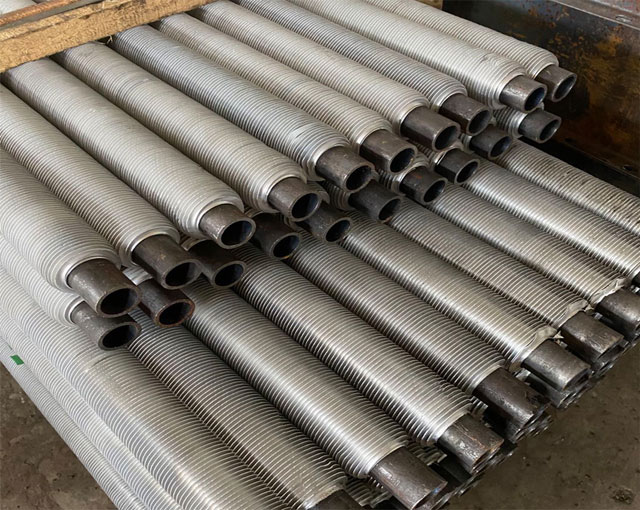

Heat exchange high frequency spiral finned tube

High-frequency welding spiral finned tube is to use the skin effect and proximity effect of high-frequency current to heat the outer surface of the steel strip and steel pipe while winding the steel pipe, until the plastic state or melting, and finish welding under a certain pressure of winding the steel strip.
Introduction
Product Details
Related Products
Service
Related Projects
Inquiry
Introduction
This high frequency welding is actually a solid phase welding. Compared with inlay, brazing (or overall hot-dip galvanizing) and other methods, it is more advanced in terms of product quality (the welding rate of fins is high, up to 95%), productivity and automation.
There are many types of finned tubes, and new varieties are constantly emerging. According to the processing process, they can be broadly classified according to the following aspects.
1) Rolled fin tube (extruded fin tube).
2) Welding fin tube (high frequency welding fin tube, submerged arc welding fin tube).
3) Roll forming fin tube.
4)、Set forming fin tube.
5) Casting finned tubes.
6) Tension-wound finned tubes
7), Flanged tube.
Product Details
Base Tube Material  stainless steel, carbon steel, copper alloy, alloy steel etc
Fin Material   Aluminium, Copper Alloy, Stainless Steel, Carbon Steel
Fin Tube Type 1.Copper fin tube→copper fin copper tube,aluminum fin copper tube
2.Spiral fin tube→steel fin steel tube
3.Extruded fin tube→aluminum fin steel tube
4.Stainless fin tube→stainless fin steel tube
5.High frequency welded fin tube→stainless fin steel tube,steel fin steel tube
6.Aluminum fin tube→aluminum fin steel tube
Base Tube OD  12.7~18mm
Fin tube Max design temperature   <450°C
Fin depth   0.5~3 mm
Product processing   Extruded, Embedded, High Frequency Welding etc.
Package  In bundles, plywood cases, wooden cases with water-proof package, etc.
Application  Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchanger, superheater, Boiler etc.


FAQ:
1.Q: Are you a factory or trading company?
A: We are professional manufacturer, and our company also is a very professional a trade company for steel products.We can provide a wide range of steel products.

2.Q:What do your factory do regarding quality control?
A: We have obtained ISO, CE and other certifications. From materials to products, we check every process to maintain good quality.

3.Q: Can I get samples before order ?
A: Yes, of course. Usually our samples are free. we can produce by your samples or technical drawings.

4.Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ; We respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.

5.Q:what is your delivery time ?
A: Our delivery time is about one week, timing according to the number of customers.
