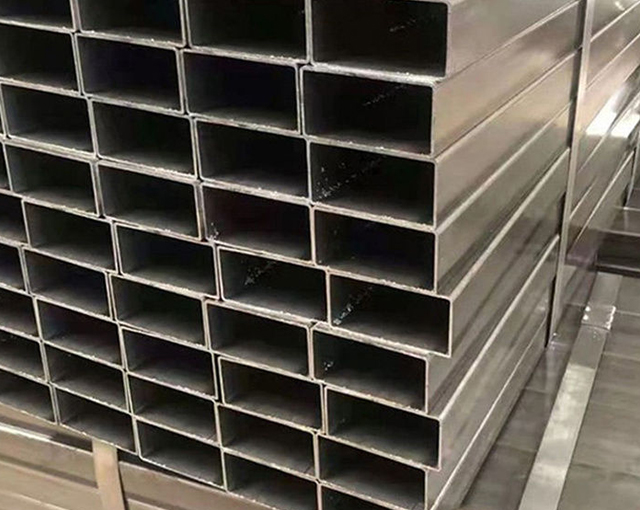

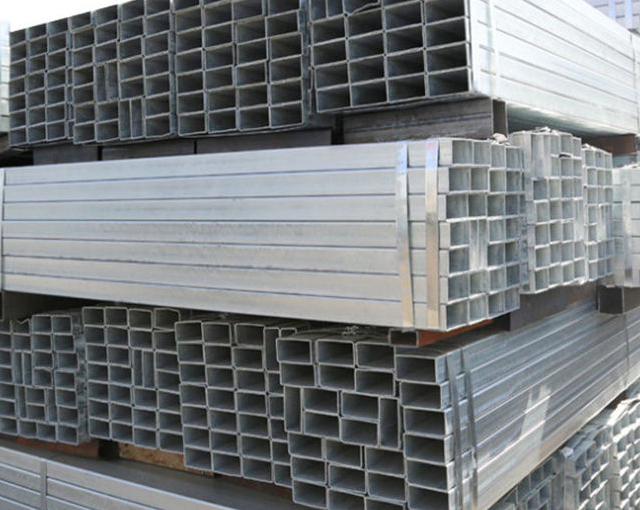

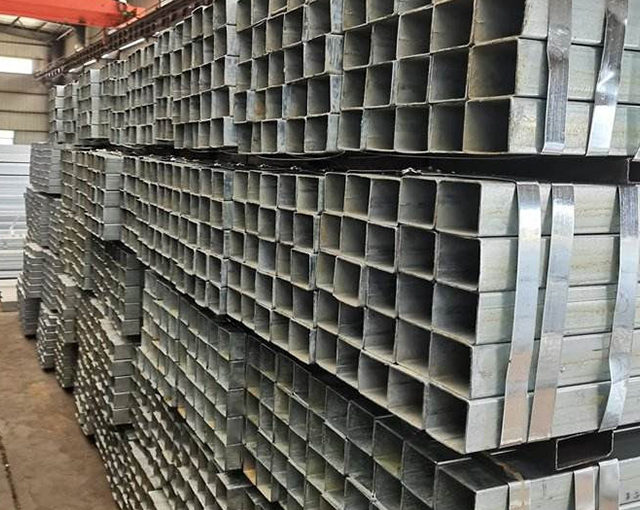

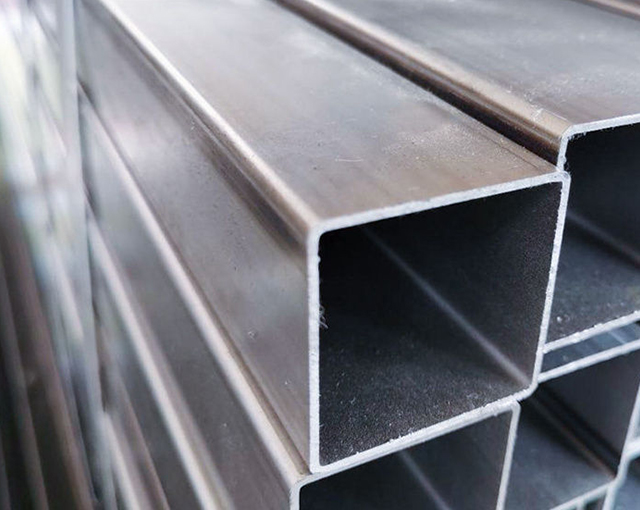

EN S235JRH Structural Square Pipes
EN S235JRH Structural Square Pipes
EN S235JRH Structural Square Pipes
EN S235JRH Structural Square Pipes
EN S235JRH Structural Square Pipes
EN S235JRH Structural Square Pipes
EN S235JRH Structural Square Pipes
EN S235JRH Structural Square Pipes

EN S235JRH Structural Square Pipes

EN S235JRH structural square tubes are commonly used in buildings, bridges, towers, support structures, mechanical equipment and other fields.
standard:EN
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction

What are the specifications of S235JRH carbon steel pipe?
Cold formed EN 10219 S235JRH Square Hollow Section is a carbon steel product with a composition of 0.17% carbon, 1.4% manganese, phosphorus, sulfur and nitrogen. The material is also strong, with a minimum yield strength of 215MPa and a minimum tensile strength of up to 510MPa.

Mild steel EN S235JRH square tubes and sizes are 10mmx10mm to 800mmx800mm, wall thickness is 1mm-40mm, customized lengths are available.
gne can provide EN standard S235JRH seamless and welded structural square tubes with tensile strength ranging from 360MPa to 510Mpa. Structural square steel tubes are widely used in the structural and civil engineering and construction industries.


Technical Data

S235JRH Cold Formed Square Hollow Section Chemical Composition

Steel Grade Thickness (mm) C Si Mn P S N CEV
S235JRH 6≤t≤16 ≤0.17 - ≤1.40 ≤0.040 ≤0.040 ≤0.009 ≤0.37
16<t≤40 ≤0.39
40<t≤65 ≤0.20 ≤0.41
65<t≤70 ≤0.44

N 10219 S235JRH Square Cold Formed Hollow Section Specification
Standard : BS EN 10219 - Cold Formed Welded Structural Hollow Sections of Non-alloy and Fine Grain Steels
Grade : S235JRH
SHS (Square Hollow Sections) Sizes : 20*20mm-400*400mm
Wall Thickness : 0.5mm - 25mm
Length : 6000-14000 mm
Type : Seamless/ Welded / ERW
