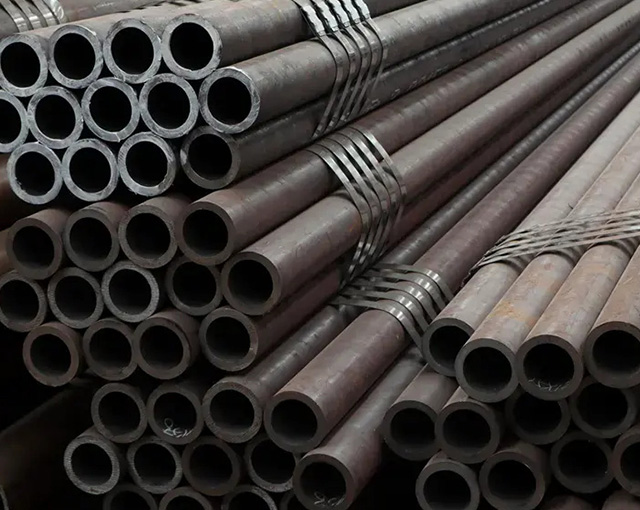

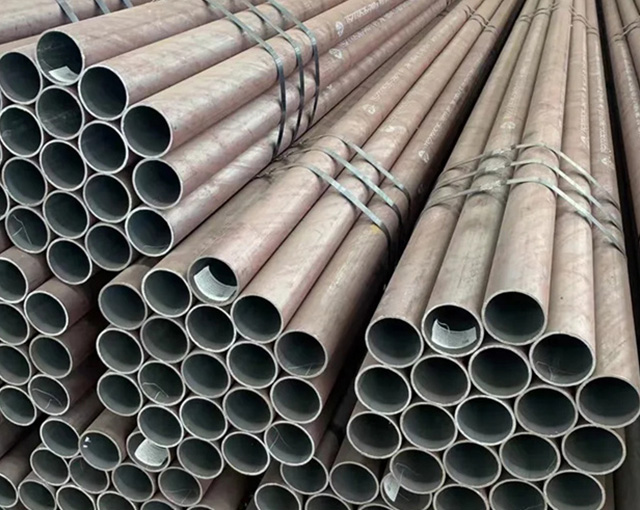

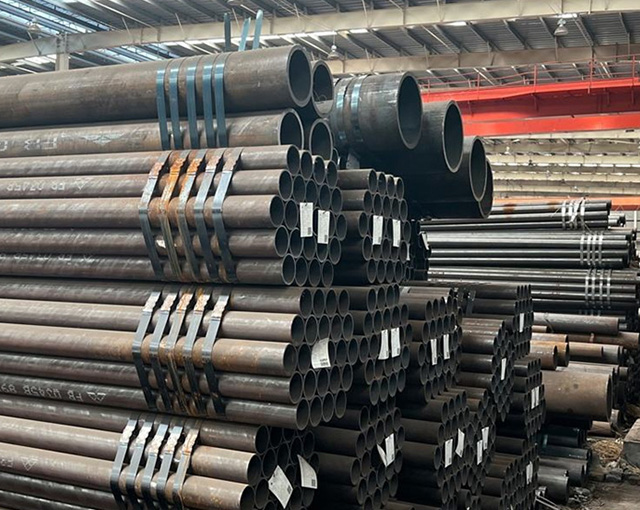

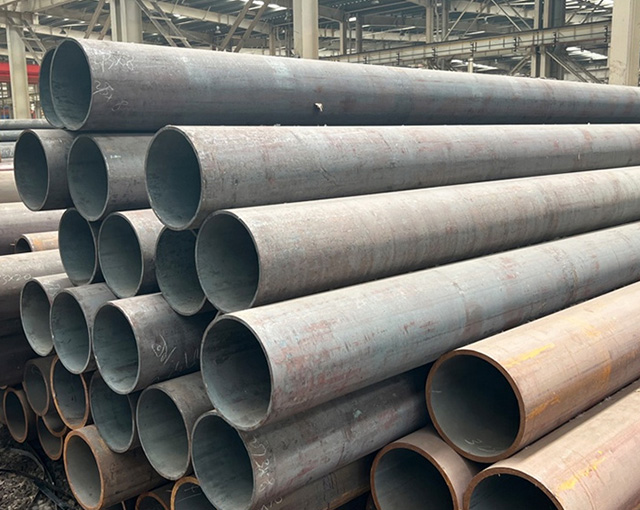

ASTM A192 Seamless Carbon Steel Boiler Tubes

ASTM A192 Seamless Carbon Steel Boiler Tubes

ASTM A192,ASME SA192 High-Pressure Seamless Boiler And Superheater Tubes are made by the seamless process and shall be either hot-finished or cold-finished, as specified.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

ASTM A192 seamless steel pipe is a low carbon alloy steel with excellent strength and corrosion resistance. The following are the chemical composition and mechanical properties of ASTM A192 seamless steel pipe:
Chemical composition: Carbon (C): 0.6-0.18%, Silicon (Si): ≤0.25%, Manganese (Mn): 0.35-0.65%, Phosphorus (P): ≤0.025%, Sulfur (S): ≤0.020%, Mechanical properties: tensile strength (MPa): ≥325, yield strength (MPa): ≥180, elongation (%): ≥35, impact energy (J): ≥27.
According to the ASTM A192 standard, seamless carbon steel boiler tubes should be manufactured using seamless processes such as hot rolling or cold drawing. For heat-treated pipes, no additional heat treatment is required after heat treatment. For cold finished tubes, cold finishing requires heat treatment at 1200°F (650°C) or higher for optimal mechanical properties and corrosion resistance.
192 Grade A steel pipe is suitable for boiler and heat exchanger applications at high temperatures (approximately 450°C or higher) and high pressures. They maintain stable performance under harsh working conditions.
Mechanical properties: This grade of steel pipe usually has appropriate mechanical properties and can withstand the loads and pressures in high temperature and high pressure environments.

Technical Data

Chemical Composition of ASME SA192 Tubes

Carbon, %	0.06–0.18
Manganese, %	0.27–0.63
Phosphorus, max, %	0.035
Sulfur, max, %	0.035
Silicon, max, %	0.25

Mechanical Properties of ASTM A192 Boiler Tubes

Tensile strength, min, ksi [MPa]	47 [325]
Yield strength, min, ksi [MPa]	26 [180]
Elongation in 2 in. or 50 mm, min, %	35
Brinell Hardness Number (Tubes 0.200 in. [5.1 mm] and over in wall thickness)	137 HBW
Rockwell Hardness Number (Tubes less than 0.200 in.[5.1 mm] in wall thickness)	77 HRBW

Note:Mechanical property requirements do not apply to tubing smaller than 1 ⁄ 8 in. [3.2 mm] inside diameter or 0.015 in.[0.4 mm] thickness.

company advantage

GNEE group is not only committed to providing high-quality steel products, but also actively establishing close cooperative relationships with many companies. These include Baowu Group, Anyang Iron and Steel Group, Wuhan Iron and Steel, Shandong Iron and Steel, Jiugang Group, Shougang Group, Valin Iron and Steel and many other companies.

FAQ
Q. Can you arrange transportation for us?
A.Yes, we have appointed sea and rail freight forwarders, we can serve our customers with the best price, the best shipment schedule and the best freight rate. We can offer the best price, the fastest shipping schedule and the most professional service .
Q.Where are you located? Can I visit you?
A.Sure, you are welcome to visit our factory anytime.
Q.What is the specification of A192 material?
A.ASTM A192/A192M specifications covers minimum-wall-thickness, seamless carbon steel boiler and superheater tubes for high pressure service.
