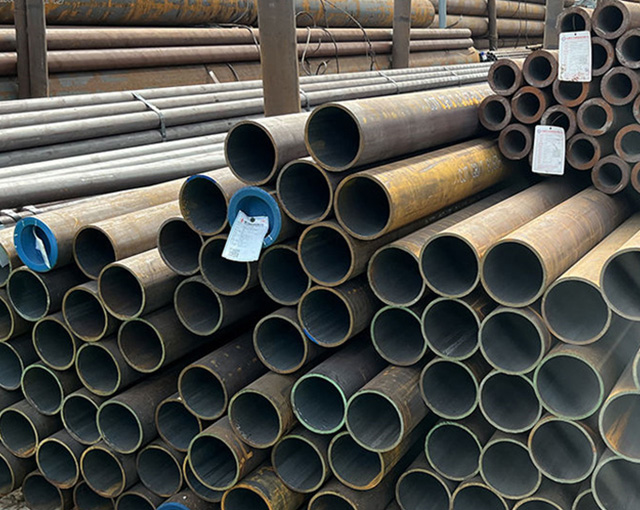

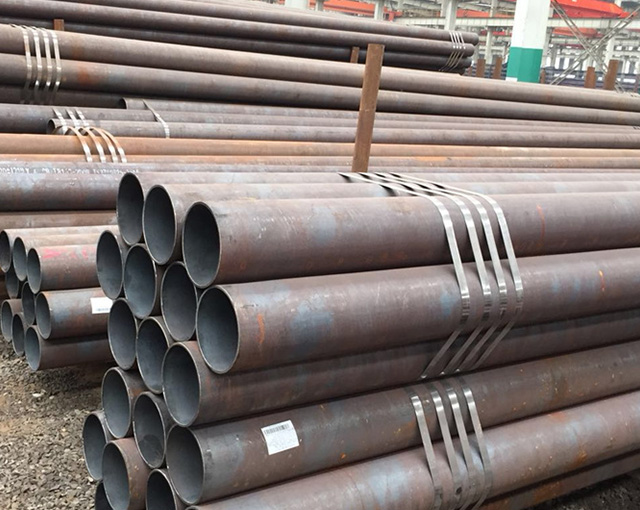

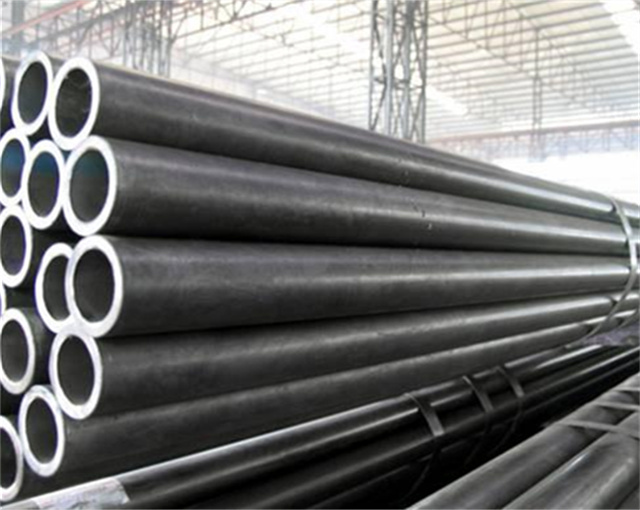

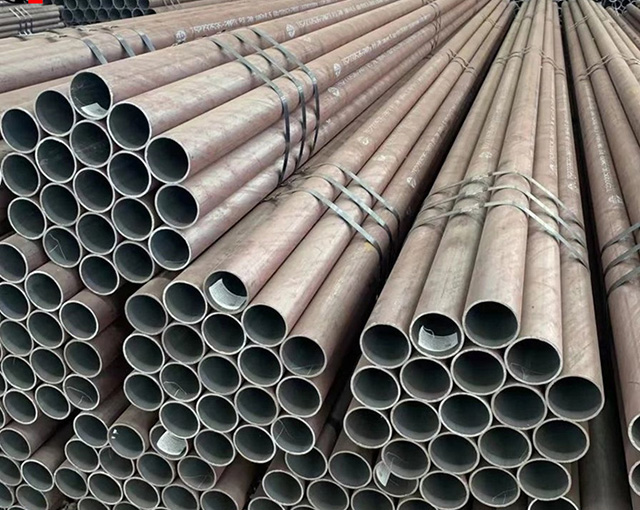

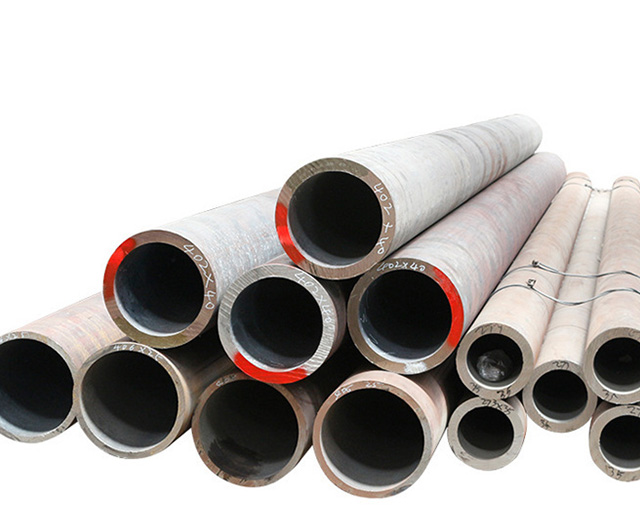

GB 5310 20MnG Seamless Pipe
GB 5310 20MnG Seamless Pipe
GB 5310 20MnG Seamless Pipe
GB 5310 20MnG Seamless Pipe
GB 5310 20MnG Seamless Pipe
GB 5310 20MnG Seamless Pipe
GB 5310 20MnG Seamless Pipe
GB 5310 20MnG Seamless Pipe

GB 5310 20MnG Seamless Pipe

20MnG steel pipe is a type of steel pipe commonly used in high temperature and high pressure applications, commonly used in boilers, heat exchangers and other high temperature and high pressure equipment.
standard:GB
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
The chemical composition of 20mnG steel pipes includes but is not limited to carbon C, silicon Si, manganese Mn, phosphorus P, sulfur S, chromium Cr, nickel Ni and copper Cu. The contents of these elements in the chemical composition vary, with carbon ranging from 0.17 to 0.24, silicon ranging from 0.17 to 0.37, and manganese ranging from 0.7 to 1.00. In addition, the content of phosphorus and sulfur does not exceed 0.03 and 0.03 respectively, the content of chromium does not exceed 0.15, the content of nickel does not exceed 0.25, and the content of copper does not exceed 0.20. The 20mnG boiler tube performs well in terms of mechanical properties, and its tensile strength ≥ 415MPa, yield limit ≥240MPa, elongation ≥22%.
Technical Data

Chemical composition of GB 5310 20MnG

Steel Pipe Chemical Composition(%)
C Si Mn Cr Mo V Ni Cu P
Max
20MnG 0.17~0.23 0.17~0.37 0.70~1.00 ≤0.25 ≤0.15 ≤0.08 ≤0.25 ≤0.20 0.025

Mechanical properties of GB 5310 20MnG

Steel Pipe Tensile properties Impact energy(Akv),J Hardness
Tensile strength
(MPa)
Yield Strength
(MPa)
Elongation
%
Portrait Landscape A B C
HBW HV HRC
Portrait Landscape
  Max Min
20MnG ≥415 240 22 20 40 27
company advantage
gnee has many years of experience in exporting products to all over the world and can provide high quality products!There are 5,000 tons of inventory and strong funds. In addition, we provide 24-hour service. With the most convenient transportation and timely delivery. Provide competitive prices and best service.

FAQ
Q.Can you provide samples?
A. Yes, free samples are available for regular sizes, but buyers need to pay the shipping cost.
Q.Can you arrange delivery for us?
A. Yes, we have appointed sea and railway freight forwarders, we get the best price and earlier shipment and professional service.
Q.What is DIN 2448?
A.DIN 2448 is a standard that gives specifications for seamless carbon steel pipes and tubes including conventional masses per unit length, dimensions, couplings in addition to weights.
