EN 10216-2 P195GH Seamless Steel Pipe
EN 10216-2 P195GH Seamless Steel Pipe
EN 10216-2 P195GH Seamless Steel Pipe
EN 10216-2 P195GH Seamless Steel Pipe
EN 10216-2 P195GH Seamless Steel Pipe
EN 10216-2 P195GH Seamless Steel Pipe
EN 10216-2 P195GH Seamless Steel Pipe
EN 10216-2 P195GH Seamless Steel Pipe

EN 10216-2 P195GH Seamless Steel Pipe

P195GH is a low-alloy steel commonly used in the manufacture of high-temperature and high-pressure vessels and pipes.
standard:EN
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
EN10216 P195GH seamless pipe is a low alloy steel seamless pipe that meets the European standard EN10216. The chemical composition of P195GH includes elements such as carbon, silicon, manganese, phosphorus and sulfur. The ratio of these elements gives the pipe high strength and good toughness and plasticity, allowing it to maintain excellent performance in high temperature and high pressure environments. performance.
Chemical composition of P195GH seamless pipe: Carbon (C): ≤0.20 Manganese (Mn): ≤1.50 Phosphorus (P): ≤0.025 Sulfur (S): ≤0.015 Silicon (Si): ≤0.50 Aluminum (Al): ≥0.020 Vanadium (V): ≤0.08 Niobium (Nb): ≤0.05 Titanium (Ti): ≤0.05 Molybdenum (Mo): ≤0.35 Copper (Cu): ≤0.25 Nickel (Ni): ≤0.40
P195GH seamless round pipe has a wide range of applications. Due to its excellent mechanical properties and corrosion resistance, it is widely used in the manufacture of high-temperature and high-pressure vessels and pipes, such as boiler water pipes, smoke pipes, superheater pipes and air preheating pipes.
P195GH seamless carbon pipe also has the characteristics of high thermal conductivity, long service life, and resistance to high temperatures and pressures, making it the first choice in power plants, refineries, and other industrial applications that require high-performance pipes.
Technical Data

EN 10216-2 P195GH Seamless steel tubes shall be supplied in the relevant heat treatment conditions as specified in Table 1.

Steel grade Heat
treatment
a
Austenizing Tempering
Steel
name
Steel
number
Temperature °C Cooling
Medium
Temperature °C Cooling
medium
P195GH 1.0348 +N b 880 to 940 Air - -
a +N = Normalising, +NT = Normalising + Tempering, +QT = Quenching + Tempering (air or liquid), +I = Isothermal Annealing.
b Normalising includes Normalising Forming.

Chemical composition of EN 10216-2 P195GH  pipe

Steel grade Steel
number
C Si Mn P
max
S
max
Cr Mo Ni Al tot Cu Nb Ti
max
V Cr+Cu
+Mo+Ni
Others
195GH 1.0348 ≤ 0,13 ≤ 0,35 ≤ 0,70 0,025 0,020 ≤ 0,30 ≤ 0,08 ≤ 0,30 ≥ 0,020 b ≤ 0,30 c ≤ 0,010 d


Tolerances on exact lengths
Dimension in mm

Length L Tolerance on exact length
L ≤ 6000 +10
0
6000 < L ≤ 12 000 +15
0
L > 12 000 + by agreement
0
company advantage

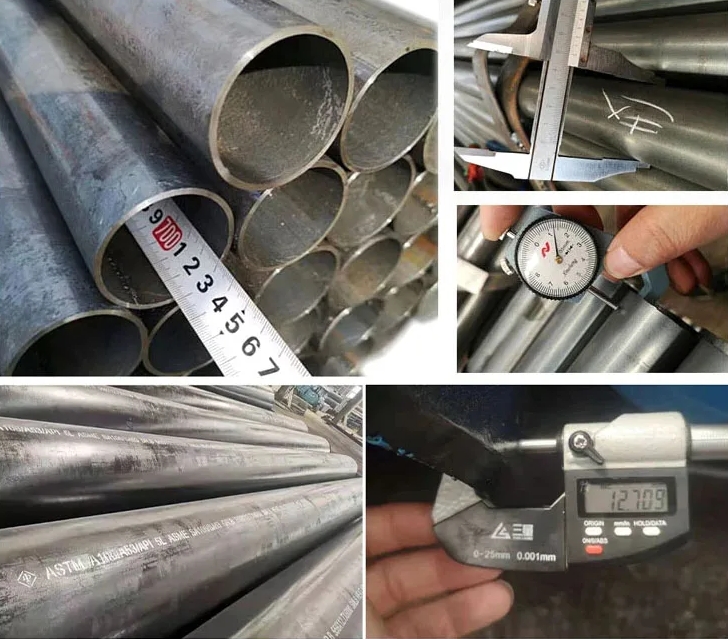

gnee company has an advanced inspection and testing center that can conduct various physical and chemical tests on steel pipes. It has successively obtained ISO9001, ISO14001, and ISO45001 system certifications.
