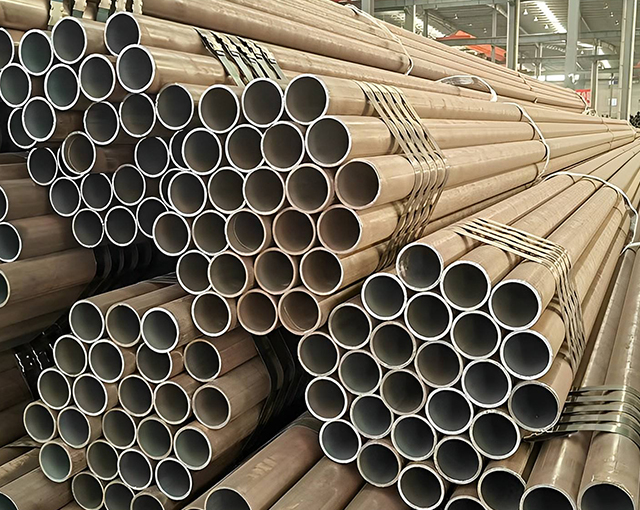

GNEE's S355J2H precision seamless steel pipe is usually produced using a cold rolling process, which helps improve its precision and reduce losses during machining.
standard:EN
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
EN 10210 S355J2H seamless pipe is a type of low carbon steel pipe. These tubes are not as strong as mature carbon tubes, but have comparable strength and excellent stress resistance.
The chemical composition of S355J2H pipe is carbon 0.22%, silicon 0.55%, manganese 1.6%, phosphorus 0.03%, and sulfur 0.03%. And has excellent corrosion resistance to meet extreme temperature requirements. EN 10210 S355J2H seamless pipe has a tensile strength between 510Mpa and 680Mpa and a yield strength of at least 355Mpa.
S355J2H carbon tube is durable and cheap, and is widely used in various systems for the transportation of oil, natural gas, and petroleum. It is also used in boilers, heat exchangers and fluid tubes.
Data table

S355J2H EN 10210 Carbon Steel Pipe Chemical Composition

Grade C Si Mn P S
S355J2H (1.0576) max 0.22 max 0.55 max 1.6 max 0.03 max 0.03



S355J2H Seamless Pipes Mechanical Properties

Specification EN10210 S355J2H
Tensile Strength Rm N/mm2: 3 ≤ T ≤ 100mm 470 – 630
Yield Strength ReH Min, N/mm2: T ≤ 16mm 355
Min Elongation % T ≤ 40mm on gauge length 5.65. √S0 22
Impact properties Minimum Ave energy (J) at -20°C 27


S355J2H pipe Heat Treatment / Hot Forming

Hot Forming Heat Treatment
Temperature°C Cooling Type Normalizing 1″ Stress relieving anneal 2″ Cooling Type
700-750 Air 850-950°C 580-630°C Air
company advantage

Our advantage

GNEE is a leading stockist of EN 10210 S355J2H Steel Pipe. Having the best quality products and making them available to everyone at reasonable prices.In addition,
GNEE's special business includes zero cutting, rounding, square cutting, special-shaped cutting, castings, and forgings. The product thickness can reach 150mm, and various special materials and specifications can be customized.
If you are looking for S355J2H seamless pipe, please contact us in time to get a quote!
