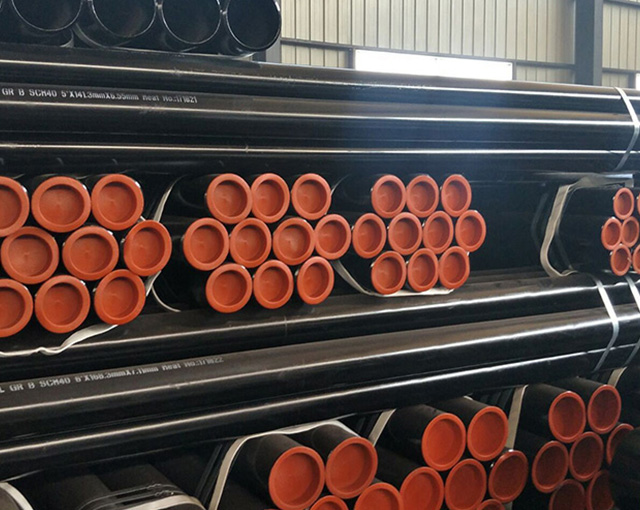

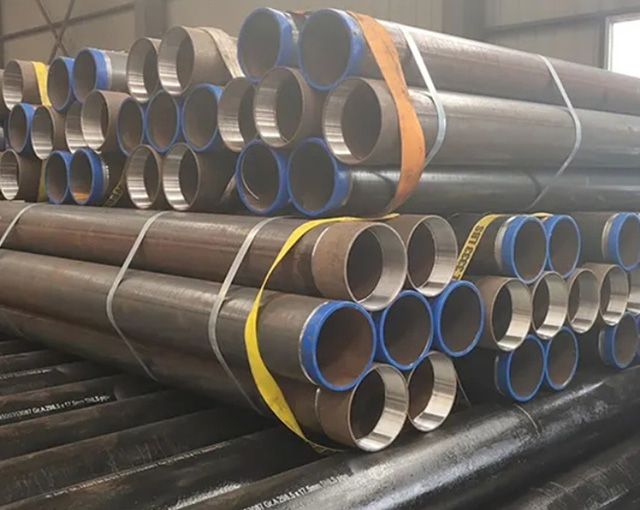

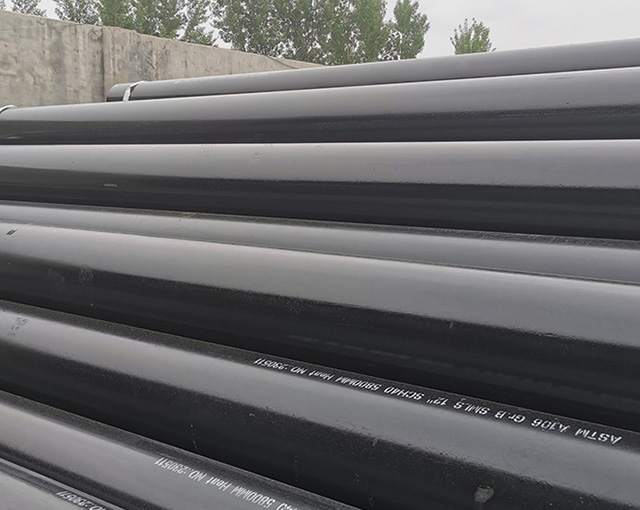

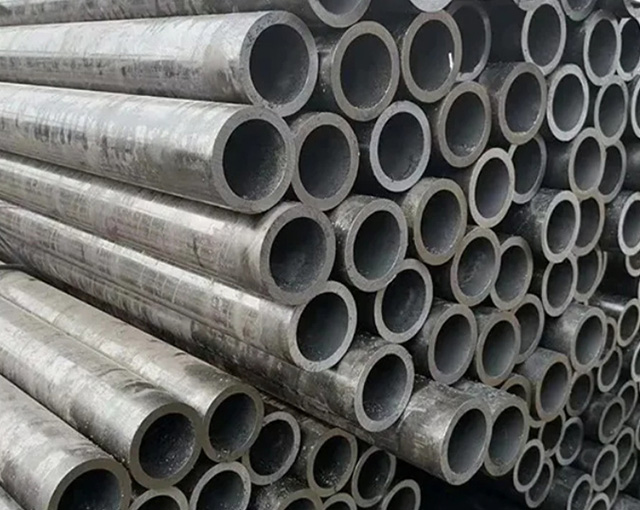

SA106 Gr.B High Temperature Pipe

ASTM A106 Grade B is a seamless carbon steel pipe that is commonly used for high-temperature service in various industries, such as oil and gas, petrochemical, power generation, and refineries.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

A106 GR B seamless steel pipe is a carbon steel seamless pipe in ASTM standards with excellent high temperature performance and good structural stability. Its outer diameter is 48.3mm and wall thickness is 10.15mm. It is often used in the manufacturing process of high-temperature equipment and heat exchangers.
SA106 GR B carbon steel pipe can also withstand high pressure and has good sealing performance and corrosion resistance, so it is also widely used in fluid pipeline systems such as oil, natural gas, and water. At the same time, according to the needs of different specifications and sizes, A106 B high-temperature steel pipes can also be customized to meet the actual needs of different fields and working conditions.
Temperature range of SA 106 GR B seamless steel pipe
In the context of fossil fuel thermal power plants, the SA-106 Gr. Material B is used for low-temperature components that use water as the working medium and have an operating temperature of 80 to 120°C (such as boiler ring feeders, drain pipes from the condenser to the boiler feed water inlet, etc.).

Data table

SA106 Gr.B High Temperature Pipe Chemical Properties

Carbon	Silicon	Manganese	Phosphorous	Sulphur	Molybdenum	Nickel	Chromium	Copper	Others
0.25	min 0.10	0.27-0.93	0.035	0.035	0.15	0.4	0.4	0.4	V 0.08

SA106 Gr.B pipe Machanical Property:

ASTM A106 pipe	Grade B
Tensile Strength, min., psi	60,000
Yield Strength, min., psi	35,000

company advantage

GNEE has an ISO9001-2000 quality management system and an ISO14001 environmental protection system. Every year, A106 GR B high temperature pipes are exported to more than 160 countries and regions including Russia, Canada, India, Brazil, and Southeast Asia.

FAQ

Q: What does the mark CD in the steel pipe SA106Gr.B standard mean?
A: CD means cold drawn,SA106 stipulates that pipes below DN40 can be hot-rolled or cold-drawn; pipes above DN50 are conventionally hot-rolled. When the manufacturer and the purchaser reach an agreement, cold-drawn manufacturing is allowed.
Q: What is the difference between ASME SA-106 and ASME SA-106M?
A: The difference between ASME SA-106 and ASME SA-106M is that if the size standard is imperial, use ASME SA-106, if the size standard is metric, use ASME SA-106M.
