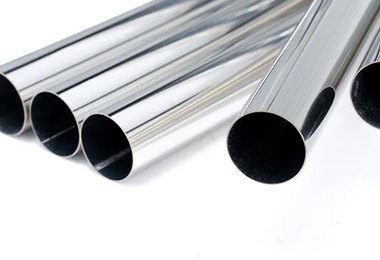

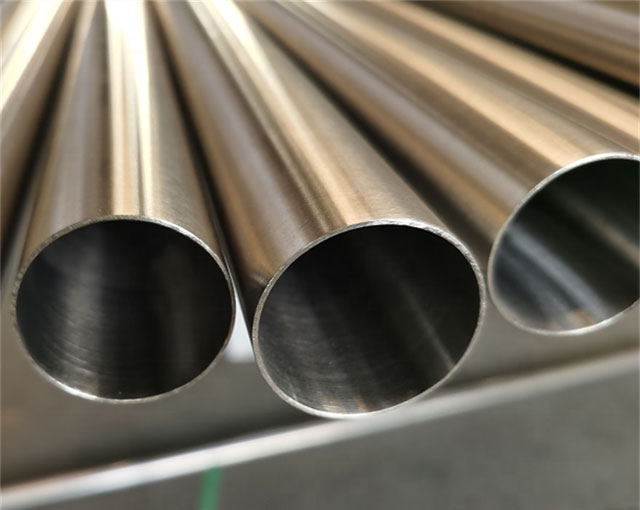

304 stainless steel tubing is a stainless steel tube made from an alloy of chromium, nickel and other elements such as carbon, silicon and manganese. Due to its excellent corrosion resistance, high temperature strength and good weldability, it is a versatile and commonly used material in many applications.
Applications: frame work, braces, supports, marine, food, etc.
Workability: Easy to Weld, Moderate Cutting, Forming and Machining.
Introduction
Our Advantages
Related Products
Service
Related Projects
Inquiry
Introduction
304 stainless steel tubing is often used in industries such as food and beverage processing, chemical and petrochemical processing, pharmaceuticals and marine applications. It is also frequently used in the construction industry, such as railing systems and handrails, as well as in automotive and aerospace applications.

304 stainless steel tubing is available in a range of sizes and wall thicknesses, and it can be welded or seamless. It also comes in a variety of shapes, such as round, square and rectangular. When selecting 304 stainless steel tubing, it is important to consider the specific requirements of the application, such as operating environment and pressure and temperature requirements.

304 Stainless Steel pipe specifications
Material 304:0cr18ni9, 0cr17ni8
Size (SS 304 round pipes) .5, 12.7, 15.9, 17, 18, 19.1, 20, 21, 22.2, 23, 25.4, 28, 318, 35, 60, 63.5, 73
Size (SS 304 square pipes) 0x10, 12x12, 18x18, 23x23, 38x38, 50x50, 70x70, 100x100, 20x10, 23x10, 24x12, 25x13
Thickness 0.24-3 mm
Length 6m or according to customer's request
Outer diameter (OD) 8-219mm
Tolerance Outer diameter :±0.2mm Thickness :±0.02mm Length :±0.5mm
Process method Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished Manufacturer and supplier
Finishing A: sanded B: 400#-600# mirror C: hairline brushed D: TIN titanlum
E : HL brushed & mirror (two kinds of finishing for one pipe)
Stainless Steel 304 Pipes Standards Manufacturer and supplier of ASTM A213, ASTM A249, ASTM A269, ASME SA213, ASME SA249, ASME SA269, EN 10216-5 TC1 / TC2, PED 97/23/EC, AD 2000, NACE MR0175/ISO 15156
304 Stainless Steel Pipes Aerospace Grade AMS 5564, AMS 5565, AMS 5567, AMS 5569, AMS 5695 (Canceled & non-current specs include AMS-T-6845, Mil-T-6845, AMS-T-8504, Mil-T-8504, AMS-T-8506, Mil-T-8506)
Manufacturing standards
  • ASME B36.19
  • AMS 5647
  • AMS 5566
  • AMS 5569
  • AMS 6845
  • BS 10216 Pt 5
  • ASTM A213
  • ASTM A312
  • ASTM A269
  • ASTM A632
  • BS 3605 Pt 1
  • NFA 49-117
  • NFA 49-217
  • Mil-T 8504
  • Mil-T 8606
  • or as per customer specifications.
Shape Round, Square, Rectangular, Hollow, LSAW Etc.


Stainless Steel 304 Pipe Equivalent Grades

Grade UNS No Old British Euronorm Swedish SS Japanese JIS GOST
BS En No Name
304 Stainless Steel S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304 08Х18Н10


304 Stainless Steel Pipe Chemical Composition

Grade C Mn Si P S Cr Mo Ni N
304 Stainless Steel min. 18.0 8.0
max. 0.08 2.0 0.75 0.045 0.030 20.0 10.5 0.10
Our Advantages
1. Reasonable price with excellent quality
2. Abundant stock and prompt delivery
3. Rich supply and export experience, sincere service
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer for steel pipe/sheet/coil, and our company also is a very professional a trade company for steel products.we can also provide a wide range of steel products.
Q: Will you delivery the goods on time?
A: Yes,we promise to provide best quality products and delivery on time .Honesty is our company's tenet.
Q: Do you provide samples ? is it free or extra ?
A: The sample could can provide for customer with free,but the courier freight will be covered by customer account.
Q: Do you accept the third party inspection?
A: Yes absolutely we accept.












Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
Related Projects

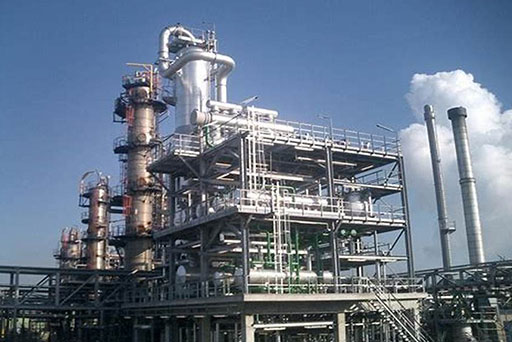

Construction
