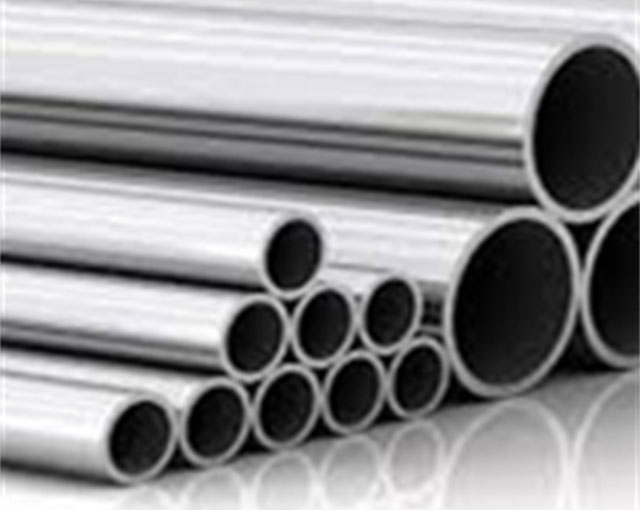

STAINLESS WELDED PIPE
STAINLESS WELDED PIPE

STAINLESS WELDED PIPE

Stainless steel welded pipe is continuously produced online. Generally, the welded steel pipe has high precision, uniform wall thickness, and high brightness inside and outside the pipe (the steel pipe is determined by the surface grade of the steel plate).
Size:Outside Diameter: 1 1/8''~36''Wall Thickness: SCH 5, SCH 10S, SCH 40S, SCH 80S
Standard:ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A778
Product introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product introduction
Keywords(pipe type): Stainless Steel Pipe, Stainless Steel Tube, Stainless Steel Tubing
Size:Outside Diameter: 1 1/8''~36''Wall Thickness: SCH 5, SCH 10S, SCH 40S, SCH 80S
Standard:ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A778
Steel Grades:304, 304/L, 304H, 310/S, 310H, 316, 316L, 321, 321H
Surface:Annealed, Pickling, Polished
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Packing:Waterproof Paper Wrapped, Packed in Wooden Cabins
Usage:In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts
Send email to us Download as PDF
Description
Characteristics
First, the small-diameter stainless steel welded pipe is continuously produced online. The thicker the wall thickness, the greater the investment of the unit and the welding equipment, and the less economical and practical it is. The thinner the wall thickness, the lower the input-output ratio will be. The process of the product determines its advantages and disadvantages. Generally, the welded steel pipe has high precision, uniform wall thickness, and high brightness inside and outside the pipe (the steel pipe is determined by the surface grade of the steel plate). Surface brightness), can be arbitrarily fixed. Therefore, it demonstrates its economy and aesthetics in high-precision, medium- and low-pressure fluid applications.

Welding characteristics
According to the welding technology, it can be divided into automatic welding and manual welding. Automatic welding generally uses submerged arc welding and plasma welding, and manual welding generally uses argon arc welding.

classification
According to the weld form, it is divided into straight welded pipe and spiral welded pipe.
According to the application, it is divided into general welded pipe, heat exchanger pipe, condenser pipe, galvanized pipe, oxygen-oxygen welded pipe, wire casing, metric welded pipe, idler pipe, deep well pump pipe, automobile pipe, transformer pipe, electric welding thin wall. Tube, welded profiled tube and spiral welded pipe

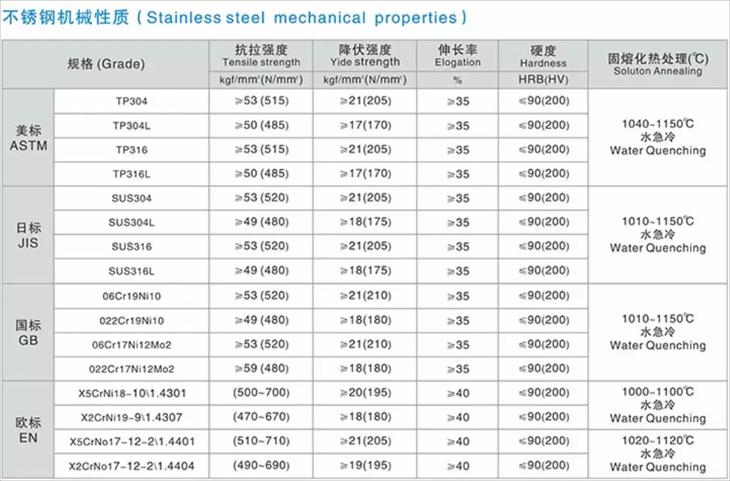

Technical data
Stainless Steel Heat Exchanger Tube
welding stainless steel sus304 condenser pipes 2 inch boiler tube
Standard OD(mm) WT(mm) Length(meters) Grade
ASTM A249,
ASTM A269,
EN 10217-7
15.88 to 114.3 0.3 to 4.0 Up to 18.3 meter 1.4301, 1.4306, 1.4404,
AISI 304/304l/316l, S31803/S32205, etc
Standard Outside Diameter Thickness Length
ASTM A249
(A1016)
<25.4 ±0.10 ±10%S OD<50.8+3-0
OD≥50.8+5-0
  ≥25.4~<38.1 ±0.15
  ≥38.1~<50.8 ±0.20
  ≥50.8~<63.5 ±0.25
  ≥63.5~<76.2 ±0.31
ASTM A269
(A1016)
<38.1 ±0.13 OD<12.7±15%
OD≥12.7±10%
OD<38.1+3.2-0
OD≥38.1+4.8-0
  ≥38.1~<88.9 ±0.25
  ≥88.9~<139.7 ±0.38
Standard

Painting & Coating
 Annealed, Pickling, Polished












Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
