API 5L GR.42 / 46 / 52 / 56 / 60 Pipes
API 5L is an industry standard for steel pipes that transfer oil, gas and water across long distances. It comes in a variety of grades, from GR.
Specifications | API 5L |
Nominal Pipe Size | 2″ to 24″ O.D. |
Wall Thickness | SCH10, SCH20, SCH30, STD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160, XXS DIN, JIS standard thickness |
Diameters | 1/2” to 24” |

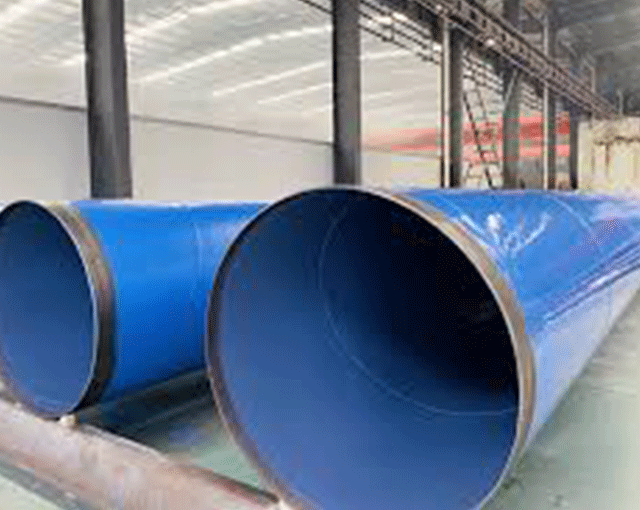

Coating | 3PE, FBE, Black, Varnished |
Length | 20 ft (6M), 40 ft (12M), Single Random, Double Random & Cut Length. |
API 5L Gr B SAW Pipe Sizes | 16" NB - 100" NB |
Pipe Ends | Plain End, Beveled End, Threaded end pipe |
API 5L | SAW pipe | |||
Grade B | C max | Mn max | P max | S max |
0.28 | 1.20 | 0.030 | 0.030 |
Mechanical properties of CS API 5L Gr B SAW Pipes
API 5L | Yield strength | Tensile strength | Tensile strength |
MPa (psi), min | MPa (psi), min | MPa (psi), min | |
Grade B | 245 (35 500) | 415 (60 200) | 415 (60 200) |
