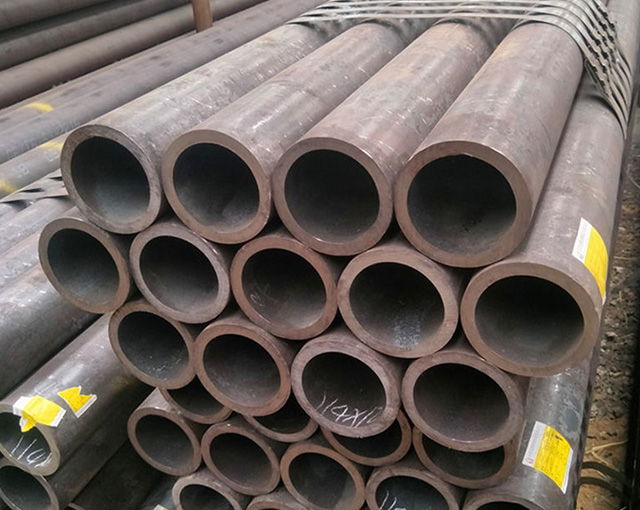

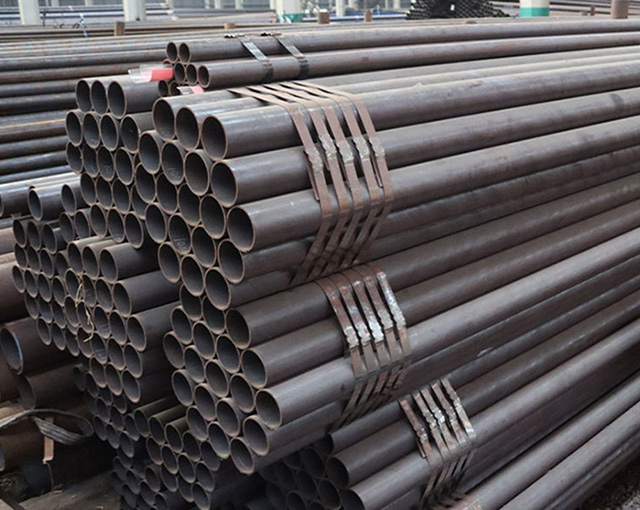

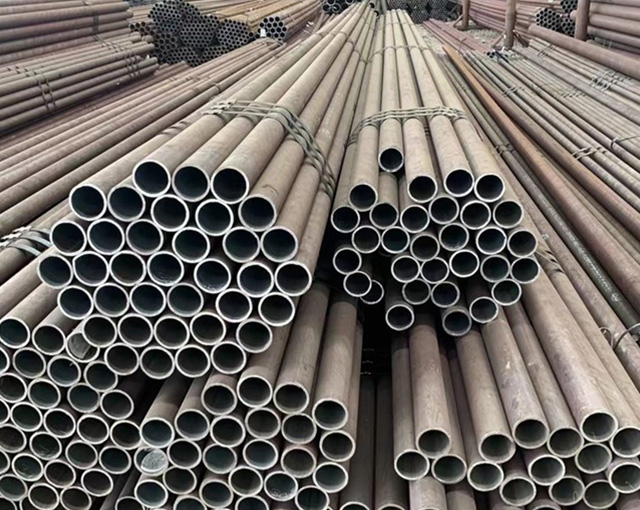

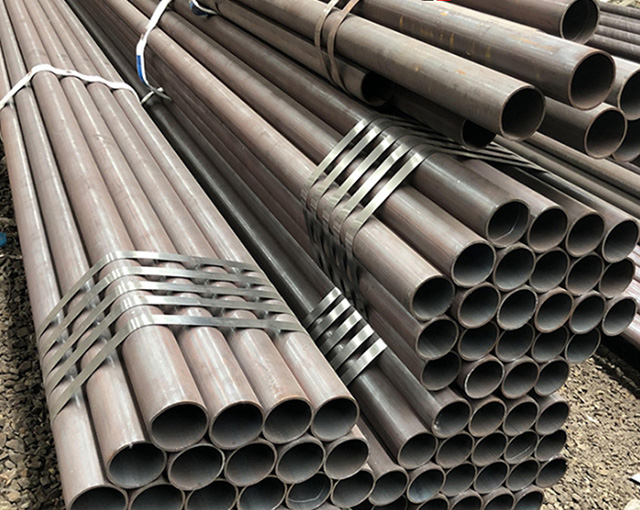

ASTM A519 4130 Alloy Steel Pipes
ASTM A519 4130 Alloy Steel Pipes
ASTM A519 4130 Alloy Steel Pipes
ASTM A519 4130 Alloy Steel Pipes
ASTM A519 4130 Alloy Steel Pipes
ASTM A519 4130 Alloy Steel Pipes
ASTM A519 4130 Alloy Steel Pipes
ASTM A519 4130 Alloy Steel Pipes

ASTM A519 4130 Alloy Steel Pipes

4130 is a common composite steel pipe with a very wide range of applications. It is mainly composed of iron, carbon and the addition of other alloying elements such as chromium, molybdenum and silicon to improve its mechanical properties and corrosion resistance.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction
4130 alloy steel pipe contains carbon 0.26~0.34, silicon 0.17~0.37, manganese 0.40~0.70, molybdenum 0.15~0.25, chromium 0.80~1.10. 4130 is equivalent to Japanese SCM430. This steel has high strength and toughness, high hardenability, and the critical hardenable diameter in oil is 15 to 70 mm. The steel also has good thermal strength and has sufficient high-temperature strength below 500°C, but it has sufficient high-temperature strength below 550°C. The intensity dropped significantly.

A519 4130 pipe has good weldability during welding, which makes it easier to process and connect during the manufacturing process. ASTM A519 Gr 4130 Seamless Pipes can be processed in a variety of ways, including bending, forming, forging, etc., to suit different design needs. ASTM A519 AISI 4130 Alloy Steel Pipe, although high in strength, has a relatively low density due to its low-alloy nature, thus reducing the weight of the component while maintaining strength. Due to its comprehensive properties, 4130 steel pipe is suitable for use in a variety of fields, including aviation, aerospace, automobile manufacturing, oil and gas extraction, etc., to meet the needs for high strength and durability in these fields.
Technical Data

Chemical composition (%)

Grade C Mn P S Si Cr Mo
4130 0.28-0.33 0.40-0.60 0.035 0.04 0.15-0.35 0.80-1.10 0.15-0.25

41 means a low alloy steel containing 1 % chromium and 0.2 % molybdenum.30 means a carbon content of 0.30%.In addition there will be around 0.2-0.5 % silicon, 0.5-1.0 % manganese, and under 0.1 % of each of a dozen or so other elements whose presence is unavoidable.The remaining 97-98 % is iron.

Mechanical properties (Mpa)

Grade Designation Condition Ultimate Strength Yield Strength Elongation in 2 in.or 50mm,% Rockwell,Hardness B Scale
ksi Mpa ksi Mpa
4130

HR

90 621 70 483 20 89


SR

105 724 85 586 10 95
  A 75 517 55 379 30

81

  N 90 621 60 414 20

89

4130 chromoly tubing began its first use in the aircraft industry. Race chassis builders began using the tubing for its strength to weight ratio.
Outside Diameter, OD (In Mm) & Wall Thickness, WT (In Mm) Of AISI Grade 4130 Seamless Pipes

Product Description Outside Diamter, OD (in mm) Wall Thickness, WT (in mm)>
AISI Grade 4130 Seamless Pipes 6mm to 430mm 0.8mm – 30mm
AISI Grade 4130 Round Pipe 6mm – 630mm 0.5mm-30mm
AISI Grade 4130 Square Pipe 12.7mm* 12.7mm to 300mm* 300mm 0.5mm-30mm
AISI Grade 4130 Rectangular Pipe 10*20mm to 100*200mm 0.5mm-30mm
company advantage
All our products are produced by professionals, and we have an efficient foreign trade team, you can fully trust us. Accept OEM and ODM orders. Any type of logo printing or design is available. Support OEM&ODM of special sizes or shapes. Provide efficient after-sales service to solve any problems.

FAQ
Q.What do your factory do regarding quality control?
A: We have obtained ISO, CE and other certifications. From materials to products, we checkevery process to maintain good quality.
Q.Do you provide custom made Products service?
A: Yes if you have your own design , we can produce according to your specification and drawing.
Q.Why AISI 4130 is better?
A.AISI/SAE 4130 steel grade is a versatile alloy with good atmospheric corrosion resistance and reasonable strength up to around 315º C (600º F).
