A213 T5 T9 Alloy Heat-Exchanger Steel Tubes

A213 T5 T9 Alloy Heat-Exchanger Steel Tubes

ASTM A213 is a standard specification for seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

What is the ASME SA213 standard?
ASME SA213/SA213M American Society of Mechanical Engineers Ferritic and austenitic alloy seamless steel tubes for boilers, superheaters and heat exchangers.
Chemical composition of SA213T5 seamless steel pipe: carbon: ≤0.15, manganese: 0.30~0.60, phosphorus: ≤0.025, sulfur ≤0.025, silicon ≤0.50, chromium: 4.0~6.0, molybdenum: 0.45~0.65.
ASTM A213 T9 and T5 alloy boiler tubes are high quality seamless steel tubes designed for high temperature applications such as boilers, superheaters and heat exchangers. These alloy tubes have excellent mechanical properties and corrosion resistance, and can withstand extreme high temperature and pressure working environments.
During the manufacturing process, ASTM A213 T9 and T5 alloy boiler tubes undergo precision processing and quality control to ensure their high quality and reliability. These steel pipes are available in a wide range of specifications and are suitable for a variety of different applications.
Product specifications: outer diameter 19.05mm~762mm, wall thickness 2mm~140mm
Production method: hot rolling, cold drawing, delivery status: heat treatment.

Technical Data

Item	Cold rolled/Hot rolled alloy steel seamless pipe
Standard	ASTM A209M/ASME 209M, ASME SA210, ASTM A213/ASME SA213M
Materials	A209 T1/SA209 T1, A209 T1b/SA-209 T1b, A209 T1a/SA209 T1a. T2, T5, T9, T11, T12, T22, T23, T24, T91, T911, T92, T122.
Description	Surface	black painted, PE coated, galvanized
	Length	5.8m, 6m, 11.8m, 12m, or as required
	Wall Thickness	1-120mm
	Outer Diameter	6-1200mm

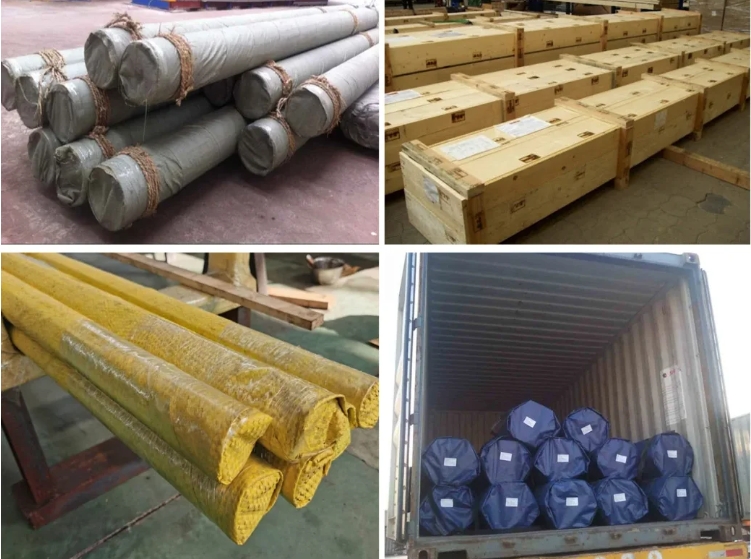

Package	Standard export seaworthy package or as required.
Delivery time	Prompt delivery or as the order quantity.
Export to	Alloy steel pipe applies to petroleum,chemical industry, electric power, boiler, high temperature resistant, low temperature resistant,corrosion resistant seamless steel pipe used.Alloy steel pipealso can made according to the customer.
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM
Contact	If you have any question,please feel free to contact me.

company advantage

gnee company has an advanced inspection and testing center that can conduct various physical and chemical tests on steel pipes. It has successively obtained ISO9001, ISO14001, ISO45001 system certification, special equipment manufacturing license, API 5L certificate and API 2B certificate, CE certificate, safety production standardization secondary enterprise and other standard quality system certifications.

FAQ
1.Q.How can I trust you?
A. We think honesty is the core of our company, you can come to know it personally so that you can check our credit.
2.Q: What product information do I need to provide?
A: You need to provide the grade, width, thickness, coating and tonnage you need to buy.
3.Q. How can I learn about your quality assurance?
A.Visiting our factory is the best way to understand each other.
