ASTM A213 T92 T22 T5 Heat Exchanger Pipe

ASTM A213 T92 T22 T5 Heat Exchanger Pipe

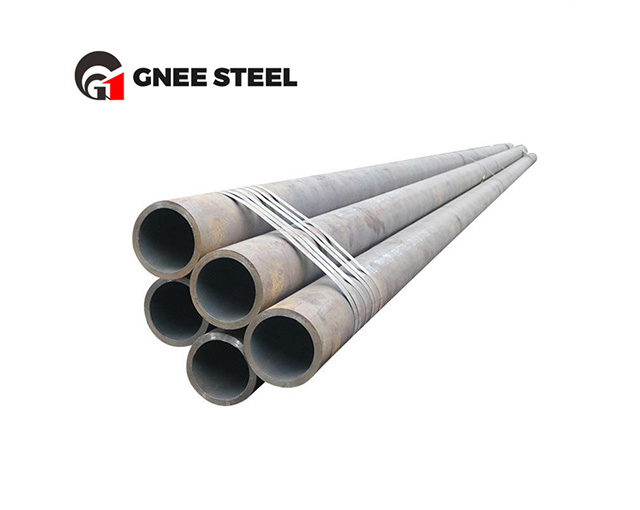

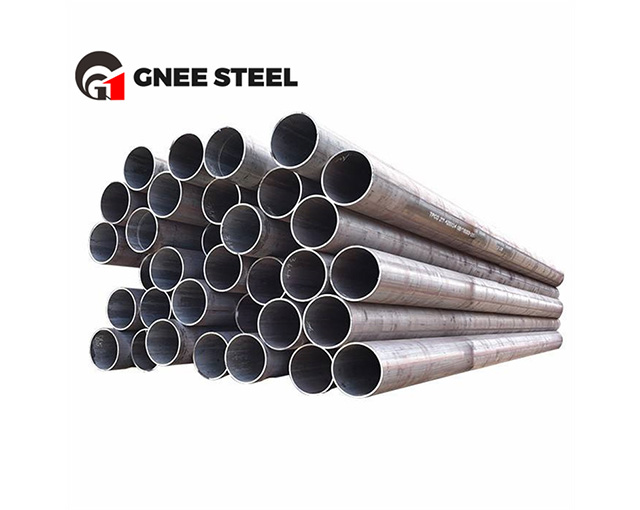

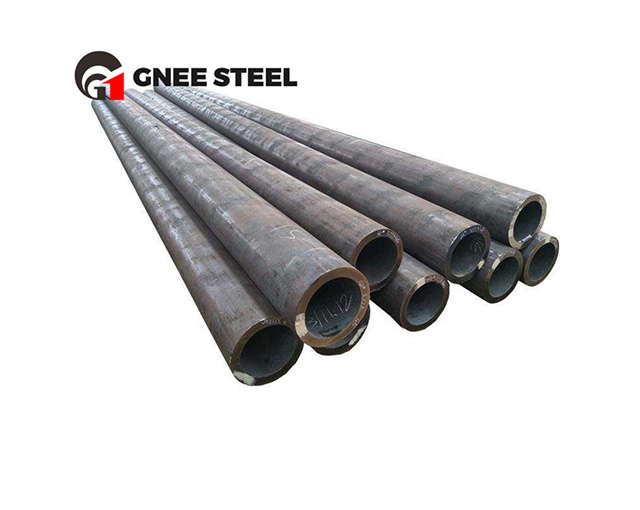

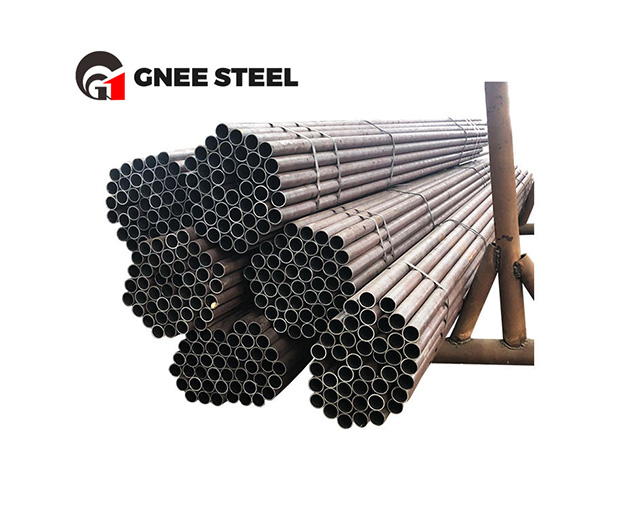

ASTM A213 T92, T22, and T5 heat exchanger tubes are seamless alloy steel tubes used for heat exchangers in high temperature and high pressure environments.

standard:ASTM

Surface :1. Galvanized 2. Black and Color Painting

Quote Now

Send E-mail

introduction

ASTMA213/A213M alloy steel pipe "Specification for ferritic and austenitic alloy steel seamless steel pipes for boilers, superheaters and heat exchangers"

SA213 T2 seamless steel tubes are mainly used for superheater and reheater system with working temperature lower than 540 ℃, and also for water wall tube in supercritical boiler.

SA213 T92 steel tubes can partially replace TP304H and TP347H austenitic stainless steel pipes to manufacture sub-critical, super-critical, or even super-supercritical power plant boilers with metal wall temperatures not exceeding 650℃.
Product grades: T2, T5, T5b, T5C, T9, T11, TI2, T21, T22, T23, T91 (Type1. Type2), T92, etc.
Product specifications:
Outer diameter 21.3mm~762mm
Wall thickness 2.0mm~130mm
Production method: hot rolling, cold drawing, hot expansion
Delivery status: Heat treatment and products should be confirmed to comply with the requirements of TSGD7002-2006 "Type Test Rules for Pressure Pipe Components".

Technical Data

ASTM A213/ASME SA213 T2, T22, T92 steel pipe Chemical Composition and Mechanical Properties

Grade	Chemical Composition%
Grade	C	Si	Mn	P, S Max	Cr	Mo	Ni Max	V	Al Max
T2	0.10~0.20	0.10~0.30	0.30~0.61	0.025	0.50~0.81	0.44~0.65	-	-	-
T22	0.05~0.15	Max 0.5	0.30~0.60	0.025	1.90~2.60	0.87~1.13	-	-	-
T92	0.07~0.13	Max 0.5	0.30~0.60	0.02	8.5~9.5	0.30~0.60	0.4	0.15~0.25	0.015
Grade	Chemical Composition%				Mechanical Properties
Grade	W	B	Nb	N	T. S	Y. P	Elongation	Hardness
T2	-	-	-	-	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)
T22	-	-	-	-	≥ 415MPa	≥ 205MPa	≥ 30%	163HBW(85HRB)

company advantage

Gnee will conduct quality control on some materials of the steel pipe. Each steel pipe produced will have its own identification label. The quality will check the chemical composition and physical properties, and then provide a material test certificate. Dimensions will be checked and pictures shown to customers to ensure all goods meet requirements.

FAQ

1.Q.What's your advantage?
A.Honest business with competitive price and professional service on export process.
2. Q: What services do you provide?
A: Customized service for each customer, please feel free to contact us!
3.Q.Do you have quality control?
A.Yes, we have got BV.SGS certification.
