ALLOY WELDED PIPE
ALLOY WELDED PIPE TUBE
ALLOY WELDED PIPES
 ALLOY 20 WELDED PIPE
ALLOY WELDED PIPE
ALLOY WELDED PIPE TUBE
ALLOY WELDED PIPES
 ALLOY 20 WELDED PIPE

ALLOY WELDED PIPE

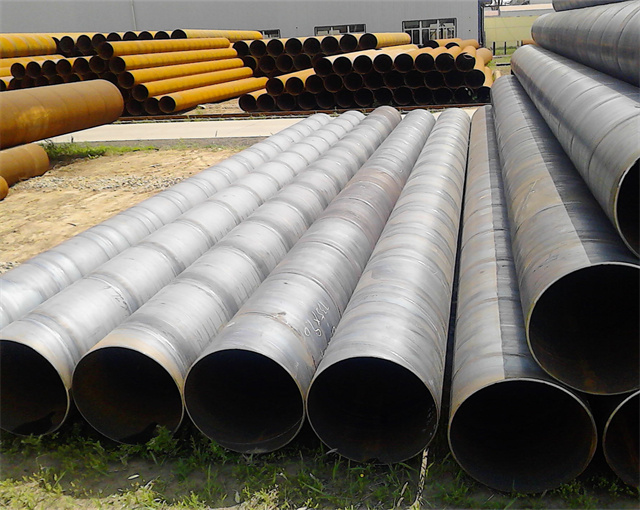

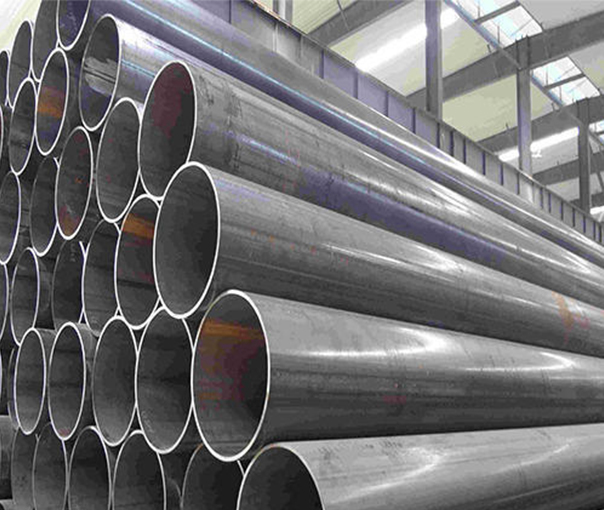

Our Alloy Steel Welded Pipes are made with precision and highest quality of raw material to provide maximum output at low cost. These Alloy Steel Welded Pipes are used in Industrial Sector like Building & Construction Industry, Petrochemical Industry, Oil & Gas Industry, and Chemical Industry.
OD:6-720MM
WT:0.5-120MM
Product Introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product Introduction
Keywords(pipe type):Alloy Pipe, Alloy Tube, Alloy Steel Pipe, Alloy Steel Tube
Size:Outside Diameter: norminal ~ 60''; Wall Thickness: up through 4'' Length: Single Random, Double Random, Cut Length max to 23m
Standard & Grade:ASTM A691 (Rolled & Welded)
Ends :Plain End, Beveled End, Thread End
Delivery :Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Packing:Bundled with Hemp Rope/In Bulk
Usage:In Petroleum, Aerospace, Chemical, Power, Boilers, Military Industry
Description
OD:6-720MM
WT:0.5-120MM
Length:3-16M
Application:
Construction Hall Structure, Sea Trestle, Airport Structure, Shipbuilding, Security Door Frames, Garage Doors, Strengthening Liners of Steel Doors and Windows, Indoor Partition Walls, Cable Bridge Structures and Expressway Safety Guards, Balustrade, Decorating, Residential, Ornamental Pipes
Agriculture: Agricultural Equipment
Industry Machinery,  Solar Stent, Offshore Oil Field, Mine Equipment, Electromechanical Hardware, , heavy engineering, Mining and Resources, Process Engineering, Materials Handling,Mechanical Parts
Traffic  Walking Rails, Roll-up Doors, Guardrail, Plaza Structure, Signage, Road Furniture, Fencing Logistics Storage Supermarket Shelves, Containers, Transport Industries, Commercial Construction Other Sports Apparatus, Leisure Equipment, Furniture, School Furniture
Material Storage Racks, Pallets, Hydraulic Platforms, Trusses, Columns, Purlins, Greenhouse Stands Towers
Technical data

A209 T1 material chemical composition:

Grade C Mn P max S max Si Mo
A209 T1 0.10-0.20 0.30-0.80 0.025 0.025 0.10-0.50 0.44-0.65

A209 T1 boiler pipe mechanical properties

Grade A209 T1
Tensile strength,ksi,mpa≥ 55(380)
Yield strength,ksi,mpa≥ 30(205)
Elongation,in 2in.or 50mm,≥,% 30



Chemical Composition of ASTM A213 T2 Alloy Steel Pipes

C % Mn % P % S % Si % Cr % Mo %
0.10-0.20 0.30-0.61 0.025 max 0.025 max 0.10-0.30 0.50-0.81 0.44-0.65



Mechanical Properties of ASTM A213 T2 Alloy Steel Pipes

Tensile Strength, Mpa Yield Strength, MPa Elongation, % Hardness, HB
415 min 205 min 30 min 163 max


P5/ T5 Pipe Chemical Composition:

Grades

C

Si

Mn

P

S

Cr

Mo

P5/T5

≤ 0,15

≤ 0,50

0,30-0,60

≤ 0,025

≤ 0,025

4,0-6,0

0,45-0,65

P5/ T5 Pipe Tube Mechanical Properties At Room Temperature:

Material

Yield strength

ReH/Rp0,2 N/mm² min

Tensile strength

Rm N/mm²

Elongation A

% min

P5/T5

205

415

20


Standard
Product Description Outside Diamter, OD (in mm) Wall Thickness, WT (in mm)>
Alloy Steel T1 Square Tube 12.7mm* 12.7mm to 300mm* 300mm 0.5mm-30mm
Alloy Steel T1 Electropolished Tubes 12.7mm to 250mm 0.5mm-30mm
Alloy Steel T1 Slot Round Tube 12.7mm to 76.2mm 0.5mm-2.0mm
Alloy Steel T1 Rectangular Tube 10*20mm to 100*200mm 0.5mm-30mm
Alloy Steel T1 Colour Coated Tube 6mm to 630mm 0.5mm-30mm
Alloy Steel T1 Round Tube 6mm – 630mm 0.5mm-30mm
Alloy Steel T1 Ornamental Tubes 12.7mm to 76.2mm 0.5mm-2.0mm
Alloy Steel T1 Triangle Tube 16mm to 85mm 0.5mm-3.0mm
Alloy Steel T1 Hexagonal Tubes 13mm to 85mm 0.5mm-2.0mm
Alloy Steel T1 Capillary Tubes 0.28mm to 10mm 0.08mm – 1.2mm
Alloy Steel T1 Custom Tube 20mm to 200mm 0.5mm-2.0mm
T1 Thin-Wall Alloy Steel Tubes 22mm*0.7mm to 108mm*2.0mm 0.5mm-2.0mm
T1 Inner/Outside Polished Alloy Steel Tubes 12.5mm to 203.2mm 1.0mm – 5mm
Alloy Steel T1 Seamless Tubes 6mm to 430mm 0.8mm – 30mm

Gnee is the A209 T1 T2 T5 seamless steel tubes manufacturer,have many A209 T1 T2 T5 super heater tubes in stock,if you need A209 T1 T2 T5 carbon steel,please contact us!











Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
