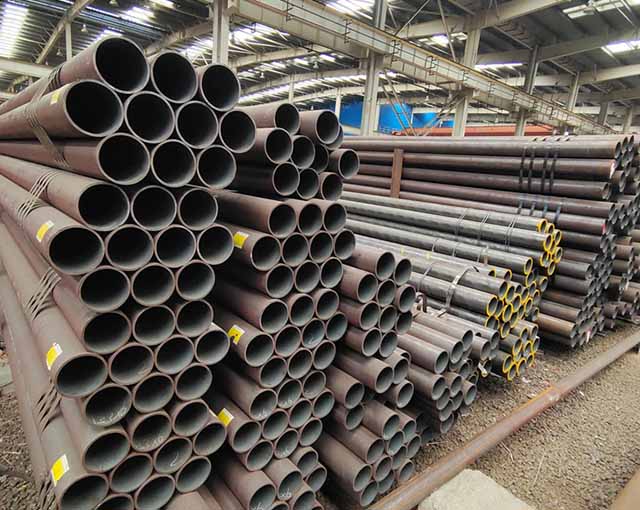

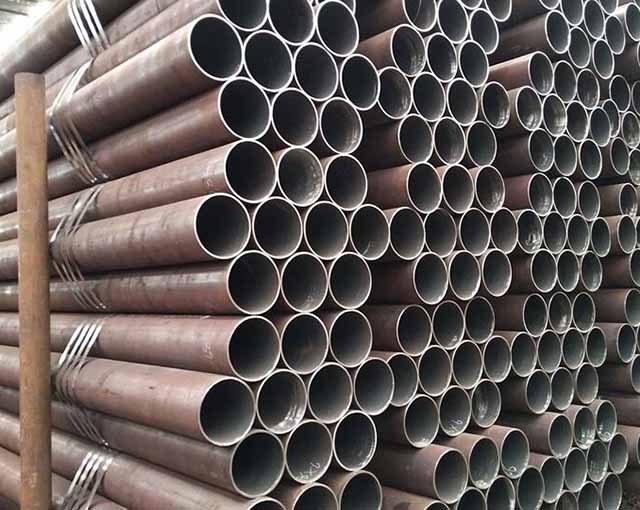

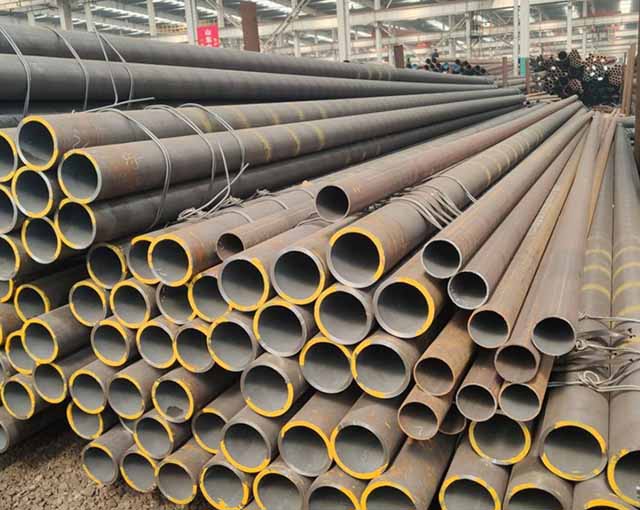

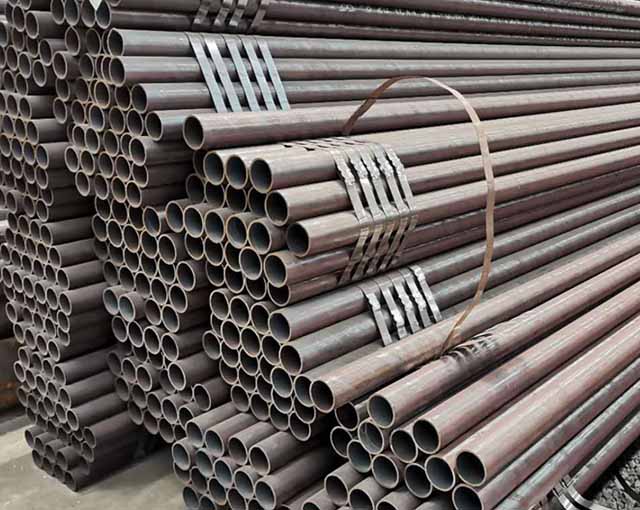

JIS G3454 STPG 370 Carbon Steel Pipes
JIS G3454 STPG 370 Carbon Steel Pipes
JIS G3454 STPG 370 Carbon Steel Pipes
JIS G3454 STPG 370 Carbon Steel Pipes
JIS G3454 STPG 370 Carbon Steel Pipes
JIS G3454 STPG 370 Carbon Steel Pipes
JIS G3454 STPG 370 Carbon Steel Pipes
JIS G3454 STPG 370 Carbon Steel Pipes

JIS G3454 STPG 370 Carbon Steel Pipes

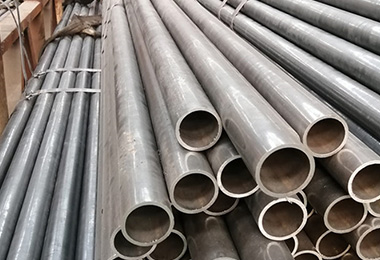

STPG370 is a low-carbon steel pipe material commonly used in some low-pressure pipeline systems.
standard:JIS
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
JIS G3454 Grade STPG 370 Tubes are low-cost Low Carbon Steel Tubes with max 025 % carbon content with combination of 030-090 % manganese easy to form and shape .
The minimum yield strength of the pipes is 216MPa and the minimum tensile strength is 373MPa. There are different schedules to the pipes such as the JIS G3454 Stpg370 Sch40 Pipe depending on the wall thickness and outer diameter. The material has carbon, silicon, manganese, phosphorus and sulfur.
STPG370 Carbon Steel Seamless Pipe has a wide range of applications. First, it is often used in water piping systems. Because STPG370 low-carbon round pipe has good processability and corrosion resistance, it is suitable for urban water supply, farmland irrigation and other fields.
Data table

Chemical Composition of JIS G3454 STPG 370 steel  pipe

Letter symbol of grade Chemical Composition %
C Si Mn P S
STPG 370 0.25 max. 0.35 max. 0.30 ~0.90 0.040 max. 0.040 max.

Mechanical Properties of JIS G3454 STPG 370 carbon pipe

Letter symbol of grade

Mechanical Properties
Tensile strength Yield strength Elongation %
kgf/m㎡ {N/ m㎡} kgf/m㎡ {N/ m㎡} No.11 and No.12 test pieces No. 5 test pieces No. 4 test piece
Longitudinal Transverse Longitudinal Transverse
STPG 370 38 {373}min 22{216} min 30 min 25 min 23 min 28 min

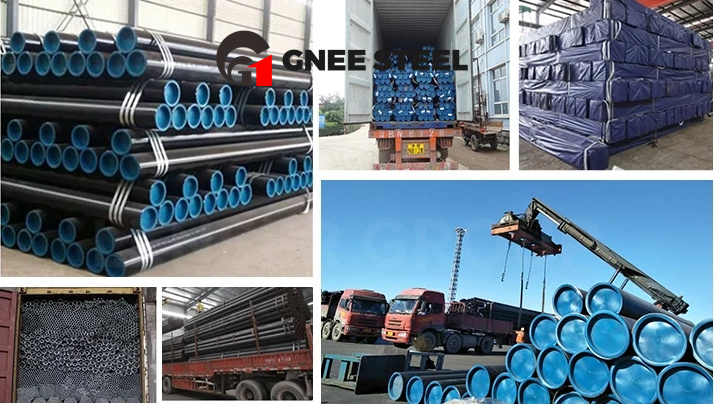

Transportation inspection
Each pipe that passes the inspection shall be marked with the following items. However, smaller pipes or other pipes specified by the buyer may be bundled together by marking each bundle in an appropriate manner. In both cases, the order in which marked items are arranged is not specified.
(1) Grade letter symbol (STPG 370)
(2) Alphabetical symbols indicating manufacturing processes
(3) Overall dimensions
(4) Manufacturer's name or its identifying brand
(5) The letter symbol Z indicating supplementary quality requirements

The dimensions shall be expressed as follows.
Nominal diameter × Nominal wall thickness
Example: 50A × Sch 40, 2 B × Sch 40
If you need it, please contact us in time!
