ASTM A179 and ASTM A192 are specifications for carbon steel pipes used in different applications.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction

What are the uses of astm a179 carbon steel seamless boiler tubes in industries?
ASTM A179 carbon steel seamless boiler tubes are a core component of many industrial processes and are widely used in various energy-related industries. These industries include oil, gas, petrochemicals, chemicals, power generation and nuclear energy. Due to its unique chemical composition and thermal properties, steel pipes effectively resist corrosion in heat exchangers and condensers, thereby extending equipment life. In addition, this steel pipe is easy to install and can withstand pressure, so steam can be smoothly discharged from the boiler. What's more, ASTM A179 carbon steel seamless boiler tubes can also provide an effective sound barrier for the piping system, reducing the noise caused by high-speed flowing fluids. This material and its properties ensure stability and safe equipment performance in many industrial environments where hot or corrosive liquids or gases need to be handled.

ASME SA192 Seamless Boiler Tube is designed for high temperature and high pressure applications in industrial areas. This pipe has many advantages.
First, it has excellent corrosion resistance and remains stable in harsh environments. Second, it exhibits excellent tensile strength, making it ideal for use in high-pressure applications. The ease of fabrication makes it particularly useful in manufacturing processes.
Another advantage of ASTM A192 and ASME SA192 seamless boiler tubes is that they are readily available in a variety of sizes and specifications, making them ideal for different boilers. This type of tubing is used in a variety of industries, such as petrochemical, power generation and refineries, and is also widely used in the manufacture of heat exchangers and condensers. These pipes play an important role in improving the overall efficiency and safety of the system in which they are located.

Technical Data


ASTM A179 Seamless Steel Pipe Chemical Composition

Chemical Composition (%) Max.
C Mn P≤ S≤ Si≤
0.06-0.18 0.27-0.63 0.035 0.035 0.25
A179 Carbon Steel Pipe Mechanical Properties

Tensile Strength(Mpa)

Yield Strength(Mpa)

Elongation(%)

Hardness(HRB)

325 Min

180 Min

35 Min

72 max


Chemical Composition Of ASTM A192 Pipe

C Si Mn P S
0.06-0.18 ≤ 0.25 0.27-0.63 ≤ 0.035 ≤ 0.035
Mechanical Properties Of ASME SA192 Pipe
Tensile Strength, MPa Yield Strength, MPa Elongation, %
≥325 ≥180 ≥35

Wall Thickness Tolerance of test requirements

Seamless, Cold-Finished Tubes

Outside Diameter
In. (mm)

Wall thickness Tolerance %

Over (+)

Under (-)

1 ½ (38.1)
and under

20 0
Over 1½ (38.1) 22

0

Outside Diameter Tolerance of test requirements

Cold-Finished Seamless Tubes

Outside Diameter
In. (mm)

Permissible Variations In. (mm)
Over (+)

Under (-)

Under 1 (25.4)

0.004 (0.1) 0.004 (0.1)

1 to 1 ½ (25.4 to 38.1), Incl

0.006 (0.15) 0.006 (0.15)

Over 11⁄2 to 2 [38.1 to 50.8], Excl

0.008 (0.2) 0.008 (0.2)
2 to 21⁄2 [50.8 to 63.5], Excl 0.010 (0.25)

0.010 (0.25)

21⁄2 to 3 [63.5 to 76.2], Excl 0.012 (0.3)

0.01

company advantage
The company's strength lies in its solid production base and technical strength, as well as its established reputation in a highly competitive market. Companies usually have advanced production equipment, technological innovation and rich experience, and are able to provide high-quality steel products to meet a wide range of customer needs.

FAQ

1.Q.Can you supply what is the service?
A.We can supply the kinds of metal materials and products,and we also can supply other process services.

2.Q.What services do you provide?
A.Customized service for each customer, please feel free to contact us!

3.Q.Do you have a quality control system?
A.Yes, we have our own quality control laboratory. Third party testing service is also available.








Related Products
Service

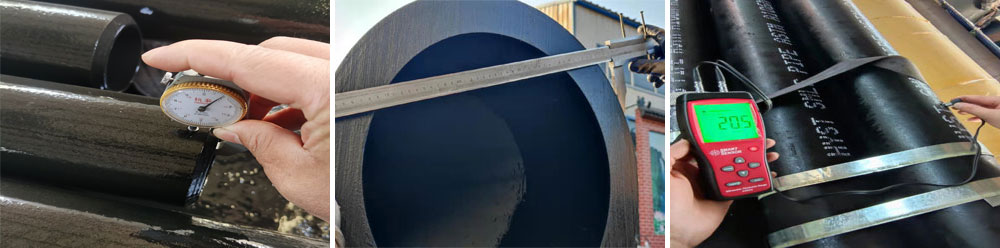

Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients

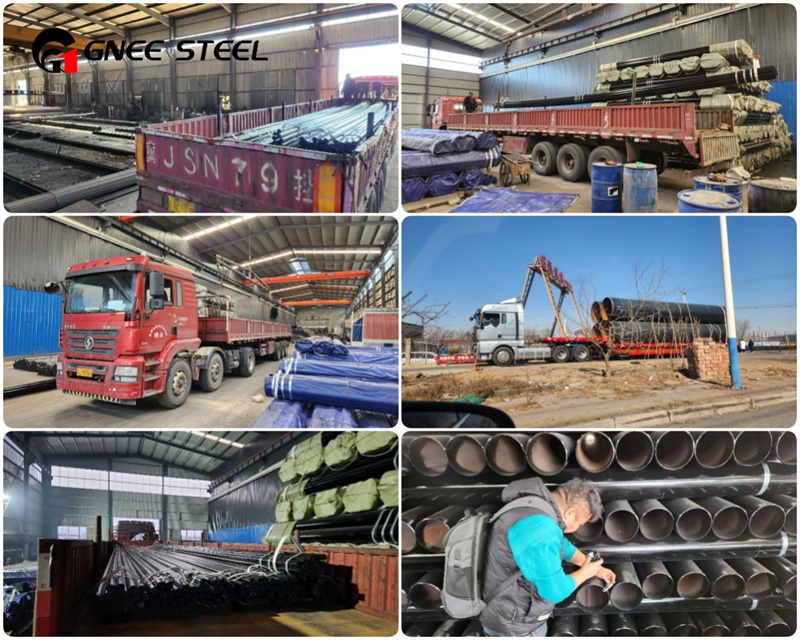

Logistics arrangement for client to help in cost cutting
