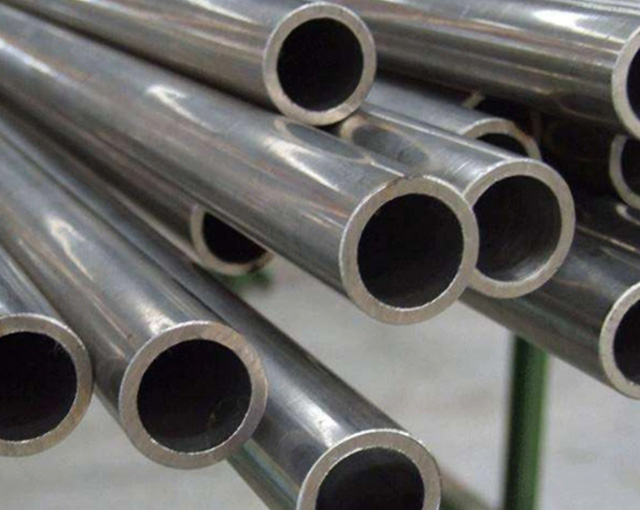

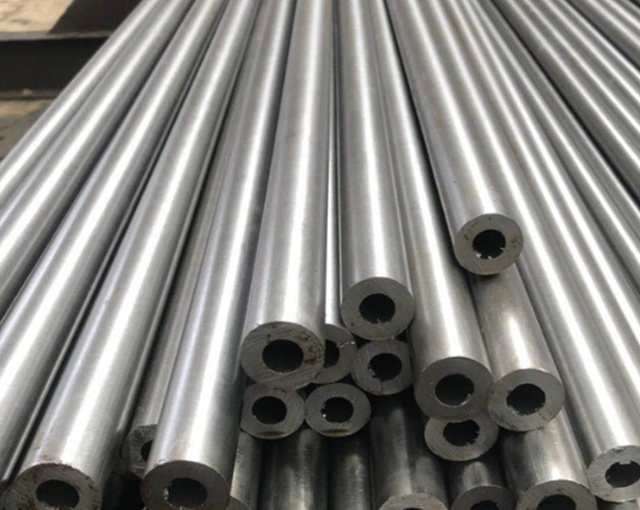

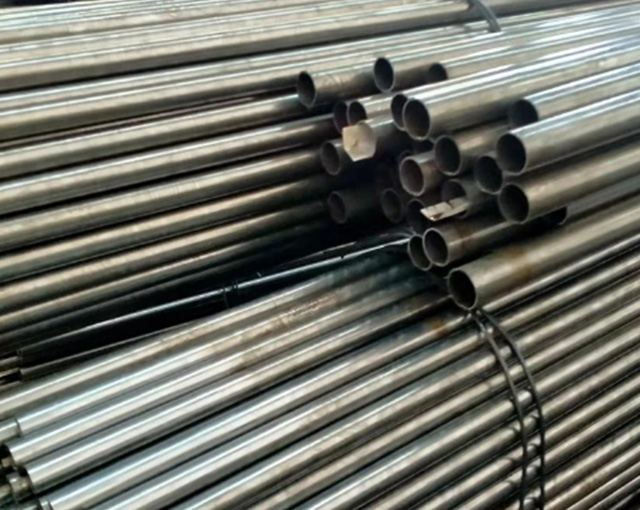

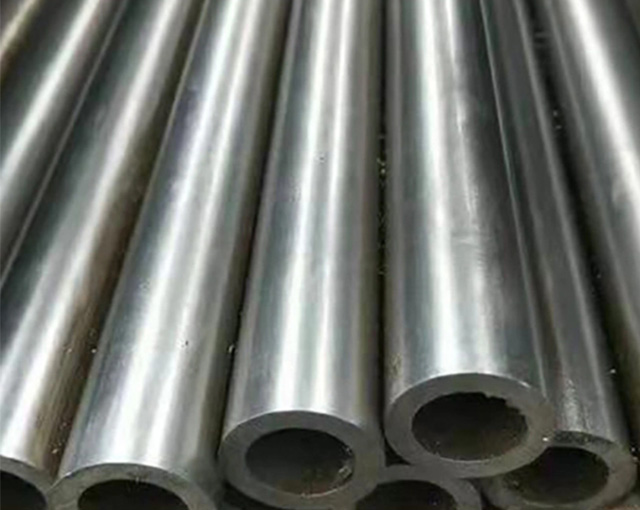

DIN 17175 Heat Resistant Seamless Steel Pipe
DIN 17175 Heat Resistant Seamless Steel Pipe
DIN 17175 Heat Resistant Seamless Steel Pipe
DIN 17175 Heat Resistant Seamless Steel Pipe
DIN 17175 Heat Resistant Seamless Steel Pipe
DIN 17175 Heat Resistant Seamless Steel Pipe
DIN 17175 Heat Resistant Seamless Steel Pipe
DIN 17175 Heat Resistant Seamless Steel Pipe

DIN 17175 Heat Resistant Seamless Steel Pipe

DIN 17175 heat-resistant seamless steel pipe is a seamless steel pipe used in the boiler industry. It has high heat resistance and is commonly used in boilers, pressure vessels and other equipment that need to withstand high temperature and high pressure.
standard:DIN
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
DIN 17175 seamless steel pipe is a pipe material designed for high temperature environments, also known as heat-strength pipe.
DIN 17175 steel pipes are available in a variety of specifications and grades, such as St35.8, St45.8, 15Mo3, etc. The outer diameter of these steel pipes usually ranges from 4.0 to 76.0 mm, the wall thickness ranges from 0.5 to 8.0 mm, and the length can reach up to 6000 mm.
St35.8 and St45.8 steel pipes are usually used to manufacture superheaters, reheaters, economizers, air preheaters for low-pressure and medium-pressure boilers, as well as pipes and containers in chemical processes.
Alloy structural steel pipes such as 15Mo3, 13CrMo44 and 10CrMo910 are suitable for manufacturing pressure-bearing parts under high temperatures due to the addition of alloying elements such as chromium and molybdenum.
Data table

DIN 17175 Chemical Composition:

DIN 17175 Steel Grade C Si Mn P S Cr Mo Ni% max
St35.8 ≤0.17 0.10-0.35 0.40-0.80 ≤0.040 ≤0.040 / / -
St45.8 ≤0.21 0.10-0.35 0.40-1.20 ≤0.040 ≤0.040 / / -
15Mo3 0.12-0.20 0.10-0.35 0.40-0.80 ≤0.035 ≤0.035 / 0.25-0.35 0,25- 0,35
13CrMo44 0.10-0.18 0.10-0.35 0.40-0.70 ≤0.035 ≤0.035 0.70-1.10 0.46-0.65 0.45- 0.65
10CrMo910 0.08-0.15 ≤0.50 0.40-0.70 ≤0.035 ≤0.035 0.20-0.25 0.90-1.20 0.90- 1.20

DIN 17175 Mechanical Property:

DIN 17175 Steel Grade Yield Strength (Mpa) Tensile Strength (Mpa) Elongation(%)
St35.8 ≥235 360-480 25
St45.8 ≥255 410-530 21
15Mo3 ≥275 450-600 20
13CrMo44 ≥290 440-590 20
10CrMo910 ≥280 450-600 18

OD: 48mm-720mm
WT: 4mm-58mm
Length: 5-12m or as requirement
Application: Hydraulic system pipeline pipe, pipe for boiler project, construction structure, etc.
Surface: Varnish/Oil (red & black) painting, Zinc coated (hot dipped galvanized), Anti-corrosion powder coating, 2PP/2PE, 3PP/3PE, FBE.
Delivery state: Hot Rolled, Cold Drawn
Steel Grade: St35.8, St45.8, 15Mo3, 13CrMo44, 10CrMo910

company advantage

Why Choose GNEE

GNEE has 14 steel production lines, 10 processing equipment for processing, bending, coating, heat treatment, cutting, drilling, beveling, tempering, surface treatment, etc., complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.
Our products are exported to more than 60 countries and regions including Russia, Canada, India, Brazil, and Southeast Asia.
If you would like to know more about our company or our products, please feel free to contact us.



FAQ

Q.Where are you located? Can I visit you?
A.Sure, you are welcome to visit our factory anytime.

Q.What is your after-sales service?
A.We provide after-sales service and 100% quality assurance for our products.

Q.What is your delivery time?
A.Delivery time is usually about 1 month, if we have stock, we can ship within 7 days.
