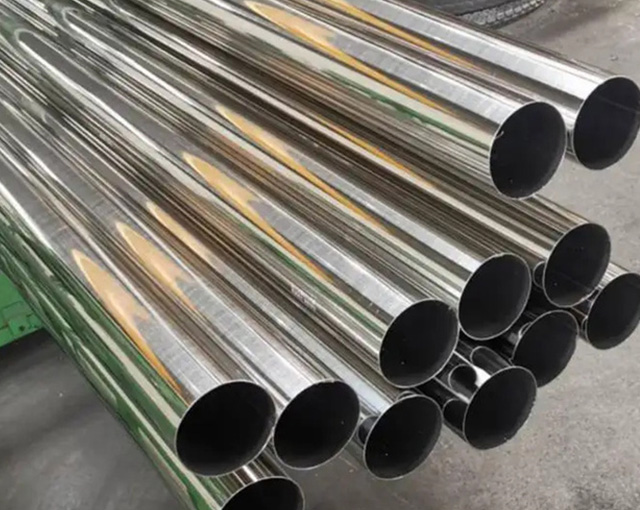

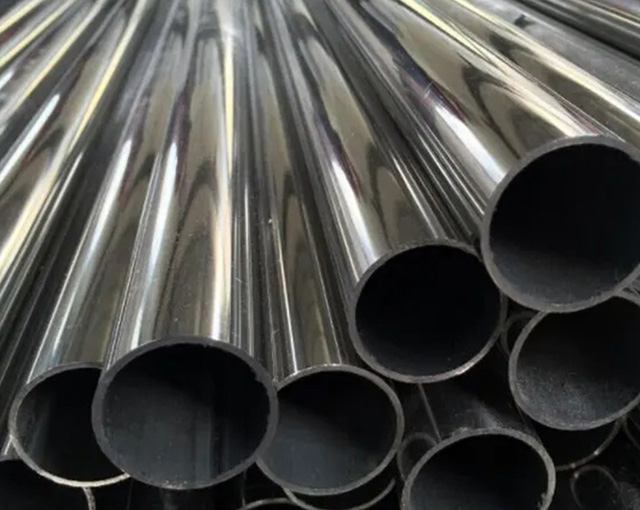

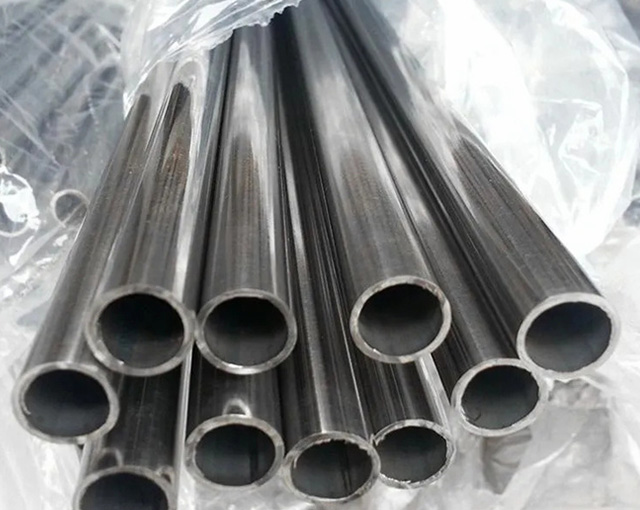

304 316 Stainless Steel Condenser Tube
Stainless steel is chosen for condenser tubes due to its excellent corrosion resistance, mechanical properties, and durability.
Grade |
C |
Mn |
Si |
P |
S |
Cr |
Ni |
Cu |
Nb+Ta |
|
630 |
min. max |
- 0.07 |
- 1 |
- 1 |
- 0.04 |
- 0.030 |
15 17.5 |
3 5 |
3 5 |
0.15 0.45 |
Condition |
Tensile Strength (MPa) |
Yield Strength 0.2% Proof (MPa) |
Elongation (% in 50mm) |
Hardness |
|
Rockwell C (HR C) |
Brinell (HB) |
||||
Solution Treated |
1105 typ |
1000 typ |
15 typ |
38 max |
363 max |
Condition 900 |
1310 min |
1170 min |
10 min |
40 min |
388 min |
Condition 1150 |
930 min |
724 min |
16 min |
28 min |
277 min |
