ASTM A268 STEEL PIPE
ASTM A268 STEEL PIPE

ASTM A268 STEEL PIPE

We sell high quality A268 stainless steel pipes/tubes in a size range of 6mm OD to 624 OD in thickness upto 25mm.
Size:6mm-530mm,Wall Thickness: 1mm-40mm (10S-160S)
Standard:JIS, AISI, ASTM, DIN, CE
Product introduction
Technical data
Related Products
Service
Related Projects
Inquiry
Product introduction
Keywords(pipe type):Stainless Steel Pipe, Stainless Steel Tube, Stainless Steel Tubing
Size:6mm-530mm,Wall Thickness: 1mm-40mm (10S-160S)
Standard:JIS, AISI, ASTM, DIN, CE
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Surface:Mirror,Satin,Hairline
Packing:Bundle or bulk , seaworthy packing or for the client's requirement
Usage:In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts.
Description

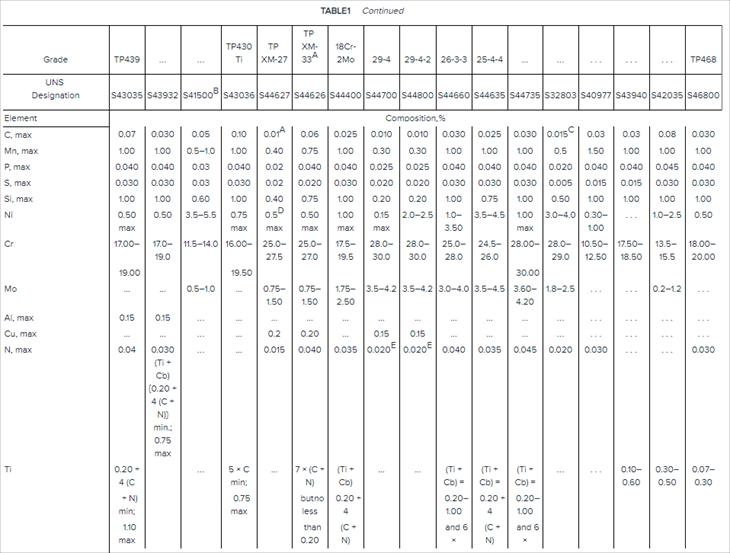

This specification covers a number of grades of nominal-wall-thickness, stainless steel tubing for general corrosion-resisting and high-temperature service. Most of these grades are commonly known as the “straight-chromium” types and are characterized by being ferromagnetic. Two of these grades, TP410 and UNS S 41500 (Table 1), are amenable to hardening by heat treatment, and the high-chromium, ferritic alloys are sensitive to notch-brittleness on slow cooling to ordinary temperatures. These features should be recognized in the use of these materials. Grade TP439 is used primarily for hot-water tank service and does not require post-weld heat treatment to prevent attack of the heat affected zone.
Technical data
Chemical Composition of Material   Material
Composition
201 202 304 316L 430
C =0.15 =0.15 =0.08 =0.035 =0.12
Si =1.00 =1.00 =1.00 =1.00 =1.00
Mn 5.5-7.5 7.5-10 =2.00 =2.00 =1.00
P =0.06 =0.06 =0.045 =0.045 =0.040
S =0.03 =0.03 =0.030 =0.030 =0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo       2.0-3.0
Mechanical Property Material Item 201 202 304 316
Tensile Strength =535 =520 =520 =520
Yield Strength =245 =205 =205 =205
Extension =30% =30% =35% =35%
Hardness (HV) <105 <100 <90 <90

NB Size OD
mm
40S
mm
5S
mm
10S
mm
S 10
mm
S 20
mm
S 40
mm
S 60
mm
XS/80S
mm
S 80
mm
S 100
mm
S 120
mm
S 140
mm
S 160
mm
XXS
mm
  1/8” 10.29     1.24     1.73     2.41
  1/4” 13.72     1.65     2.24     3.02
  3/8” 17.15     1.65     2.31     3.20
15 1/2” 21.34 2.77 1.65 2.11     2.77   3.73 3.73       4.78 7.47
20 3/4” 26.67 2.87 1.65 2.11     2.87   3.91 3.91       5.56 7.82
25 1” 33.40 3.38 1.65 2.77     3.38   4.55 4.55       6.35 9.09
32 1 1/4” 42.16 3.56 1.65 2.77     3.56   4.85 4.85       6.35 9.70
40 1 1/2” 48.26 3.68 1.65 2.77     3.68   5.08 5.08       7.14 10.15
50 2” 60.33 3.91 1.65 2.77     3.91   5.54 5.54       9.74 11.07
65 2 1/2” 73.03 5.16 2.11 3.05     5.16   7.01 7.01       9.53 14.02
80 3” 88.90 5.49 2.11 3.05     5.49   7.62 7.62       11.13 15.24
90 3 1/2” 101.60 5.74 2.11 3.05     5.74   8.08 8.08
100 4” 114.30 6.02 2.11 3.05     6.02   8.56 8.56   11.12   13.49 17.12
125 5” 141.30 6.55 2.77 3.40     6.55   9.53 9.53   12.70   15.88 19.05
150 6” 168.27 7.11 2.77 3.40     7.11   10.97 10.97   14.27   18.26 21.95
200 8” 219.08 8.18 2.77 3.76   6.35 8.18 10.31 12.70 12.70 15.09 19.26 20.62 23.01 22.23
250 10” 273.05 9.27 3.40 4.19   6.35 9.27 12.70 12.70 15.09 19.26 21.44 25.40 28.58 25.40
300 12” 323.85 9.53 3.96 4.57   6.35 10.31 14.27 12.70 17.48 21.44 25.40 28.58 33.32 25.40
350 14” 355.60 9.53 3.96 4.78 6.35 7.92 11.13 15.09 12.70 19.05 23.83 27.79 31.75 35.71
400 16” 406.40 9.53 4.19 4.78 6.35 7.92 12.70 16.66 12.70 21.44 26.19 30.96 36.53 40.49
450 18” 457.20 9.53 4.19 4.78 6.35 7.92 14.27 19.05 12.70 23.83 29.36 34.93 39.67 45.24
500 20” 508.00 9.53 4.78 5.54 6.35 9.53 15.09 20.62 12.70 26.19 32.54 38.10 44.45 50.01
550 22” 558.80 9.53 4.78 5.54 6.35 9.53   22.23 12.70 28.58 34.93 41.28 47.63 53.98
600 24” 609.60 9.53 5.54 6.35 6.35 9.53 17.48 24.61 12.70 30.96 38.89 46.02 52.37 59.54
650 26” 660.40 9.53     7.92 12.70     12.70
700 28” 711.20 9.53     7.92 12.70     12.70
750 30” 762.00 9.53 6.35 7.92 7.92 12.70     12.70
800 32” 812.80 9.53     7.92 12.70 17.48   12.70
850 34” 863.60 9.53     7.92 12.70 17.48   12.70
900 36” 914.40 9.53     7.92 12.70 19.05   12.70
Standard

Painting & Coating
Satin/Hairline,Mirror finish











Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
