Spanish customers are looking for a batch of high-quality steel pipe products to meet project needs.
After comparison, I became very interested in the quality, specification compliance, production and delivery cycle of gnee company's products. After visiting gnee's steel pipe factory and company, we successfully reached a cooperation.

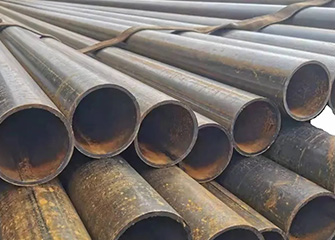

ASTM A179 Low Carbon Steel Tubes shall be made by the seamless process and shall be cold drawn. Heat and product analysis shall be performed wherein steel materials shall conform to required chemical compositions of carbon, manganese, phosphorus, and sulfur. The steel materials shall also undergo hardness test, flattening test, flaring test, flange test, and hydrostatic test.
Specifications:
Out diameter: 10.3 to 76.2 mm
Wall thickness: 1.2 to 12 mm
Length: 6 m above
The following is the delivery information about A179 steel pipes
| A179 Chemical Components and Mechanical Performance | |||||||||||||
| Standard | Grade | Chemical Components | Mechanical Performance | ||||||||||
| C | Si | Mn | P,S | Cu | Ni | Mo | Cr | v | Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
||
| ASTM A179 |
A179 | 0.06～0.18 | ／ | 0.27～0.63 | ≤0.035 | ／ | ／ | ／ | ／ | ／ | ≥325 | ≥180 | 35 |
| Specifications | ASTM A179 / ASME SA179 |
|---|---|
| Dimensions | ASTM, ASME and API |
| Size | 1/8″NB TO 30″NB IN |
| Diameter | 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm. |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | Seamless – Hot Rolled / Cold Drawn |
| Form | Round, Square, Rectangular, Hydraulic Etc |
| Length | 5800mm; 6000mm; 6096mm; 7315mm; 11800mm; and so on. Max length: 27000mm, also U bending can be offered. |
If your project also requires ASTM A179 steel pipe, please feel free to contact us if you have any further questions or require additional information.
