ASTM A556 steel pipe is a seamless carbon steel boiler and superheater tube used for high temperature service, especially in boiler and superheater applications.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Technical Data
Related Products
Service
Related Projects
Inquiry
introduction

ASTM A556 steel pipe is a seamless carbon steel boiler and superheater tube used for high temperature service, especially in boiler and superheater applications. ASTM A556 carbon steel pipes are available in different grades such as Grade A2, Grade B2, and Grade C2. ASTM A556 seamless steel pipe is mainly used in high temperature heater systems.

ASTM A556 boiler steel tubes are primarily used in feed water heating systems in boilers and superheaters. Due to their excellent high temperature resistance and corrosion resistance, these steel pipes can operate stably for a long time in harsh working environments, ensuring the safe and reliable operation of feed water heaters.

Technical Data

ASTM A556 Chemistry Composition

Grade

C

Si

Mn

P

S

B2

≤0.27

≥0.10

0.29-0.93

≤0.035

≤0.035

ASTM A556 Physical Property

Grade

Tensile Strength MPa

Yield Strength MPa

Elongation

Hardness HRB

A2

320 min

410 min

35

72

B2

410 min

260 min

35

79 min



ASTM A556 steel pipe can be delivered in U-bend form for use in feedwater heater applications.
The U-bend configuration allows for efficient heat transfer and is commonly used in tubular feedwater heaters.
ASTM A556 specification covers minimum wall thickness seamless cold drawn carbon steel pipe for these applications.

Tolerances:

Tolerances according to specification or according to agreement. Standard tolerances are:

Processing methods OD WT
Hot finished +/- 1% +/-12.5%
Cold finished +/-0.75% +/-10%
company advantage

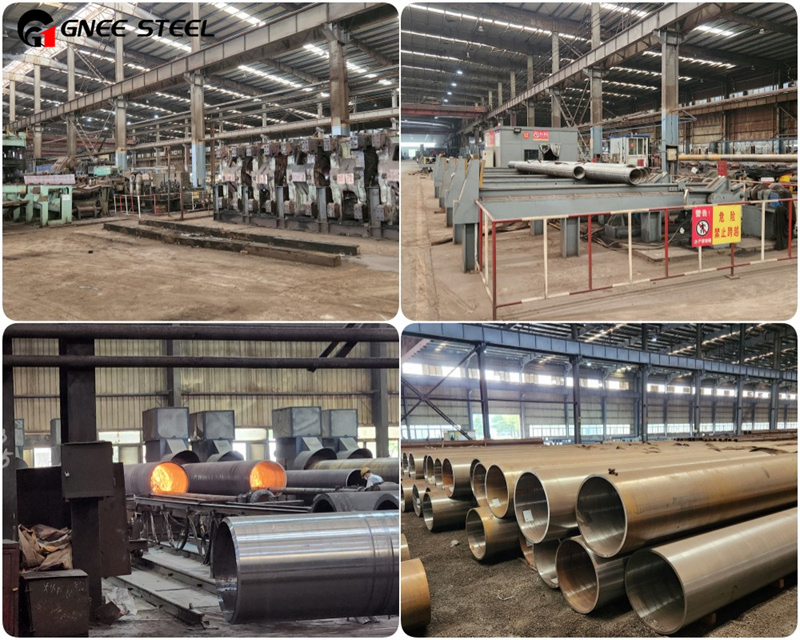

gnee invested 200 million yuan to transform advanced equipment and production lines, including the implementation of ISO9001-2000 quality management system and ISO14001 environmental protection system. At the same time, it actively developed diversification and formed a production system based on carbon steel and stainless steel pipes as its main products, covering Pipes, profiles, plates.
