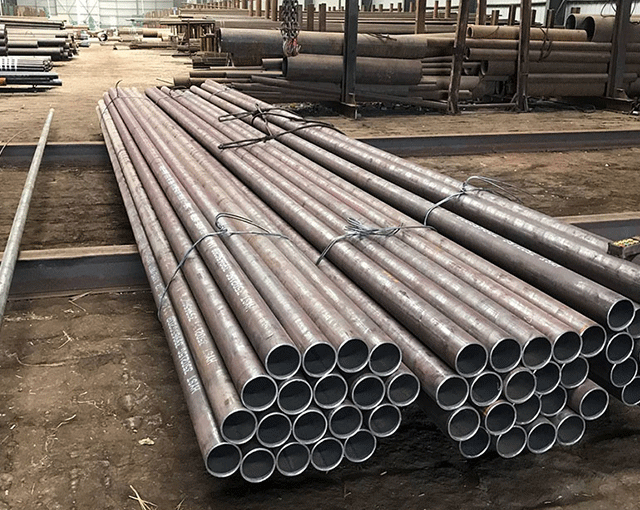

Our provided ASTM A106 Grade A Carbon Steel Pipes are designed using high-grade components at our well-equipped infrastructure unit. ASME SA 106 Grade A Carbon Steel Tubes has some other great features to offer such as reliable, affordable, superior finish and more. Our company offers ASTM A106 Grade A Carbon Steel Tubes, which are precision designed to provide satisfaction to our clients.
| Specifications | : | ASTM A 106, ASME SA 106 |
| Size Range | : | 1/2” NB to 36” NB |
| Thickness | : | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Type | : | Seamless / ERW / Welded / Fabricated / CDW |
| Length | : | Single Random, Double Random & Required Length, Custom Size – 12 Meter lengths |
| End Connections | : | Plain, Bevel, Screwed, Threaded |
| Outside Coating | : | Black Painting, Anti-Corrosion Oil, Galvanised Finish, Finish as per customer Requirements |
| Chemical Composition (%) | ||||||||||
| Grade | C(Max) | Mn | Si(Min) | Cu(Max) | Ni(Max) | Cr(Max) | Mo(Max) | V(Max) | P(Max) | S(Max) |
| A | 0.25 | 0.27~0.93 | 0.1 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 | 0.035 | 0.035 |
| Mechanical Properties: | ||
| Grade | Tensile Strength (Mpa), Min. | Yield Strength (Mpa), Min. |
| A | 330 | 205 |
| NPS | 1/8″ to 1 1/2″ | Over 1 1/2″ to 4″ | Over 4″ to 8″ | Over 8″ to 18″ | Over 18″ to 26″ | Over 26″ to 34″ | Over 34″ to 48″ |
| OD Tolerance | +/- 0.4 | +/- 0.8 | +1.6, -0.8 | +2.4, -0.8 | +3.2, -0.8 | +4.0, -0.8 | +4.8, -0.8 |
| WT Tolerance | +/- 12.5% | ||||||
| Weight Tolerance | +10%, -3.5% | ||||||
