ASTM A333/SA333 Grade 6 Seamless Pipe
ASTM A333/SA333 Grade 6 Seamless Pipe
ASTM A333/SA333 Grade 6 Seamless Pipe
ASTM A333/SA333 Grade 6 Seamless Pipe
ASTM A333/SA333 Grade 6 Seamless Pipe
ASTM A333/SA333 Grade 6 Seamless Pipe
ASTM A333/SA333 Grade 6 Seamless Pipe
ASTM A333/SA333 Grade 6 Seamless Pipe

ASTM A333/SA333 Grade 6 Seamless Pipe

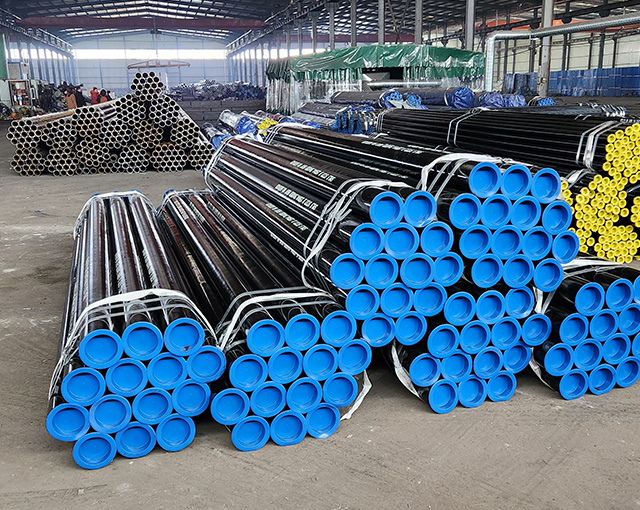

ASME SA333 GR.6 seamless steel pipe is an American standard seamless steel pipe for low-temperature pipelines, which is used for low-temperature pressure vessel pipelines and low-temperature heat exchanger pipelines.
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
A333 GR.6 American Standard seamless steel pipe is a steel pipe material specially designed for high temperature environment. It has good performance in the low temperature range of -45℃ to -195℃, and its maximum temperature resistance can reach 550℃. It can be used in various harsh environmental conditions, such as high temperature, high pressure, strong corrosion and other environments.
Data table

ASTM A333Gr.6 steel pipe chemical composition:

Carbon: ≤0.30, Silicon: ≥0.10, Manganese: 0.29~1.06, Phosphorus: ≤0.025, Sulfur: ≤0.025, Chromium: ≤0.030, Nickel: ≤0.040, Molybdenum: ≤0.12, Copper: ≤0.40, Vanadium: ≤0.08, Niobium; ≤0.02.
Based on agreement, the niobium content may be increased to 0.05% for heat analysis and 0.06% for finished product analysis.



Mechanical properties of ASTM A333 Gr.6 Carbon Steel Seamless Pipes:
Tensile strength: minimum 415 MPa,
Yield strength: minimum 240 MPa,
Elongation: minimum 30%,
Commonly used: Impact test temperature -45℃,
The above requirements can ensure the normal use of the pipeline in low temperature environment, with sufficient strength and toughness.

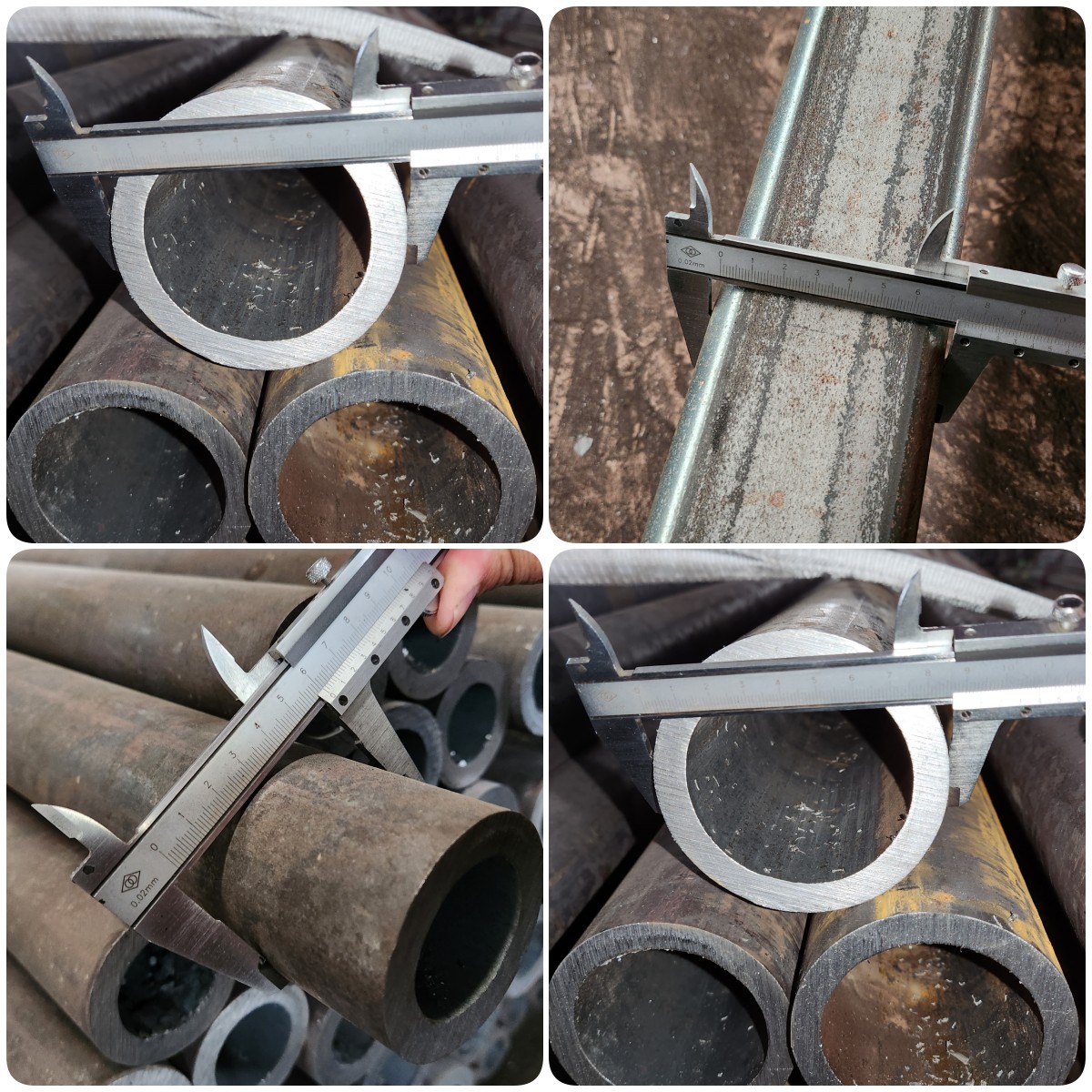

Product specifications: outer diameter 21.3mm~762mm, wall thickness 2.0mm~140mm
Heat treatment requirements for SA 333 GR 6 tube:
1. Normalizing above 815°C.
2. Normalizing above 815°C, then tempering.
3. Hot forming between 845-945°C, then furnace cooling above 845°C (applicable only to seamless tubes).
4. Tempering after processing.
5. Quenching above 815°C, then tempering.

company advantage

Advantages of Choosing GNEE A333 GR 6 Steel Pipe

GNEE has modern large open-air warehouses and indoor warehouses with 20,000 tons of available goods.
GNEE has exported to Southeast Asia, the Middle East, Europe and even African countries, and has gained a good reputation from all customers. Not only focusing on product sales, but also devoting ourselves to providing customers with a worry-free after-sales service experience.
If you have any questions about product information or ordering, please feel free to contact us for more details!








Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
