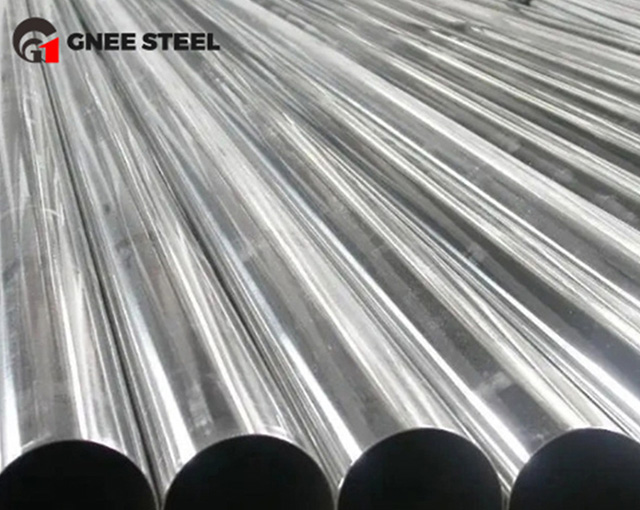

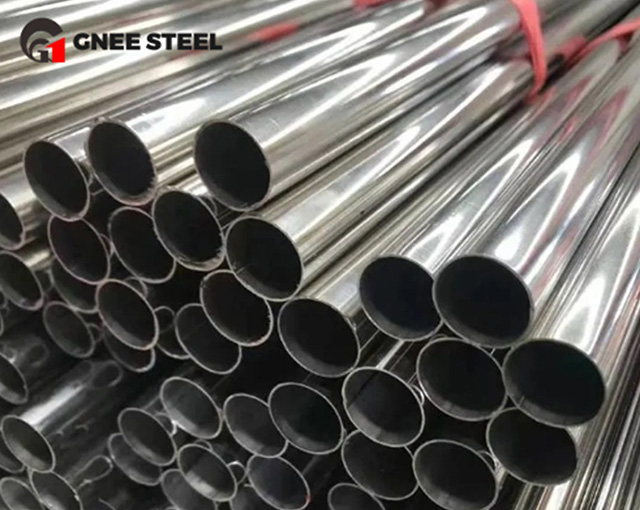

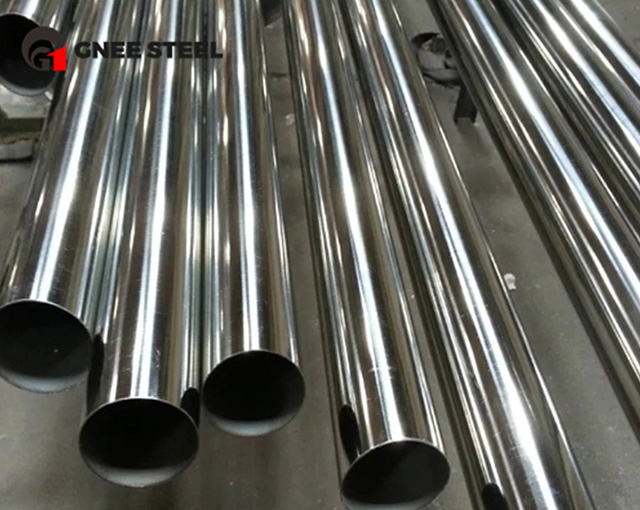

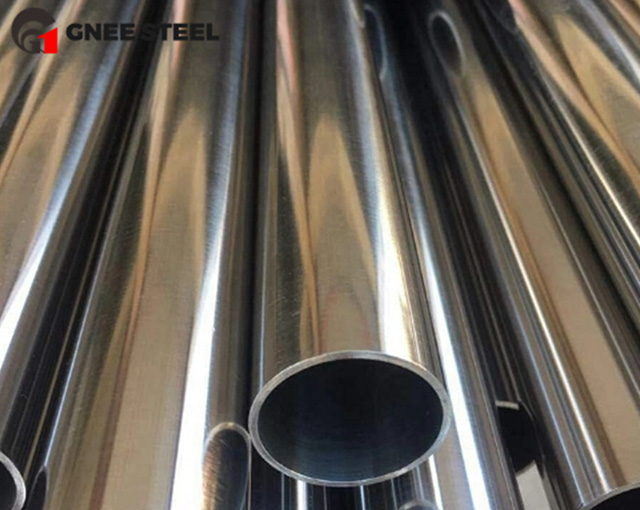

ASTM A312 TP304 Stainless Steel Pipe
ASTM A312 TP304 Stainless Steel Pipe
ASTM A312 TP304 Stainless Steel Pipe
ASTM A312 TP304 Stainless Steel Pipe
ASTM A312 TP304 Stainless Steel Pipe
ASTM A312 TP304 Stainless Steel Pipe
ASTM A312 TP304 Stainless Steel Pipe
ASTM A312 TP304 Stainless Steel Pipe

ASTM A312 TP304 Stainless Steel Pipe

ASTM A312 TP304 stainless steel pipes are widely used in the petroleum and chemical industries, mainly for conveying corrosive media such as acids, alkalis, salts, etc.
standard:ASTM
shape:Round/Rectangle
introduction
Data table
Related Products
Service
Related Projects
Inquiry
introduction
ASTM A312 TP304 stainless steel round tube is mainly composed of chromium, nickel and other elements, with good corrosion resistance, and can resist the erosion of most acids, alkalis, salts and other chemical substances.
The production process of 304 Stainless Steel Pipe mainly includes hot rolling, cold rolling, welding, polishing and other steps. Through high temperature or room temperature rolling, the stainless steel sheet is turned into the required tube shape.
Finally, through polishing, the surface of TP304 stainless steel pipe is smooth and shiny.
Data table

Chemical Composition of ASME SA 312 TP 304 Seamless Pipe

Grade Carbon Sulfur Manganese Chromium Phosphorus Silicon Nickel
TP304 0.08 0.03 2 18.0-20.0 0.045 1 8.0-11.0

Mechanical Properties of ASTM A312 Grade TP304 Round Pipe

Material Yield Strength Heat Tensile Strength Temperure Elongation
Ksi (MPa), Min. Treatment Ksi (MPa), Min. Min.º F(º C)
TP304 30(205) Solution 75(515) 1900 (1040) 35

ASTM A312 TP304 pipe Specification

Size ½ to 6 inch Nominal Bore
Wall Thickness 0.1 - 60 mm
Length

Single Random Length 5 to 7 Meter

Double Random Length 10 - 12 Meter

Types Welded, Seamless, ERW, EFW Supplier and Manufacturer
Surface Finish Polished, Bright, Annealing, Cold Finish, Pickling
company advantage

Why Choose GNEE

GNEE has 14 steel production lines, 10 processing equipment for processing, bending, coating, heat treatment, cutting, drilling, beveling, tempering, surface treatment, etc., complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.
If you would like to know more about our company or our products, please feel free to contact us.


FAQ

Q.How do we trust your company?
A. We specialist in steel business for many years, authenticated by SGS,welcome to visit our factory.

Q: What services do you provide?
A: Customized service for each customer, please feel free to contact us!

Q. Do you have a quality control system?
A.Yes, we have our own quality control laboratory.








Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
Related Projects
Marine engineering
2022-08-02 10:37:33
Marine engineering
Mining
2022-08-02 10:43:56
Mining
 Drinking Water Transportation
2024-06-14 09:50:55
Drinking Water Transportation
standard:ASTM
Surface :1. Galvanized 2. Black and Color Painting
