TITANIUM STANDARDS PARTS

Our company produces titanium standard parts: a variety of titanium bolts, titanium nuts, titanium washers, material: TA1, TA2, TC4, GR1, GR2, GR5, Executive Standard: GB GB, American ANSI, British BS, German system DIN , the international standard ISO.
Type: Titanium Standard Parts
Application: Industrial
product introduction
Technical Date
Related Products
Service
Related Projects
Inquiry
product introduction
Short Description:

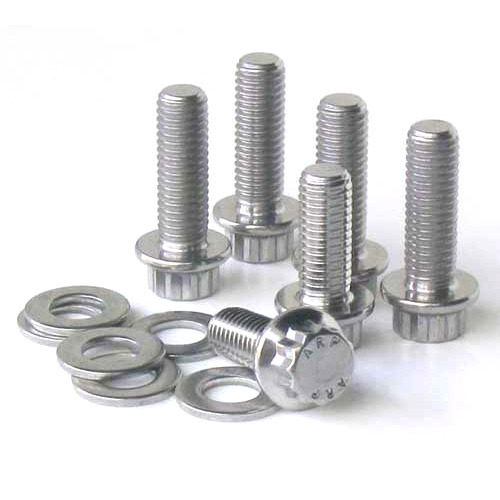

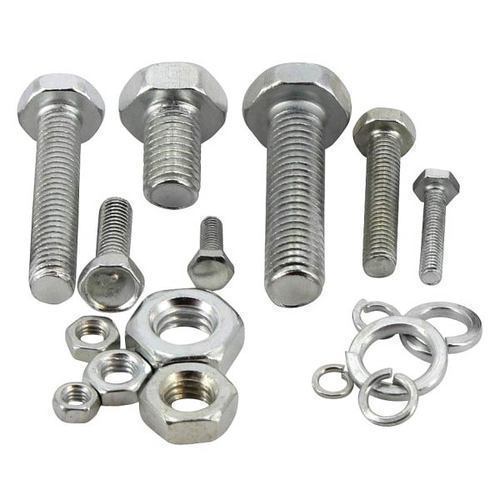

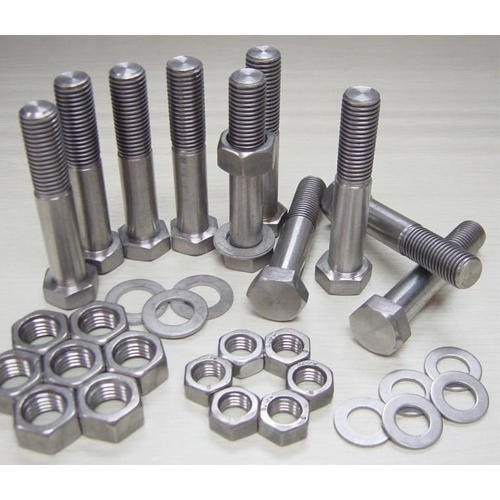

Types:Titanium bolt,Titanium threaded stud,Titanium washer,Titanium screw,Titanium hex nut
Material:CP titanium, titanium alloy
Grade:Gr1, Gr2, Gr4, Gr5, Gr7, Gr9, Gr11, Gr12, Gr16, Gr23 etc
Standard:DIN, ANSI, AMSE, ISO
Standard:Annealed (M)
Description
Production of DIN, ANSI/AMSE, ISO, JIS and other standards and non-standard high-strength titanium fasteners. Usually include bolts, screws, nuts, washers, retaining ring, and various special-shaped pieces. Firstly, we will do the heat treatment, chemical composition testing, mechanical properties testing of titanium bars, titanium plates and other basic materials. After the process of straightening, leveling and polishing, cut into the appropriate size. And then proceed to turning, hot stamping, compression screw, heat treatment, polishing, cleaning, inspection, and a series of procedures, eventually to produce the high quality titanium fasteners. We have the advanced production equipment which ensured our products to achieve the best in each production link.

Our company has a lot of titanium fasteners inventory, which can satisfy the global small amount of orders and those customers with urgent delivery requirement. At the same time, we also provide non-standard products according to drawings provided by customers.
Technical Date
Mechanical Characteristics Of Titanium Fasteners
Grade Tensile Strength (min) Yield Strength 0.2% Offset Elongation in 2 inch or 50mm % (min)
KSI MPa KSI MPa
Gr.1 35 240 20 – 45 138 – 310 24
Gr.2 50 345 40 – 65 275 – 450 20
Gr.3 65 450 55 – 80 380 – 550 18
Gr.4 80 550 ≥70 ≥483 15
Gr.5 138 950 ≥128 ≥880 14
Gr.7 50 345 ≥40 ≥275 24
Gr.9 125 860 ≥105 ≥725 10
Gr.12 70 483 ≥50 ≥345 18
Gr.23 125 860 ≥115 ≥790 15

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Titanium Gr. 2 4.5 g/cm3 1665 °C (3030 °F) Psi – 49900 , MPa – 344 Psi – 39900 , MPa – 275 20 %
Titanium Gr. 5 4.43 g/cm3 1632 °C (2970 °F) Psi – 138000 , MPa – 950 Psi – 128000 , MPa – 880 14 %

Chemical Material Composition Of Titanium Fasteners
Grade Fe% C% N% H% O% Al% V% Mo% Ni% Pd% Ti
Gr1 0.2 0.08 0.03 0.015 0.18 BAL.
Gr2 0.3 0.08 0.03 0.015 0.25 BAL.
Gr3 0.3 0.08 0.05 0.015 0.35 BAL.
Gr4 0.3 0.08 0.05 0.015 0.40 BAL
Gr5 0.25 0.08 0.03 0.015 0.02 5.5 – 6.75 3.5 – 4.5 BAL
Gr7 0.3 0.08 0.03 0.015 0.25 0.12 – 0.25 BAL.
Gr9 0.25 0.08 0.03 0.015 0.15 2.5 – 3.3 2.0 – 3.0 BAL.
Gr12 0.3 0.08 0.03 0.015 0.25 0.2 – 0.4 0.6 – 0.9 BAL.
Gr23 0.3 0.08 0.03 0.015 0.13 5.5 – 6.75 B
Standard
Standards
Standard Description Standard Description
DIN 84 Slotted cheese head screws DIN 439 Jam nuts
DIN 125 Flat washers DIN 963 Slotted countersunk flat head screws
DIN 127 Spring lock washers DIN 965 Phillips flat head machine screws
DIN 912 Hex socket head cap screws DIN 985 Lock nuts (with non-metallic insert)
DIN913/DIN 914/DIN915/DIN916 Set screws DIN 1665/DIN 6921 Hex bolts with flange
DIN 931 Hex head cap screws (part thread) DIN 6912/DIN 7984 Hexagon socket thin head cap screws
DIN 933 Hex head cap screws (full thread) DIN 7991 Flat head countersunk socket cap screws
DIN 934 Hex nuts DIN 9021 Flat washer

Material Equivalent Grades For Titanium Fasteners
STANDARD WERKSTOFF NR. UNS
Titanium Grade2 3.7035 R50400
Titanium Grade5 3.7165 R56400











Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
