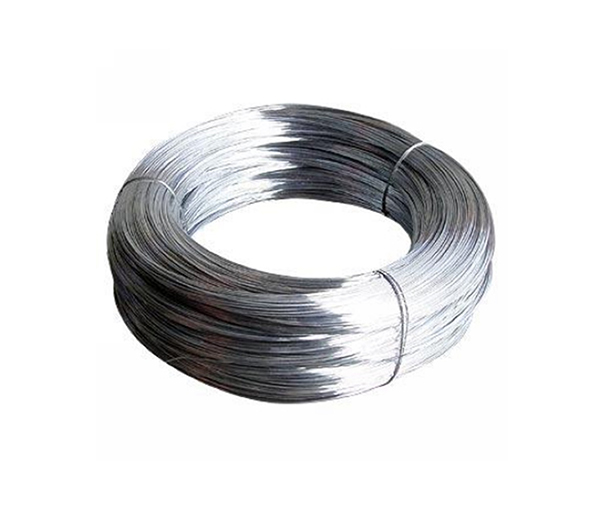

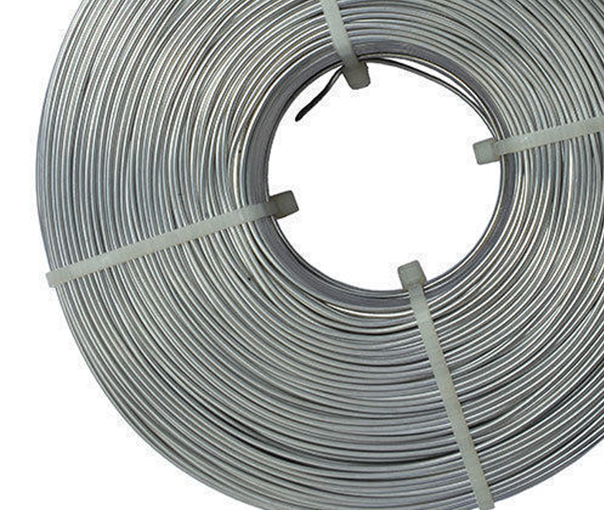

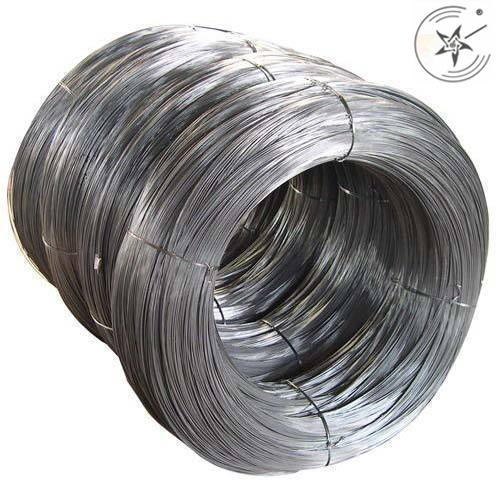

Titanium TITANIUM WIRE SILK

Titanium wire is typically used in the chemical processing industry and anodized for hanging parts or components or when an item requires being tied down.
Tantalum Tungsten wire (Ta2.5W, Ta10W)
Diameter: 0.1~4mm
product introduction
Technical Date
Related Products
Service
Related Projects
Inquiry
product introduction
We could provide tantalum wire of vacuum electron beam melting and powder metallurgy technology, General purpose of tantalum wire was produced by vacuum electron beam melting technology,it has a relatively high purity. Capacitor grade tantalum wire usually was produced by powder metallurgy technology, it contains more special metal elements. Tantalum wire was produced on the basis of tantalum bar. first of all, rolling out the appropriate size of tantalum bar, cleaning the tantalum bar, to remove surface magazine and oil pollution, trimming the tantalum bar and clean again, then through stretching and annealing for many times, eventually get the specifications of customer requirements, through cleaning, straightening, winding, we can get the straight wire or coil. Giant Metal unique method of rolling, stretching process, compression ratio control, annealing temperature and annealing time control could guarantee tantalum wire have excellent mechanical properties, make the surface smooth, clean, no oil, there is no cracks and burrs, no mess around, and observed under 25 times magnification, it have not continuous dents and scratches, have good metallurgical structure, so as to ensure the quality of tantalum wire are better than other companies in the same industry.In addition to provide pure tantalum wire, our company also provide tantalum alloy wire.

Application
Capacitor grade tantalum wire is mainly used for making tantalum electrolytic capacitor anode lead. tantalum wire is the key material to tantalum capacitor, tantalum capacitor is the best capacitor, about 65% of the world’s tantalum used in this field.
Be used to produce tantalum mesh.
Be used to suture to compensate muscle tissue, stitch nerves and tendons, production blood vessels stent, etc.
Be used to produce vacuum high temperature furnace heating components.
Used for vacuum electron emitting cathode source, ion sputtering and coating materials, etc.

Specification
Titanium Wire Diameters and Types
Diameter & Types
Diameter Range Types
mm inch Coil Spool Straight
0.05 to 0.78 0.002 to 0.031 Y Y N
>0.78 to 3.25 >0.031 to 0.128 Y Y Y
> 3.25 to 6.00 > 0.128 to 0.236 Y N Y
Diameter Tolerance: +/-0.05mm (+/-0.002”) or finer. Spools: 100mm – 300mm (3.9” – 12”). Straight Length: 300mm – 3000mm (12” – 118”)
Technical Date
Chemical composition
Composition (%)
Grade Main elements Impurity content (≤)
Ta Nb Fe Si Ni W Mo Ti Nb O C H N
Ta1 Bal 0.005 0.005 0.002 0.01 0.01 0.002 0.03 0.015 0.01 0.0015 0.005
Ta2 Bal 0.03 0.02 0.005 0.04 0.03 0.005 0.1 0.02 0.01 0.0015 0.005
TaNb3 Bal 1.5~3.5 0.03 0.03 0.005 0.04 0.03 0.005 0.02 0.01 0.005 0.01
TaNb20 Bal 17.0~23.0 0.03 0.03 0.005 0.04 0.03 0.005 0.02 0.01 0.005 0.01
TaNb40 Bal 35.0~42.0 0.01 0.005 0.01 0.05 0.02 0.01 0.02 0.01 0.015 0.01
Ta2.5W Bal 0.01 0.005 0.01 2.0

3.5
0.01 0.002 0.1 0.01 0.01 0.0015 0.01
Ta10W Bal 0.01 0.005 0.01 9.0

11.0
0.01 0.002 0.1 0.015 0.01 0.0015 0.

Mechanical properties
Status Tensile strength (Mp) Elongation (%)
Mild 300~750 10~30
Semi-hard 750~1250 1~6
Hard >1250 1~5
TaNb3,TaNb20, the mechanical properties according to the factory measured.

Tolerance (mm)
Diameter Tolerance
0.1~0.2 < 0.005
0.2~0.5 < 0.007
0.5~0.7 < 0.010
0.7~1.5 < 0.015
1.5~2.0 < 0.020
2.0~3.0 < 0.030
3.0~4.0 < 0.040

Antioxidant brittleness
Grade Diameter (mm) Antioxidant brittleness Number of bending (≥)
Ta1 0.10~0.40 3
>0.40 4
Ta2 0.10~0.40 4
>0.40 6
Standard
Grade Specifications
AWS A5.16 ASTM B863 AMS
Commercial Pure Titanium ERTi-1,2,3,4 ASTM B863 Gr1,2,3,4 AMS 4951
ASTM F67 Gr1,2,3,4 AMS 4921
Ti 6Al-4V ERTi-5 ASTM B863 Gr5 AMS 4954
Ti 6Al-4V Eli ERTi-5 Eli ASTM B863 Gr23 AMS 4956
ASTM F136 Eli
Ti 0.2 Pd ERTi-7 ASTM B863 Gr7
Ti 3Al-2.5V ERTi-9 ASTM B863 Gr9
Ti 0.3Mo-0.8Ni ERTi-12 ASTM B863 Gr12











Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
