Welded STEEL PIPE SSAW STEEL PIPE

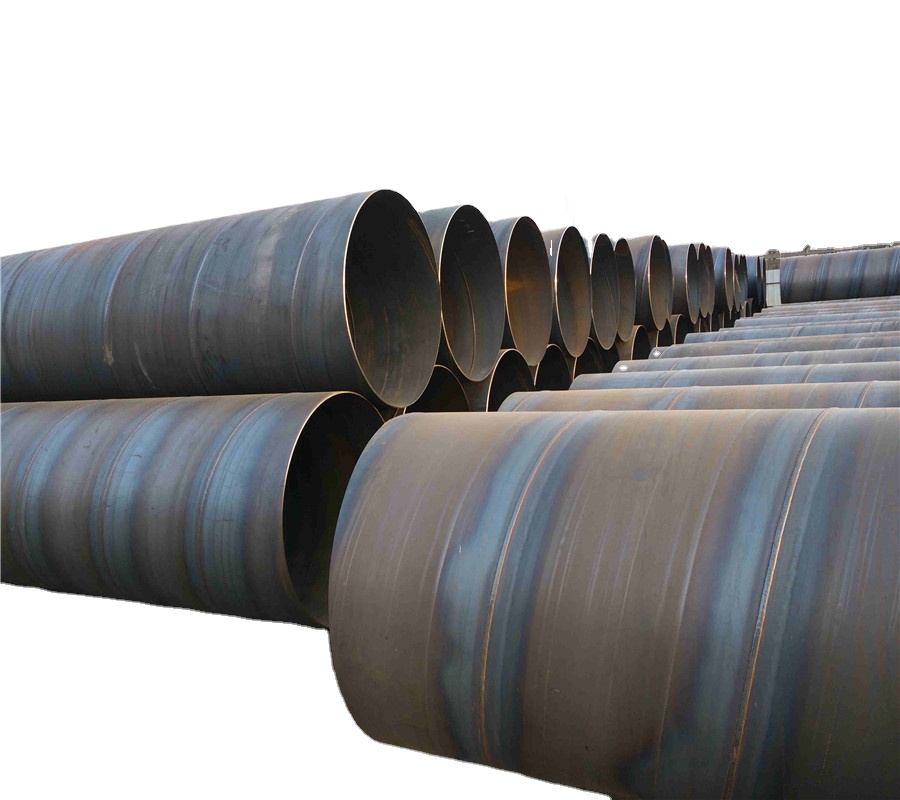

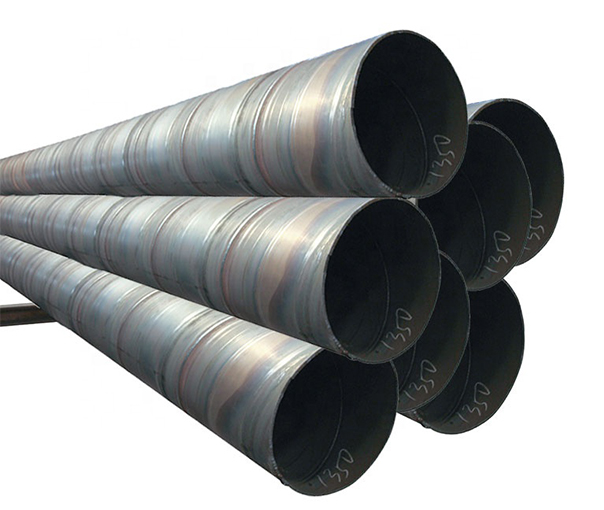

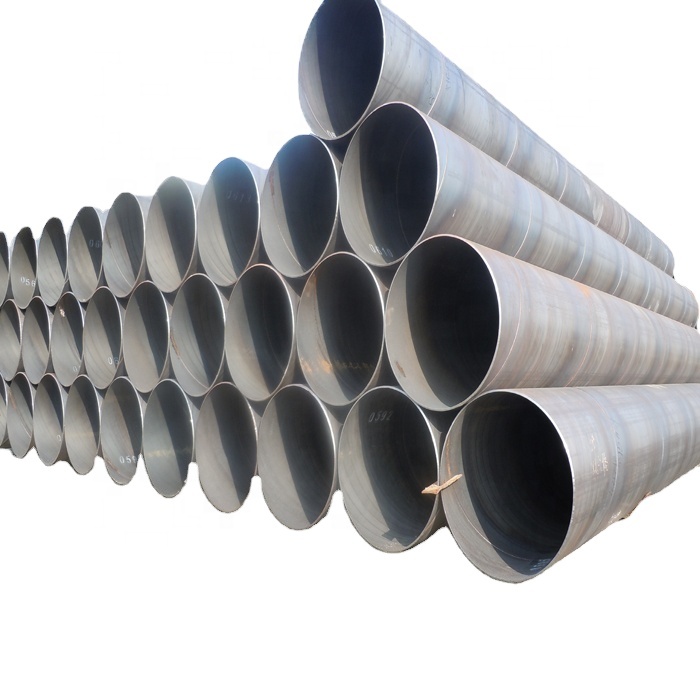

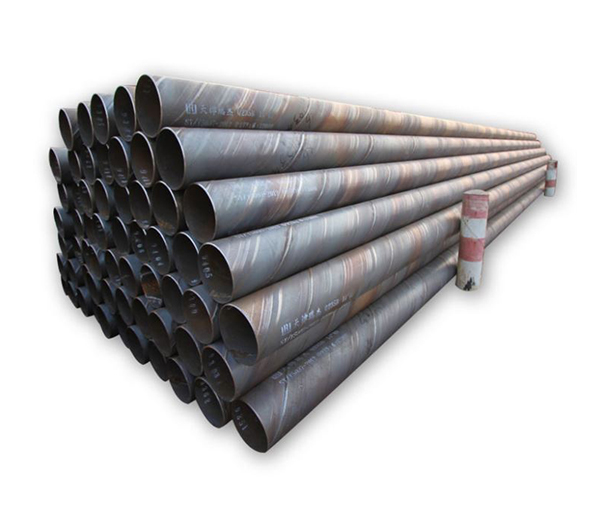

SSAW steel pipe (spiral submerged arc welded steel pipe) is formed by spiral bending of hot-rolled strip steel, and spiral seam steel pipe (also called spiral welded pipe, spiral pipe spiral steel pipe) is formed by automatic welding of submerged arc for inner and outer joints.
SSAW: Spiral Submerged-arc Welded
Payment: TT, LC , OA , D/P
product introduction
Technical Date
Related Products
Service
Related Projects
Inquiry
product introduction
Short Description:

Keywords(pipe type):SSAW Pipe, SSAW Steel Pipe, Spiral Steel Pipe, Welded Spiral Pipe
Size:OD: 219.1mm ~ 3500mm; WT: 6mm ~ 25mm (Up to 1'');LENGTH: 6mtr ~ 18mtr, SRL, DRL
Standard & Grade :ASTM A53 Grade A/B/C, AWWA C200
Ends :Beveled Ends, Square Cut, With LTC/STC/BTC/VAM Connection
Delivery:Within 30 days and Depends on your order quantity
Payment:TT, LC , OA , D/P
Packing:In Bulk, Ends Protector on Both Sides, Waterproof Materials Wrapped
usage:Used for low pressure liquid delivery, such as water, gas, and oil.
Description
SSAW pipe full name is Spiral Submerged arc welding pipe. The pipe is formed by spiral submerged arc welding technology which is called SSAW pipe. Generally speaking, when it comes to the same standard and steel grade, the price of SSAW pipe is cheaper or lower than ERW pipe and LSAW pipe. The strength is higher than the straight seam welded pipe.

SSAW/SAW STEEL PIPES

Usage: Used for low pressure liquid delivery, such as water, gas, and oil.

Process:

SAW(SAWL,SAWH): Spiral Welded

SSAW: Spiral Submerged-arc Welded

Quality Standard:

GB/T3091 Welded steel pipe for low pressure liquid delivery

GB/T9711 Petroleum and natural gas industries–Steel pipe for pipelines

IS: 3589 Steel tubes for water and sewage

IS : 1978-1982:Steel tubes for use in transportation of oil; gas & Petroleum products

ASTM A53 Standard Specification for Pipe, Steel, Black and Hot-Dipped, Zinc-Coated, Welded and Seamless

DIN 2458 WELDED STEEL PIPES AND TUBES

EN10217 Welded steel tubes for pressure purposes. Technical delivery conditions. Non-alloy steel tubes with specified room temperature properties

API 5L Line Pipe

SY/T5037 Spiral submerged arc-welded steel pipe for pipelines for low pressure field fluid service

SY/T 5040 Spiral submerged arc-welded steel pipe piles

CJ/T 3022 Spiral submerged-arc welded steel pipe for municipal heat supply

IS : 1978 Steel tubes for use in transportation of oil; gas & Petroleum products

ASTM A252 WELDED AND SEAMLESS STEEL PIPE PILES

Coating Standard:

ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for Ductile-Iron Pipe and Fittings for Water

ISO 21809 Petroleum and natural gas industries — External coatings for buried or submerged pipelines used in pipeline transportation systems

DIN 30670 Polyethylen coatings of steel pipes and fittings

Steel Grade:

BS:1387, EN10217:S185, S235,S235JR, S235 G2H, S275, S275JR, S355JRH, S355J2H, St12, St13, St14, St33, St37, St44, ST52

ASTM A 53: Gr. A, Gr B, Gr C, Gr.D

API 5L: A, B, X42, X46, X52, X56, X60, X65 X70

GB/T9711: L175, L210, L245, L290, L320, L360, L290, L320, L360, L390, L415, L450, L485, L555

GB/T3091, SY/T5037, SY/T 5040,CJ/T 3022:Q195, Q215, Q235, Q275, Q295, Q345, 08F, 08, 08AL, 08F, 10F, 10, HG5, DF08 SPHC, M8

Size:

SAW SSAW:

Outer Diamter: 219.1mm – 4064mm (8″ – 160″)

Wall Thickness: 3.2 mm – 40mm

Length: 6mtr-18mtr

End:square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,? Fusion Bond Epoxy, 3-layers PE)

Packing:Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield

strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.

Mill Test Certificate:EN 10204/3.1B

Third party inspection:SGS, BV, Lloyds etc.

Technical Date
Chemical Analysis and Mechanical Properties of SSAW Steel Pipe
Standard Grade Chemical Composition(max)% Mechanical Properties(min)
C Si Mn P S Tensile Strength(Mpa) Yield Strength(Mpa)
API 5CT h40 - - - - 0.030 417 417
J55 - - - - 0.030 517 517
K55 - - - - 0.300 655 655
API 5L PSL1 A 0.22 - 0.90 0.030 0.030 335 335
B 0.26 - 1.20 0.030 0.030 415 415
X42 0.26 - 1.30 0.030 0.030 415 415
X46 0.26 - 1.40 0.030 0.030 435 435
X52 0.26 - 1.40 0.030 0.030 460 460
X56 0.26 - 1.40 0.030 0.030 490 490
X60 0.26 - 1.40 0.030 0.030 520 520
X65 0.26 - 1.45 0.030 0.030 535 535
X70 0.26 - 1.65 0.030 0.030 570 570
API 5L PSL2 B 0.22 0.45 1.20 0.025 0.015 415 415
X42 0.22 0.45 1.30 0.025 0.015 415 415
X46 0.22 0.45 1.40 0.025 0.015 435 435
X52 0.22 0.45 1.40 0.025 0.015 460 460
X56 0.22 0.45 1.40 0.025 0.015 490 490
X60 0.12 0.45 1.60 0.025 0.015 520 520
X65 0.12 0.45 1.60 0.025 0.015 535 535
X70 0.12 0.45 1.70 0.025 0.015 570 570
X80 0.12 0.45 1.85 0.025 0.015 625 625
ASTM A53 A 0.25 0.10 0.95 0.050 0.045 330 330
B 0.30 0.10 1.20 0.050 0.045 415 415
ASTM A252 1 - - - 0.050 - 345 345
2 - - - 0.050 - 414 414
3 - - - 0.050 - 455 455
EN10217-1 P195TR1 0.13 0.35 0.70 0.025 0.020 320 320
P195TR2 0.13 0.35 0.70 0.025 0.020 320 320
P235TR1 0.16 0.35 1.20 0.025 0.020 360 360
P235TR2 0.16 0.35 1.20 0.025 0.020 360 360
P265TR1 0.20 0.40 1.40 0.025 0.020 410 410
P265TR2 0.20 0.40 1.40 0.025 0.020 410 410
EN10217-2 P195GH 0.13 0.35 0.70 0.025 0.020 320 320
P235GH 0.16 0.35 1.20 0.025 0.020 360 360
P265GH 0.20 0.40 1.40 0.025 0.020 410 410
EN10217-5 P235GH 0.16 0.35 1.20 0.025 0.020 360 360
P265GH 0.20 0.40 1.40 0.025 0.020 410 410
EN10219-1 S235JRH 0.17 - 1.40 0.040 0.040 360 360
S275JOH 0.20 - 1.50 0.035 0.035 410 410
S275J2H 0.20 - 1.50 0.030 0.030 410 410
S355JOH 0.22 0.55 1.60 0.035 0.035 470 470
S355J2H 0.22 0.55 1.60 0.030 0.030 470 470
S355K2H 0.22 0.55 1.60 0.030 0.030 470 470

Machine of manufacturing ssaw steel pipe
Edge planing machine, edge milling machine, pipe cutting machine,butt welding machine, pinching machine, hydraulic testing machine.

Standard
Standard
Standard and Classfication
Classfication Standard Main Products
Steel Pipe for Fluid Service GB/T 14291 Welded pipe for mine fluid sevice
GB/T 3091 Welded pipe for low pressure fluid service
SY/T 5037 Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service
ASTM A53 Black and hot-hipped galvanized welded and seamless steel pipe
BS EN10217-2 Welded steel tybes for pressure purposes – delivery technical conditions – part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties
BS EN10217-5 Welded steel tybes for pressure purposes – delivery technical conditions – part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Pipe for Ordinary Structure GB/T 13793 Longitudinally electric resistance welded steel pipe
SY/T 5040 Spirally submerged arc welded steel pipe piles
ASTM A252 Welded and seamless steel pipe piles
BS EN10219-1 Cold formed welded structural hollow sections of non-alloy and fine grain steels – part1: Technical delivert conditions
BS EN10219-2 Cold formed welded structural hollow sections of non-alloy and fine grain steels – part2: tolerances dimmsions and sectional properties
Line Pipe GB/T 9711.1 Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe)
GB/T 9711.2 Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe)
API 5L PSL1/2 Line pipe
Casing API 5CT Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries
Painting & Coating
End: Square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy, Fusion Bond Epoxy, 3-layers PE)

Bare, Lightly Oiling, Black Painting, Anti-corrosion Coating(FBE/2PE/3PE)
Packing & Loading
Packaging of SSAW Steel Pipe

According to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

To meet the entirety of our customers business needs, We offers its services as a “One-Stop Shop” for business services including Purchasing, Value-Added Manufacturing, Packaging/Labeling, and Delivery.

Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.











Related Products
Service
Certification and testing as per clients need
Third party inspections and approval
Inventory management as per clients
Logistics arrangement for client to help in cost cutting
